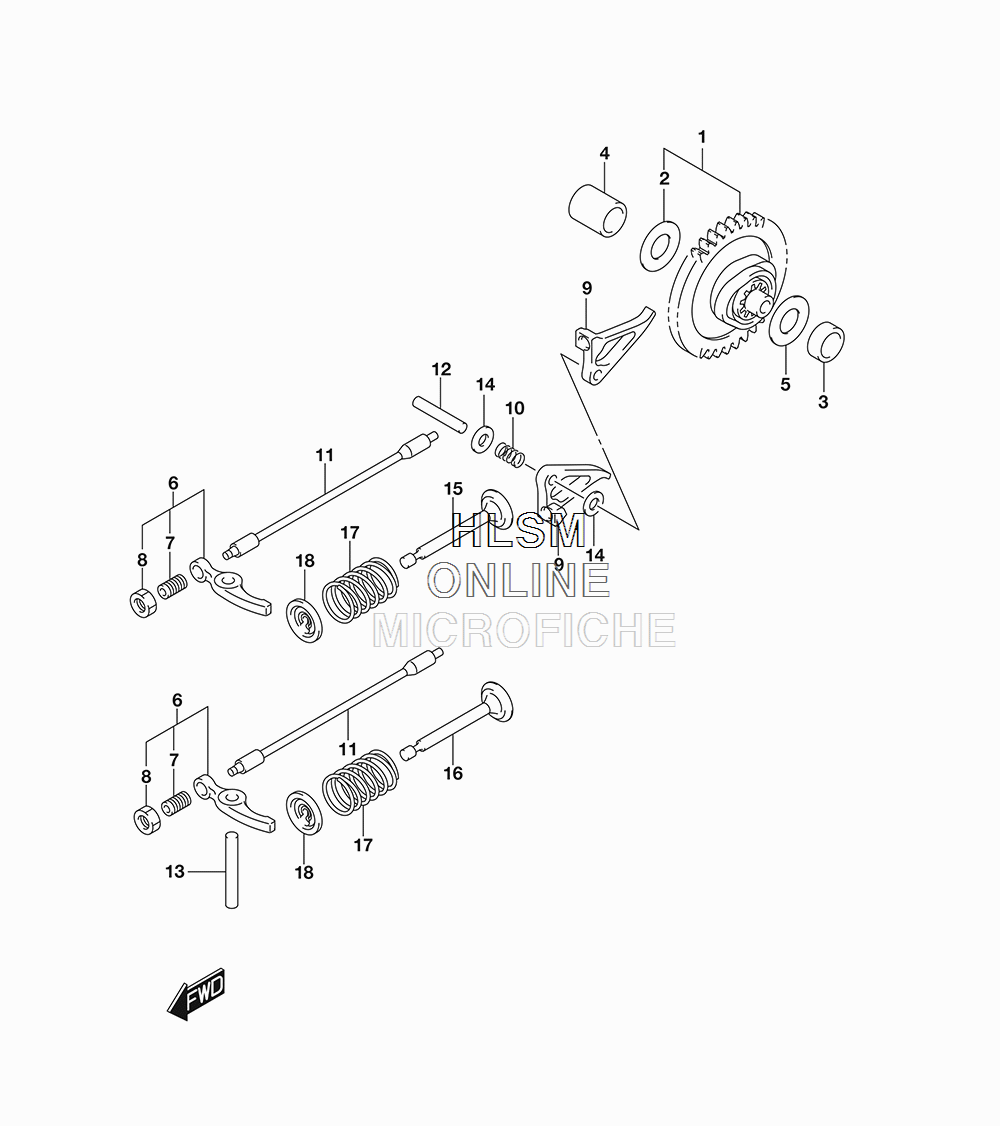

CAM SHAFT - W/ VALVES для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
112700-43G00 CAMSHAFT ASSYCAMSHAFT ASSY
-
212713-22G00 ...WASHER, CAMSHAFT...WASHER, CAMSHAFT
-
309300-09001 BUSHBUSH
-
409300-09002 BUSHBUSH
-
508221-10204 SHIMSHIM
-
612840-22G20 ARM, VALVE ROCKERARM, VALVE ROCKER
-
712842-22G20 ...SCREW, TAPPET ADJUSTING...SCREW, TAPPET ADJUSTING
-
812843-33G40 ...NUT, TAPPET ADJUSTING...NUT, TAPPET ADJUSTING
-
912845-22G10 ARM, CAM ROCKERARM, CAM ROCKER
-
1012847-22G00 SPRING, CAM ROCKER ARMSPRING, CAM ROCKER ARM
-
1112890-43G00 ROD, PUSHROD, PUSH
-
1209261-04005 ROLLERROLLER
-
1309261-04015 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1408322-0104B WASHERWASHER
-
1512911-22G00 VALVE, INTAKEVALVE, INTAKE
-
1612912-22G00 VALVE, EXHAUSTVALVE, EXHAUST
-
1712921-22G00 SPRING, VALVESPRING, VALVE
