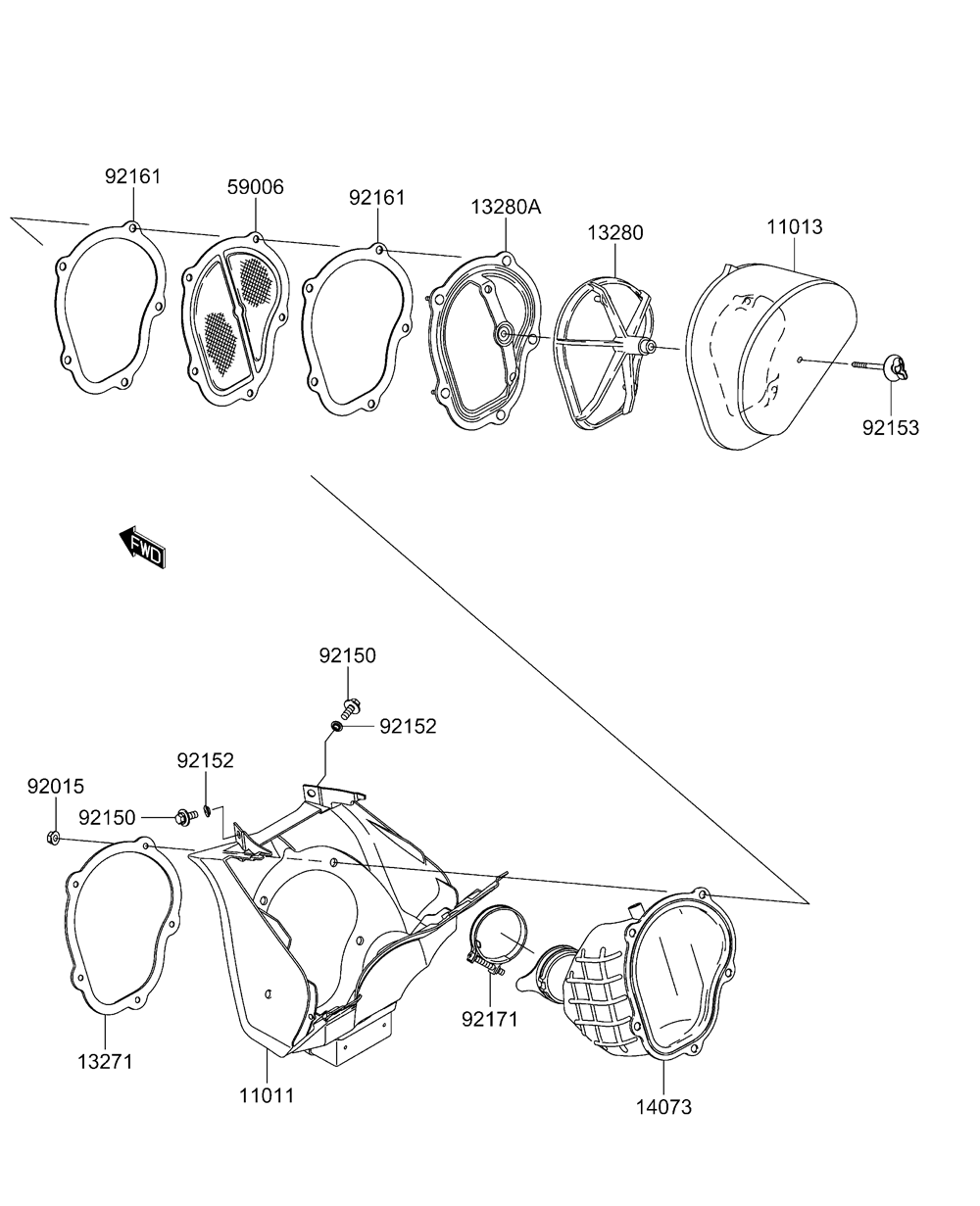

AIR CLEANER для Suzuki RM-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
11011K1101-10045 CASE-AIR FILTERCASE-AIR FILTER
-
11013K1101-30008 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
13271K1327-10059 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
13280K1328-00057 HOLDER, ELEMENTHOLDER, ELEMENT
-
13280AK1328-00058 HOLDERHOLDER
-
14073K1407-30024 DUCT, AIR FILTERDUCT, AIR FILTER
-
59006K5900-60005 ARRESTER-FLAMEARRESTER-FLAME
-
92015K9201-51259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92150K9215-01506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92152K9215-20250 COLLARCOLLAR
-
92153K9215-30623 BOLT, 6X75BOLT, 6X75
-
92161K9216-10025 DAMPERDAMPER
-
92171K9217-10087 CLAMP, CARBURETOR-DUCTCLAMP, CARBURETOR-DUCT
