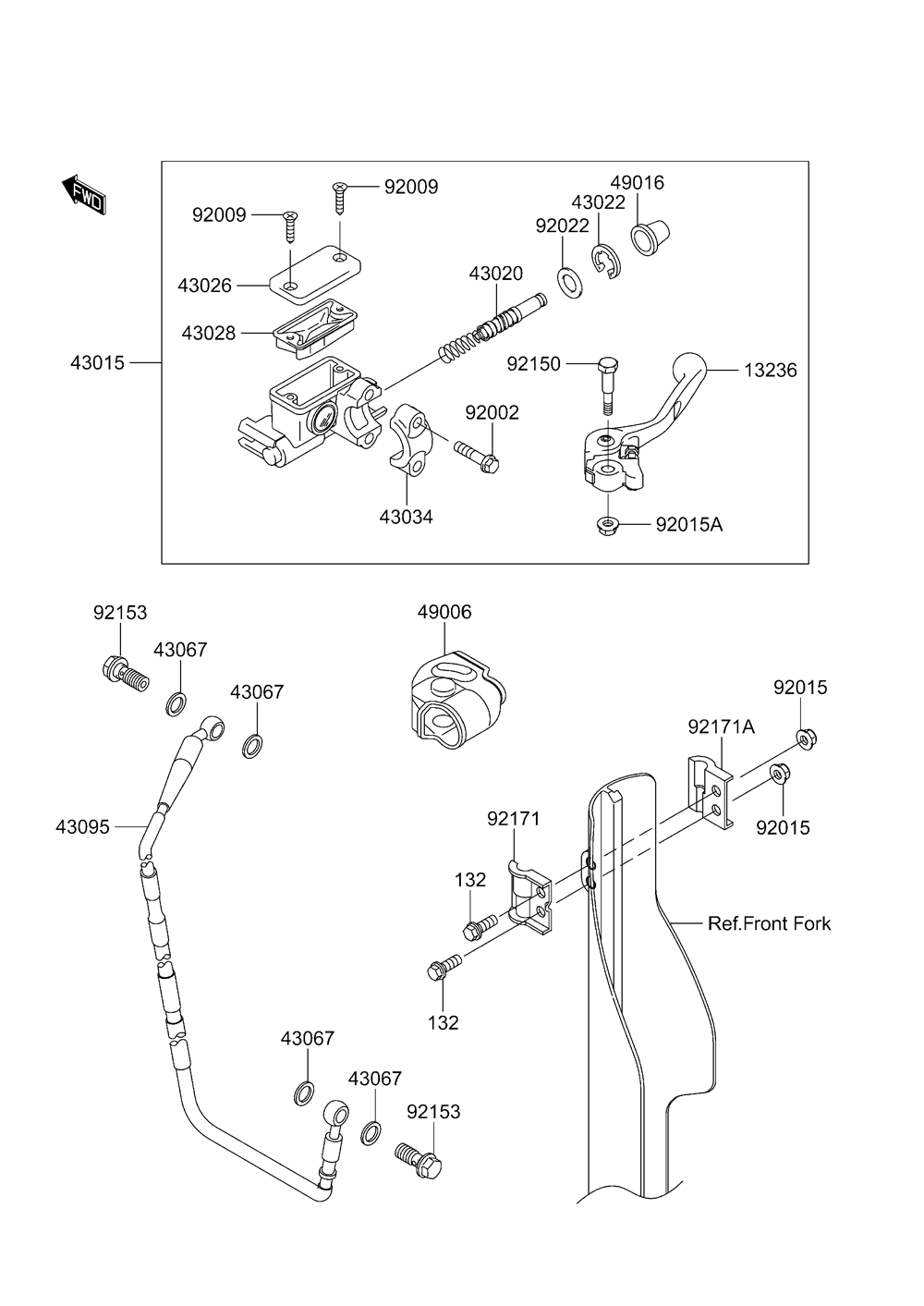

BRAKE - FRONT MASTER CYLINDER для Suzuki RM-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
13236K1323-60070 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
43015K4301-50041 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
43020K4302-01123 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
43022K4302-21010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
43026K4302-61075 CAP-BRAKECAP-BRAKE
-
43028K4302-81067 DIAPHRAGMDIAPHRAGM
-
43034K4303-41110 HOLDER-BRAKEHOLDER-BRAKE
-
43067KK430-67001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
43095K4309-50060 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
49006K4900-61344 BOOT, FRONT BRAKE LEVERBOOT, FRONT BRAKE LEVER
-
49016K4901-61044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
92002K9200-21894 BOLTBOLT
-
92009K9200-91458 SCREW, 4MMSCREW, 4MM
-
92015K9201-51339 NUT, LOCK,FLANGED, 6MMNUT, LOCK,FLANGED, 6MM
-
92015AK9201-51528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92022K9202-21814 WASHERWASHER
-
92150K9215-01451 BOLT, LEVER SETBOLT, LEVER SET
-
92153K9215-30627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92171K9217-10235 CLAMP, BRAKE HOSE, OUTSIDECLAMP, BRAKE HOSE, OUTSIDE
-
92171AK9217-10291 CLAMP, BRAKE HOSE, INSIDECLAMP, BRAKE HOSE, INSIDE
-
132KK132-G0616 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
