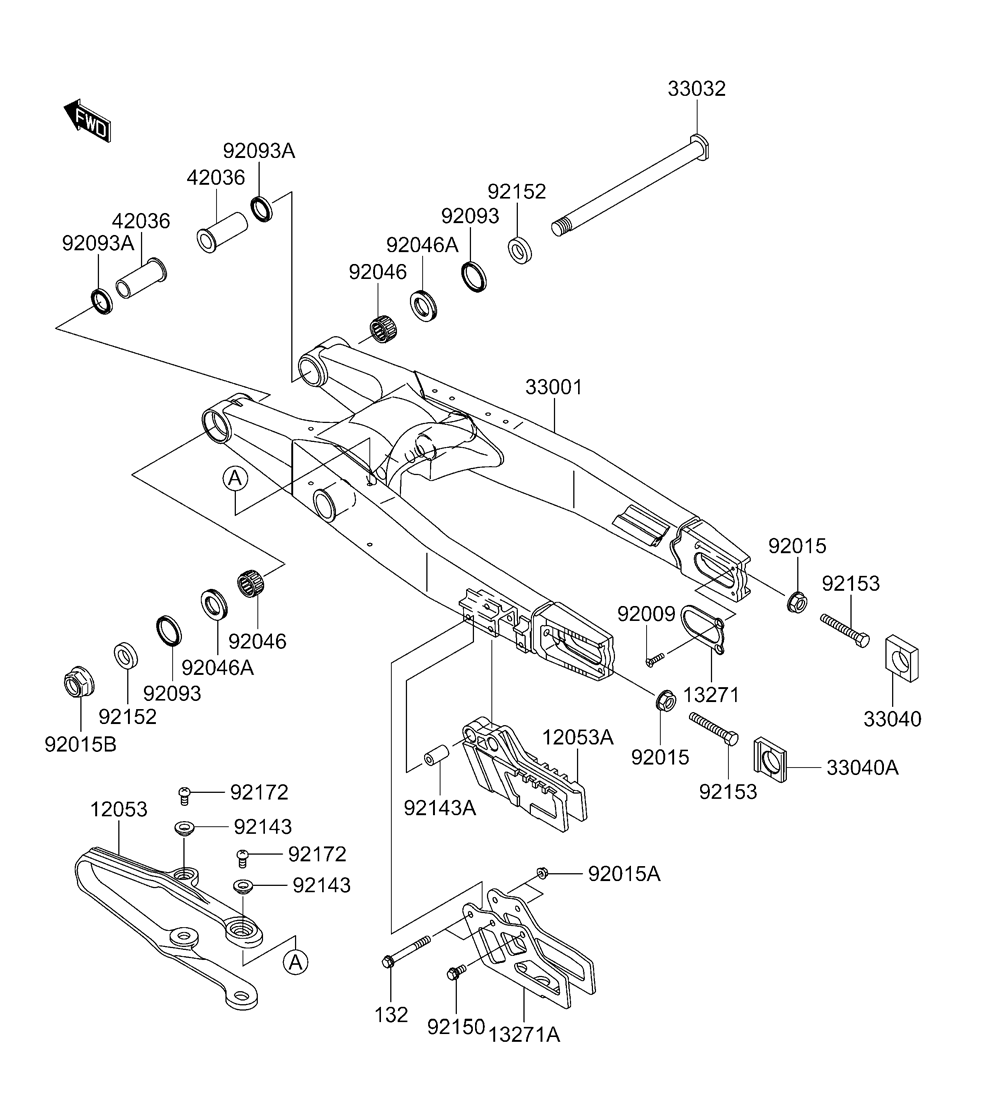

SUSPENSION - REAR SWING ARM для Suzuki RM-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
12053K1205-30019 GUIDE-CHAIN, DRIVE, FRONTGUIDE-CHAIN, DRIVE, FRONT
-
12053AK1205-31468 GUIDE-CHAINGUIDE-CHAIN
-
13271K1327-11833 PLATE, AXLEPLATE, AXLE
-
13271AK1327-11834 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
33001KK330-01005-7CE ARM-COMP-SWING, SILVERARM-COMP-SWING, SILVER
-
33032K3303-21189 SHAFT-SWING ARMSHAFT-SWING ARM
-
33040K3304-00013 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
33040AK3304-01189 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
42036K4203-60003 SLEEVE, SWING ARM, L=46SLEEVE, SWING ARM, L=46
-
92009K9200-91828 SCREW, 5X10SCREW, 5X10
-
92015K9201-51014 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015AK9201-51078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015BK9201-51316 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
92046K9204-61174 BEARING-NEEDLE, TA2230ZBEARING-NEEDLE, TA2230Z
-
92046AK9204-61240 BEARING-NEEDLE, NTBR22356E01BEARING-NEEDLE, NTBR22356E01
-
92093K9209-31434 SEAL, SDO29X35X4.5SEAL, SDO29X35X4.5
-
92093AK9209-31435 SEAL, SDO22X29X5SEAL, SDO22X29X5
-
92143K9214-31676 COLLARCOLLAR
-
92143AK9214-31867 COLLAR, 6.5X14X24COLLAR, 6.5X14X24
-
92150K9215-01599 BOLT, 6X12BOLT, 6X12
-
92152K9215-21137 COLLAR, 17.1X29X7.5COLLAR, 17.1X29X7.5
-
92153K9215-30620 BOLT, 8X56BOLT, 8X56
-
92172K9217-20119 SCREW, 5X8SCREW, 5X8
-
132KK132-V0650 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
