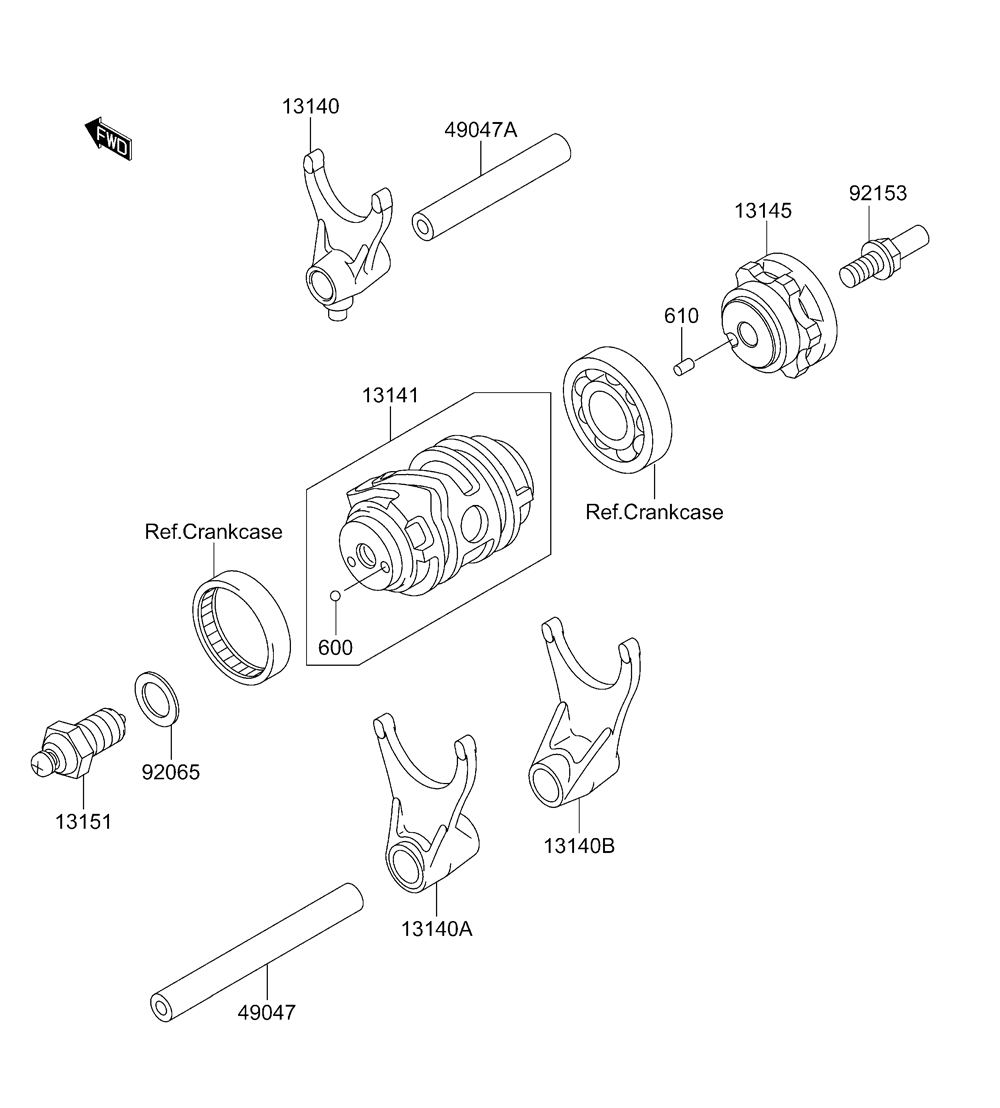

GEAR CHANGE DRUM/SHIFT FORK для Suzuki RM-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
13140K1314-00003 FORK-SHIFT, INFORK-SHIFT, IN
-
13140AK1314-00004 FORK-SHIFT, OUT LEFT HANDFORK-SHIFT, OUT LEFT HAND
-
13140BK1314-00013 FORK-SHIFT, OUT, RIGHT HANDFORK-SHIFT, OUT, RIGHT HAND
-
13141K1314-10002 DRUM-CHANGEDRUM-CHANGE
-
13145K1314-50005 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
13151K1315-10006 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
49047K4904-70003 ROD-SHIFT, OUTPUT, L=94.5ROD-SHIFT, OUTPUT, L=94.5
-
49047AK4904-70004 ROD-SHIFT, INPUT, L=63ROD-SHIFT, INPUT, L=63
-
92065KK920-65058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
92153K9215-30530 BOLT, 8X20BOLT, 8X20
-
600KK600-A0700 BALL-STEEL, 7/32''BALL-STEEL, 7/32''
-
610KK610-A0408 ROLLER, 4X8ROLLER, 4X8
