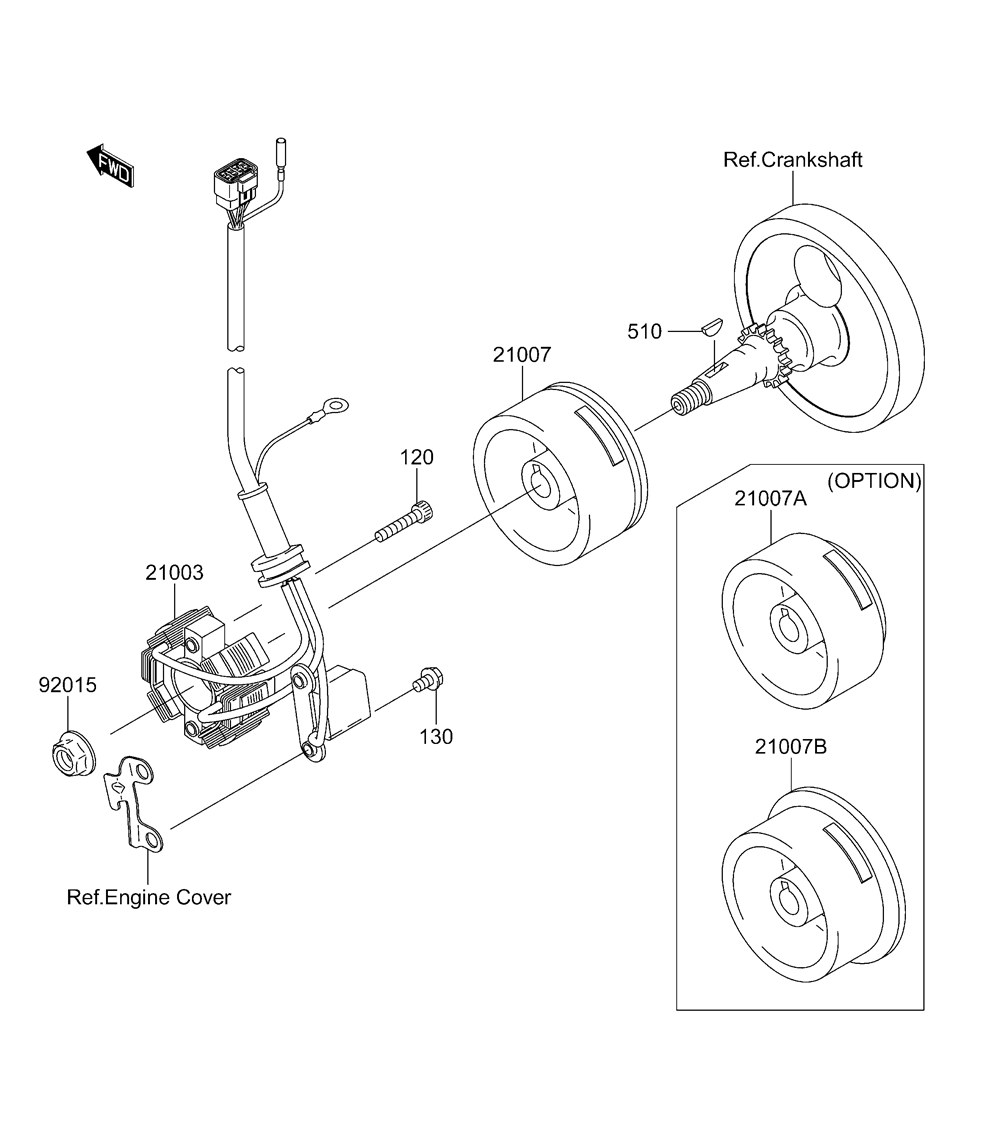

GENERATOR для Suzuki RM-Z250K5 - 2005 года выпуска
-
№АртикулНазвание
-
21003K2100-30027 STATORSTATOR
-
21007K2100-70048 ROTOR, I=4.1ROTOR, I=4.1
-
21007AK2100-70049 ROTOR, I=3.6ROTOR, I=3.6
-
21007BK2100-70050 ROTOR, I=4.8ROTOR, I=4.8
-
92015K9201-51428 NUT, FLANGED,10MMNUT, FLANGED,10MM
-
120KK120-P0525 BOLT-SOCKETBOLT-SOCKET
-
130KK130-P0510 BOLT-FLANGEDBOLT-FLANGED
-
510KK510-A3200 KEY-WOODRUFFKEY-WOODRUFF
