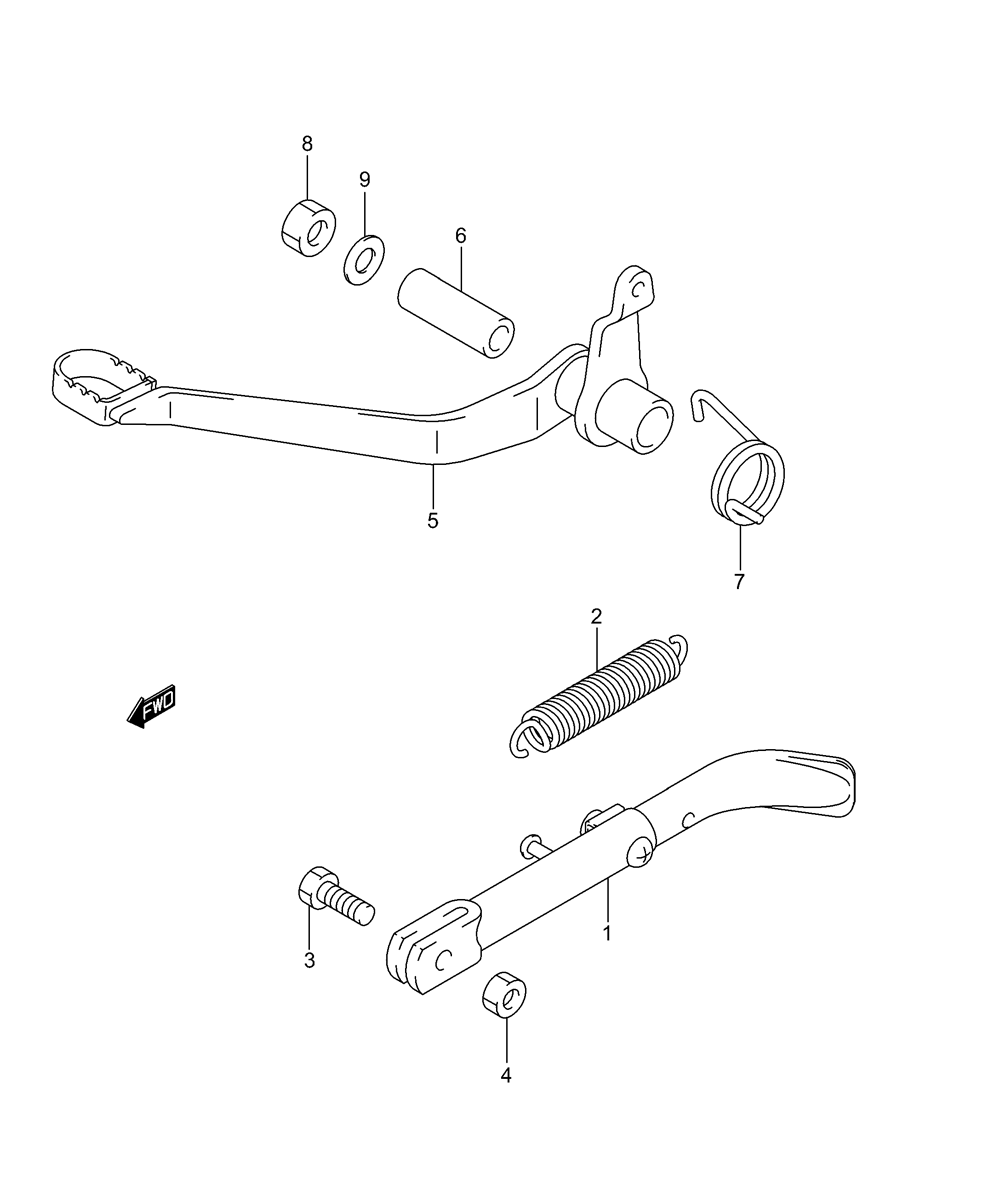

BRAKE PEDAL для Suzuki JR50K6 - 2006 года выпуска
-
№АртикулНазвание
-
142300-04420-019 STAND, PROPSTAND, PROP
-
209443-14017 SPRINGSPRING
-
309100-08274 BOLT (8X22)BOLT (8X22)
-
408310-00083 NUTNUT
-
543110-04410 PEDAL, BRAKEPEDAL, BRAKE
-
643181-04411 SPACERSPACER
-
743182-04410 SPRINGSPRING
-
809159-10093 NUTNUT
-
909160-10119 WASHERWASHER
