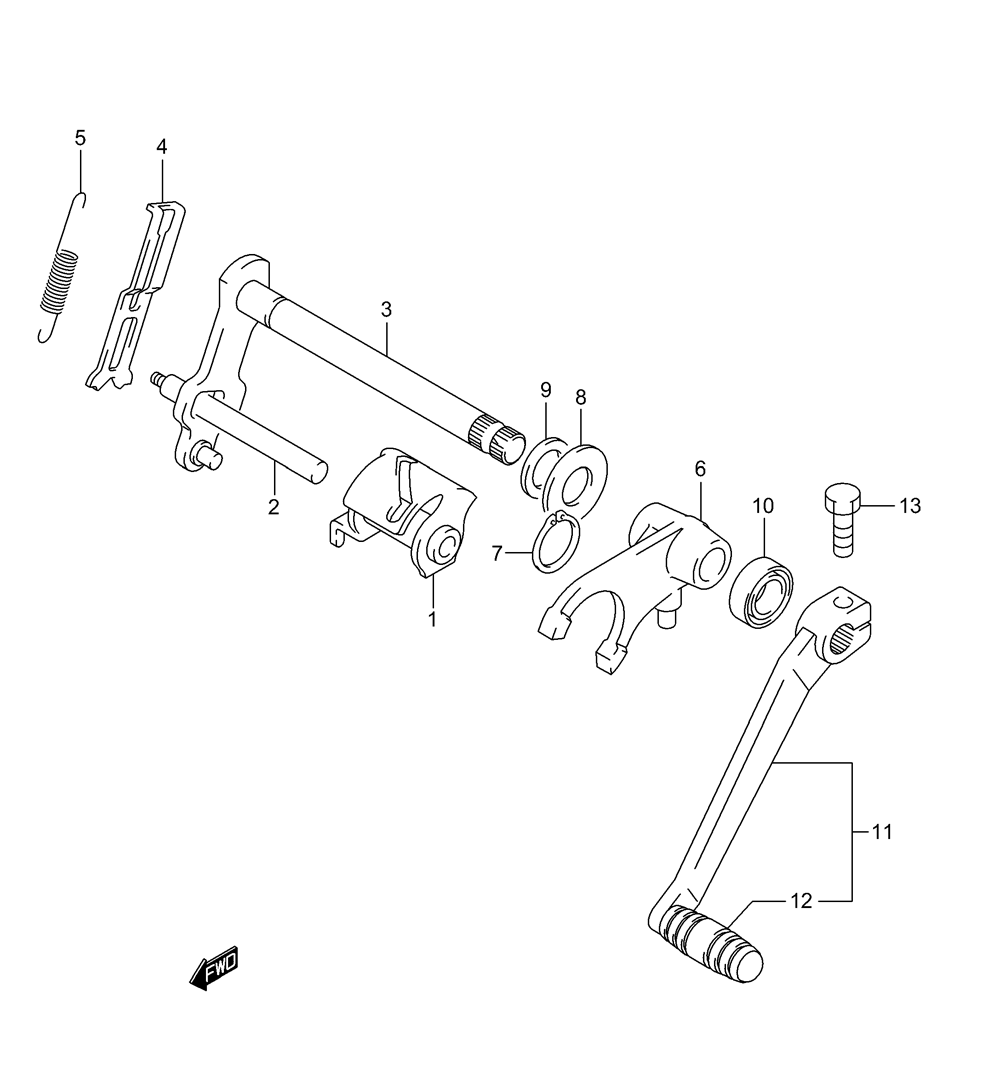

GEAR SHIFTING для Suzuki JR50K6 - 2006 года выпуска
-
№АртикулНазвание
-
125310-04001 CAM, GEAR SHIFTINGCAM, GEAR SHIFTING
-
225411-04000 SHAFT, CAMSHAFT, CAM
-
325510-04401 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
425352-04000 ARM, CAM STOPPERARM, CAM STOPPER
-
509443-08008 SPRINGSPRING
-
625211-04010 FORK, GEAR SHIFTINGFORK, GEAR SHIFTING
-
708331-31126 CIRCLIPCIRCLIP
-
808211-12261 WASHERWASHER
-
908211-12205 WASHERWASHER
-
1009285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
1125600-29300 LEVER ASSY, GEAR SHIFTINGLEVER ASSY, GEAR SHIFTING
-
1225652-16500 RUBBERRUBBER
-
1301500-06203 BOLTBOLT
