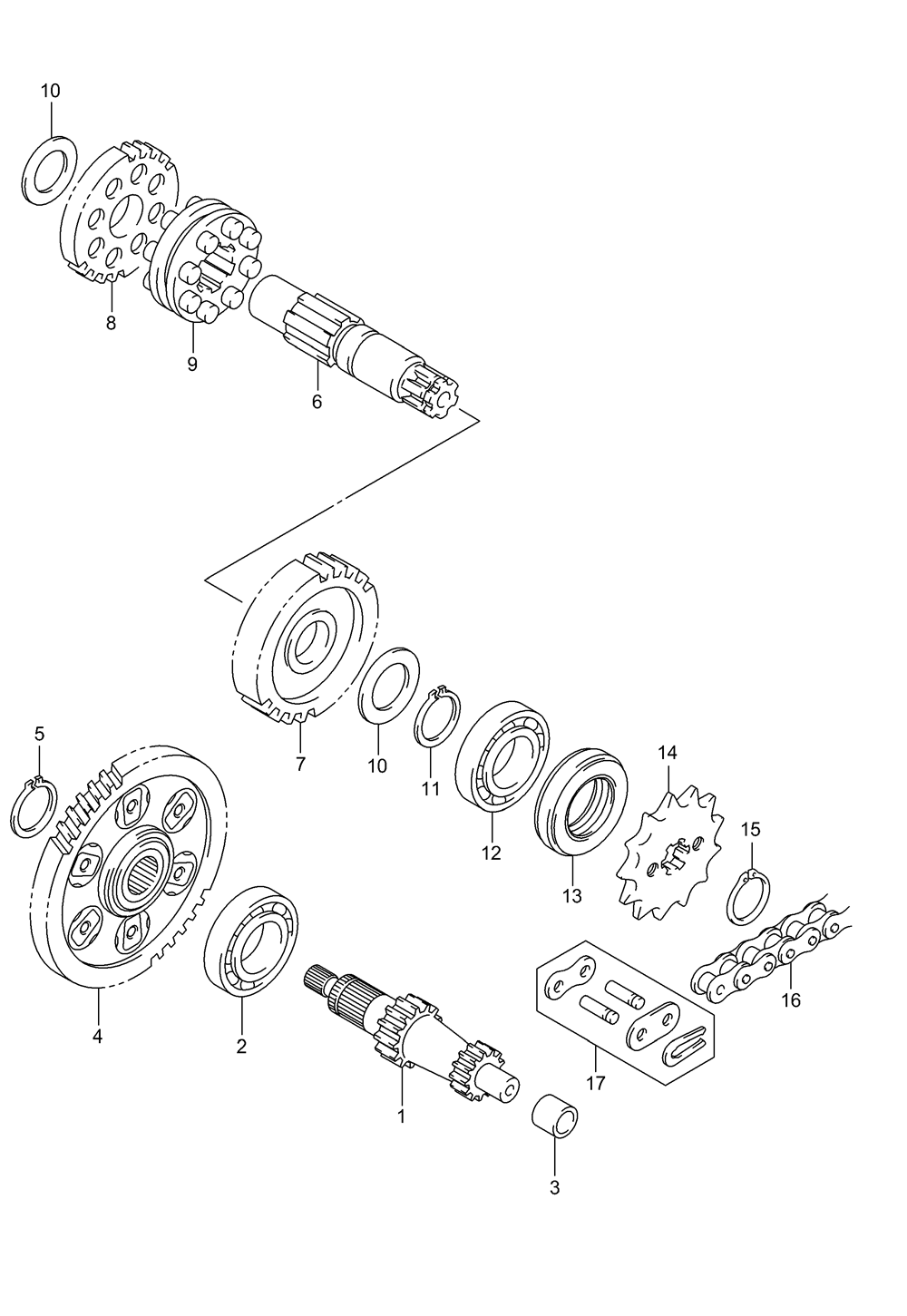

TRANSMISSION для Suzuki JR50K6 - 2006 года выпуска
-
№АртикулНазвание
-
124121-04011 COUNTERSHAFT (NT:10/13)COUNTERSHAFT (NT:10/13)
-
209262-17023 BEARING (17X40X12)BEARING (17X40X12)
-
309304-10005 BUSHBUSH
-
421200-04501 GEAR, PRIMARY DRIVEN (NT:53)GEAR, PRIMARY DRIVEN (NT:53)
-
509380-17003 CIRCLIPCIRCLIP
-
624131-04001 DRIVE SHAFTDRIVE SHAFT
-
724311-04002 GEAR, 1ST DRIVEN (NT:40)GEAR, 1ST DRIVEN (NT:40)
-
824321-04011 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
924411-04003 WHEEL, SLIDINGWHEEL, SLIDING
-
1009181-17223 WASHER (17X30X1.0)WASHER (17X30X1.0)
-
1109380-17003 CIRCLIP, 2ND DRIVENCIRCLIP, 2ND DRIVEN
-
1209262-17023 BEARING (17X40X12)BEARING (17X40X12)
-
1309283-17010 OIL SEAL (17X29X7)OIL SEAL (17X29X7)
-
1427511-19000 SPROCKET, ENGINE (NT:13)SPROCKET, ENGINE (NT:13)
-
1508331-31166 CIRCLIPCIRCLIP
-
1627600-01011-078 CHAIN, DRIVE (DID420X78L)CHAIN, DRIVE (DID420X78L)
-
1727620-01012 JOINT (DID)JOINT (DID)
