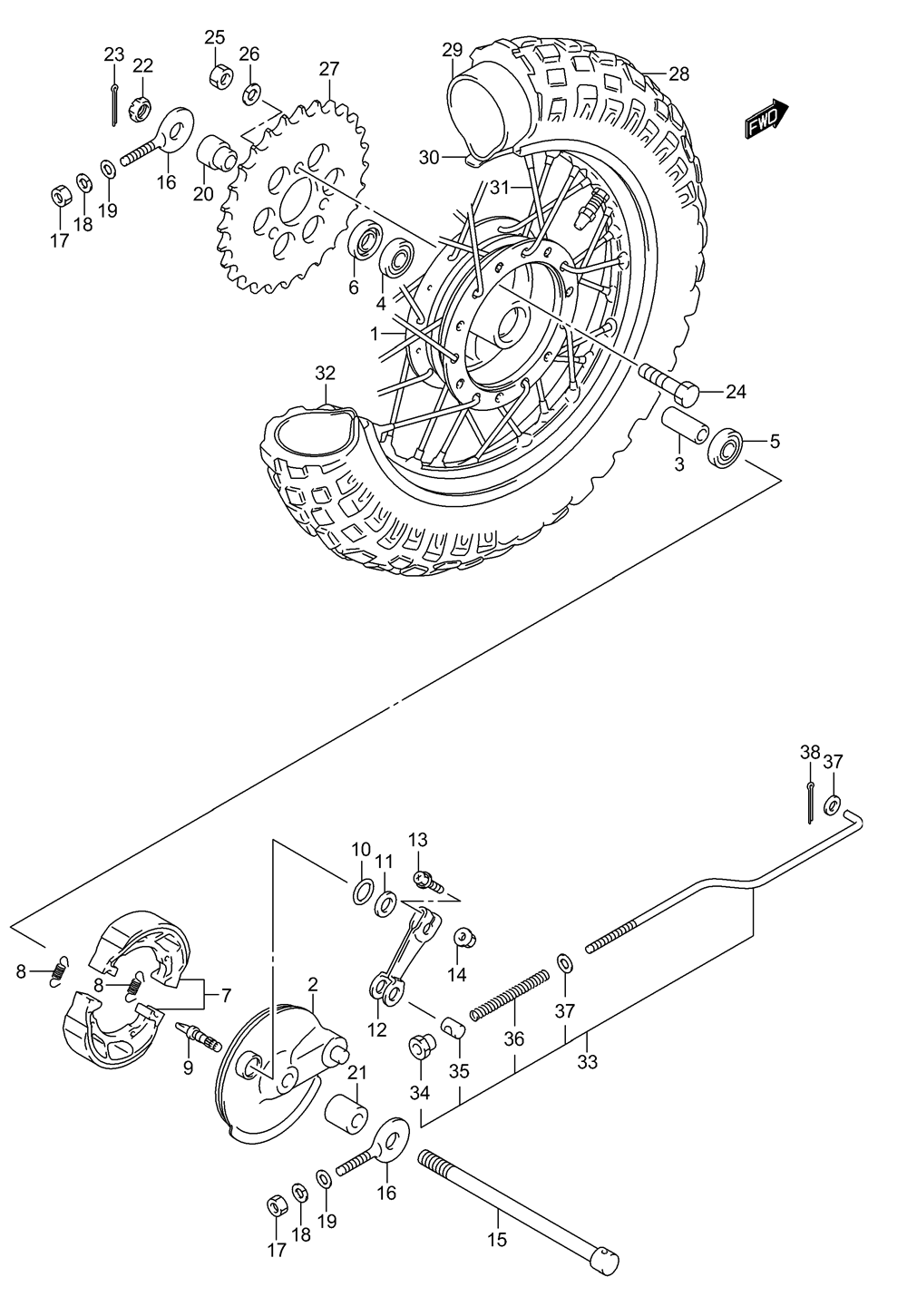

WHEEL - REAR для Suzuki JR50K6 - 2006 года выпуска
-
№АртикулНазвание
-
164110-04400 HUB, REAR WHEELHUB, REAR WHEEL
-
264210-04400 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
309180-10149 SPACER (10.2X16X55)SPACER (10.2X16X55)
-
409262-10015 BEARING, LEFT HANDBEARING, LEFT HAND
-
508143-60007 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
609284-15004 OIL SEAL (15X27X6)OIL SEAL (15X27X6)
-
764400-04811 SHOE SET, BRAKESHOE SET, BRAKE
-
809443-07025 SPRINGSPRING
-
954441-04001 CAM, BRAKECAM, BRAKE
-
1009280-10006 O RINGO RING
-
1109160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
1264451-04000 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1302162-05303 SCREWSCREW
-
1408316-10053 NUTNUT
-
1554711-04410 AXLE, REARAXLE, REAR
-
1661411-04000 ADJUSTER, CHAINADJUSTER, CHAIN
-
1708310-00063 NUTNUT
-
1808321-01063 LOCK WASHERLOCK WASHER
-
1908322-01063 WASHERWASHER
-
2064751-04410 SPACER, LEFT HAND (L:22)SPACER, LEFT HAND (L:22)
-
2164741-04410 SPACER, RIGHT HAND (10X20X21)SPACER, RIGHT HAND (10X20X21)
-
2209141-10006 NUTNUT
-
2304111-20208 COTTER PINCOTTER PIN
-
2409105-08011 BOLT (8X36)BOLT (8X36)
-
2508310-00083 NUTNUT
-
2609162-08008 LOCK WASHERLOCK WASHER
-
2764511-04411 SPROCKET, REAR (NT:28)SPROCKET, REAR (NT:28)
-
2855100-04410 TIRE, REAR (2.50-10)TIRE, REAR (2.50-10)
-
2955200-04410 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
3055261-04410 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
3155300-04820 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
3255311-04410 RIM, WHEEL (1.40X10)RIM, WHEEL (1.40X10)
-
3343300-04410 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
3409150-05003 NUTNUT
-
3509209-10001 PINPIN
-
3609440-09004 SPRINGSPRING
-
3708322-01053 WASHERWASHER
-
3804111-20158 COTTER PINCOTTER PIN
