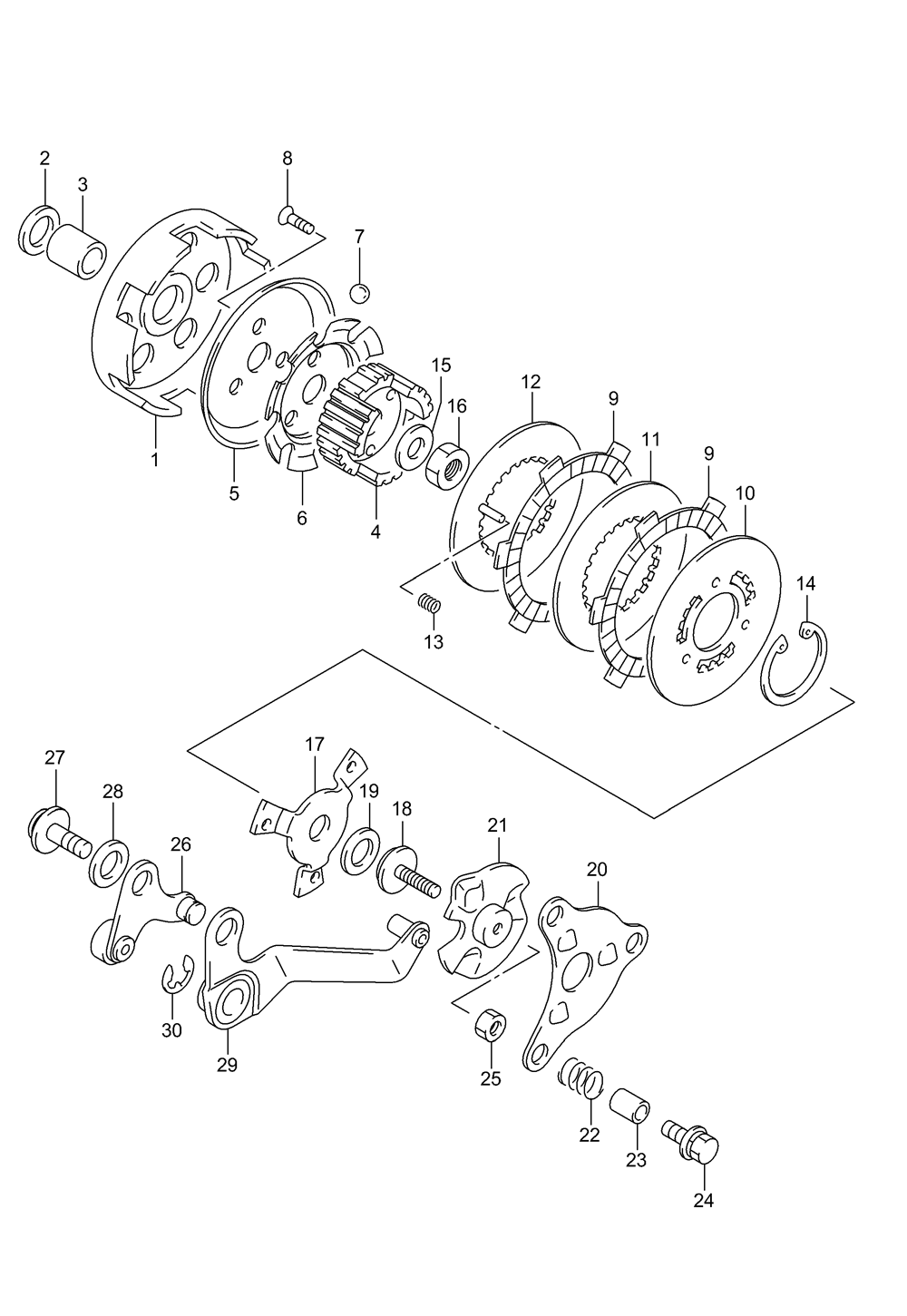

CLUTCH для Suzuki JR50K6 - 2006 года выпуска
-
№АртикулНазвание
-
21110-04400 GEAR, PRIMARY DRIVE (NT:20)GEAR, PRIMARY DRIVE (NT:20)
-
209160-14012 WASHER (14X24X3)WASHER (14X24X3)
-
309180-14003 SPACER (14X19X18)SPACER (14X19X18)
-
421411-04400 HUB, SLEEVEHUB, SLEEVE
-
521431-04400 PLATE, BALLPLATE, BALL
-
621631-04400 GUIDE, BALLGUIDE, BALL
-
706111-12004 BALLBALL
-
802122-06163 SCREWSCREW
-
921441-09D02 PLATE, DRIVEPLATE, DRIVE
-
1021451-04400 PLATE, DRIVEN OUTERPLATE, DRIVEN OUTER
-
1121452-04400 PLATE, DRIVENPLATE, DRIVEN
-
1221454-04400 PLATE, INNERPLATE, INNER
-
1321413-04400 SPRINGSPRING
-
1408331-41386 CIRCLIPCIRCLIP
-
1509164-12020 WASHER (12.2X22X1.6)WASHER (12.2X22X1.6)
-
1609140-12012 NUTNUT
-
1721461-04400 PLATE, PRESSUREPLATE, PRESSURE
-
1823121-04400 PIECE, PUSHPIECE, PUSH
-
1909263-10002 BEARING (10.1X22X2.8)BEARING (10.1X22X2.8)
-
2023241-04400 PLATE, RELEASEPLATE, RELEASE
-
2123230-04400 PLATE, RELEASE INNERPLATE, RELEASE INNER
-
2209440-12018 SPRINGSPRING
-
2309180-06065 SPACER (6X9X10.3)SPACER (6X9X10.3)
-
2401550-06203 BOLTBOLT
-
2508310-00063 NUTNUT
-
2623210-04400 LINK PLATE, RELEASE ARMLINK PLATE, RELEASE ARM
-
2709111-08032 BOLT (8X17)BOLT (8X17)
-
2809181-08167 WASHER (8X16X1.0)WASHER (8X16X1.0)
-
2923220-04400 ARM, RELEASE PLATEARM, RELEASE PLATE
-
3008332-11093 E RINGE RING
