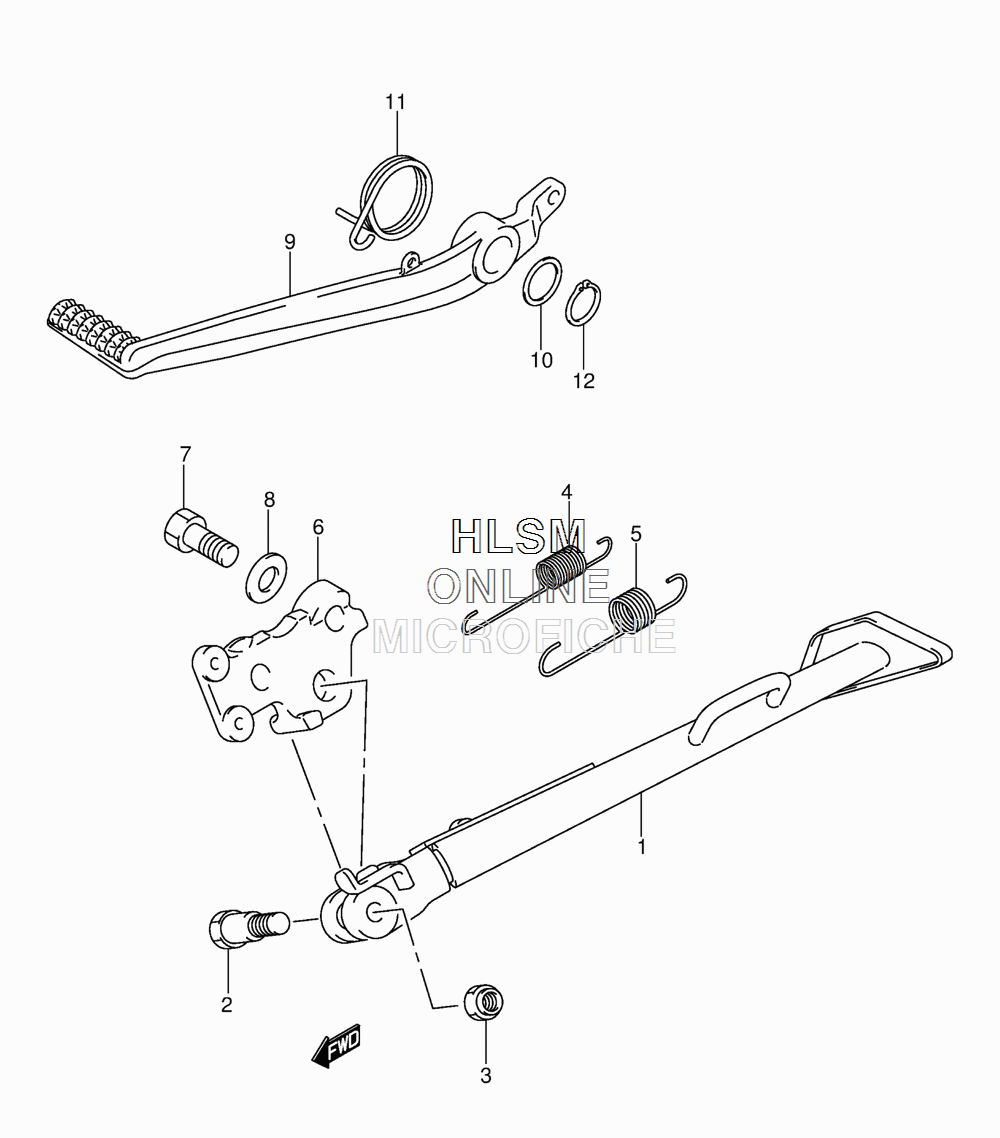

BRAKE PEDAL W/ STAND для Suzuki DL-650AL4 - 2014 года выпуска
-
№АртикулНазвание
-
142310-06G60 STAND, PROPSTAND, PROP
-
209111-10058 BOLT (10X37.5)BOLT (10X37.5)
-
342321-03FK0 NUTNUT
-
409443-14058 SPRINGSPRING
-
509443-19011 SPRINGSPRING
-
642330-06G60 BRACKET, PROP STANDBRACKET, PROP STAND
-
709100-12084 BOLT (12X30)BOLT (12X30)
-
809160-12061 WASHER (12.5X24X2.6)WASHER (12.5X24X2.6)
-
943111-27G00 PEDAL, BRAKEPEDAL, BRAKE
-
1009160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1109448-41005 SPRINGSPRING
-
1208331-3118A CIRCLIPCIRCLIP
