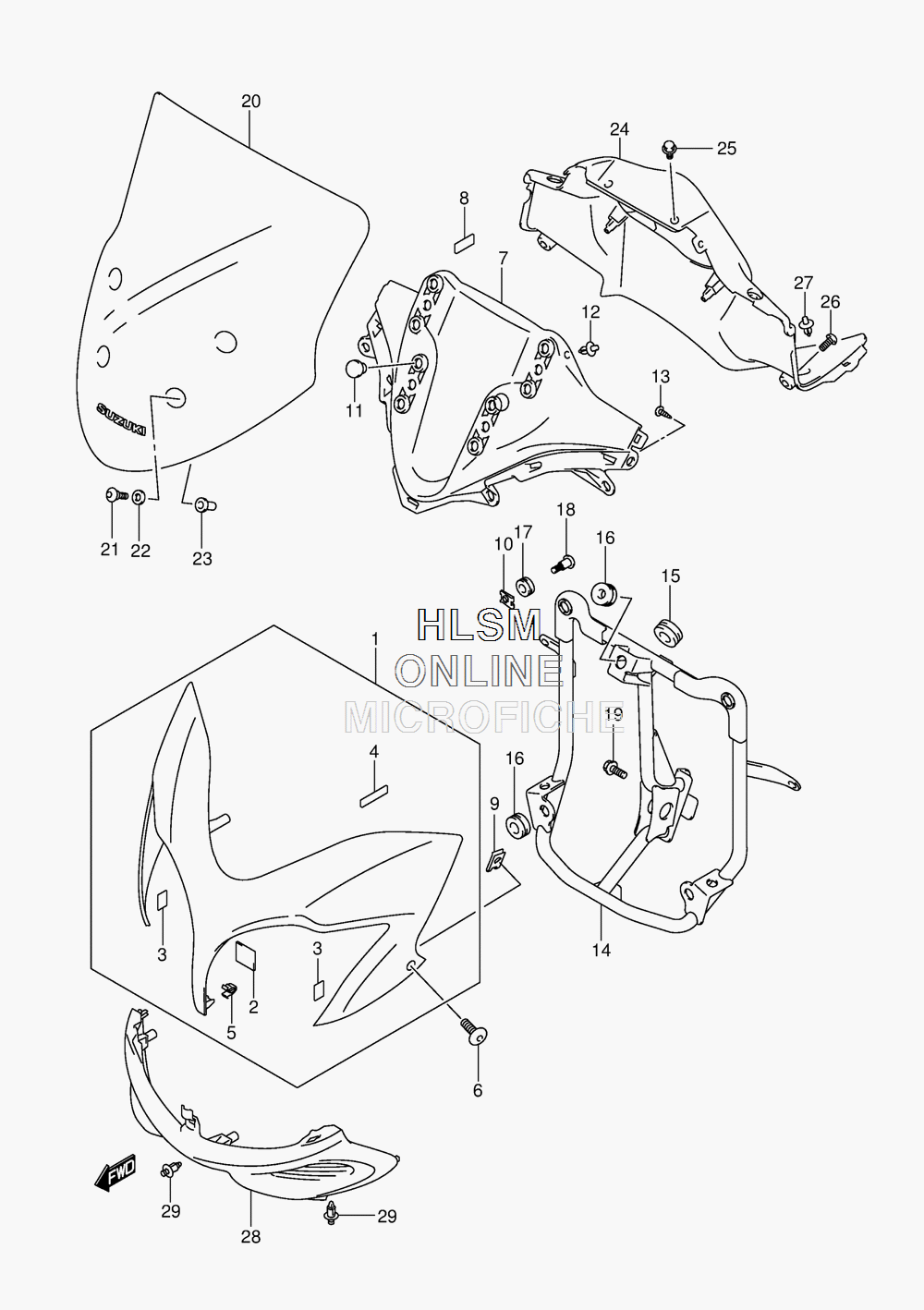

COWLING BODY для Suzuki DL-650AL4 - 2014 года выпуска
-
№АртикулНазвание
-
194410-11J00-YLF BODY, COWLING (YLF - METALLIC GRAY)BODY, COWLING (YLF - METALLIC GRAY)
-
194410-11J00-RB5 BODY, COWLING (RB5 - PEARL WHITE)BODY, COWLING (RB5 - PEARL WHITE)
-
194410-11J00-YYG BODY, COWLING (YYG - CABDY DARING RED)BODY, COWLING (YYG - CABDY DARING RED)
-
244572-02F01 FASTENERFASTENER
-
344572-37H00 FASTENER, COWLINGFASTENER, COWLING
-
494443-06G00 TAPE, FRONT PANELTAPE, FRONT PANEL
-
509409-08326 CLIPCLIP
-
609139-05064 SCREW (5X13)SCREW (5X13)
-
794414-11J00 PANEL, FRONTPANEL, FRONT
-
894612-31F00 CUSHION, FRONT PANELCUSHION, FRONT PANEL
-
909148-05052 NUTNUT
-
1009148-06020 NUTNUT
-
1109250-10010 CAP (OD:15)CAP (OD:15)
-
1209409-06329 CLIPCLIP
-
1303241-0512B SCREWSCREW
-
1494510-11J01 BRACE, COWLINGBRACE, COWLING
-
1534955-13E00 CUSHION, BRACE COWLINGCUSHION, BRACE COWLING
-
1609320-08028 CUSHIONCUSHION
-
1709320-09016 CUSHIONCUSHION
-
1809139-06126 SCREW (6X20)SCREW (6X20)
-
1901550-0820A BOLTBOLT
-
2094611-11J00 WINDSCREENWINDSCREEN
-
2109139-05032 SCREW (5X18)SCREW (5X18)
-
2209160-05048 WASHER (5.5X14X1.2)WASHER (5.5X14X1.2)
-
2309159-05019 NUTNUT
-
2494631-11J00 PANEL, METERPANEL, METER
-
2509139-05074 BOLT (5X13)BOLT (5X13)
-
2609139-06120 SCREW (6X16)SCREW (6X16)
-
2709409-06329 CLIPCLIP
-
2894461-11J00 COVER, COWLING INNERCOVER, COWLING INNER
-
2909409-06329 CLIPCLIP
