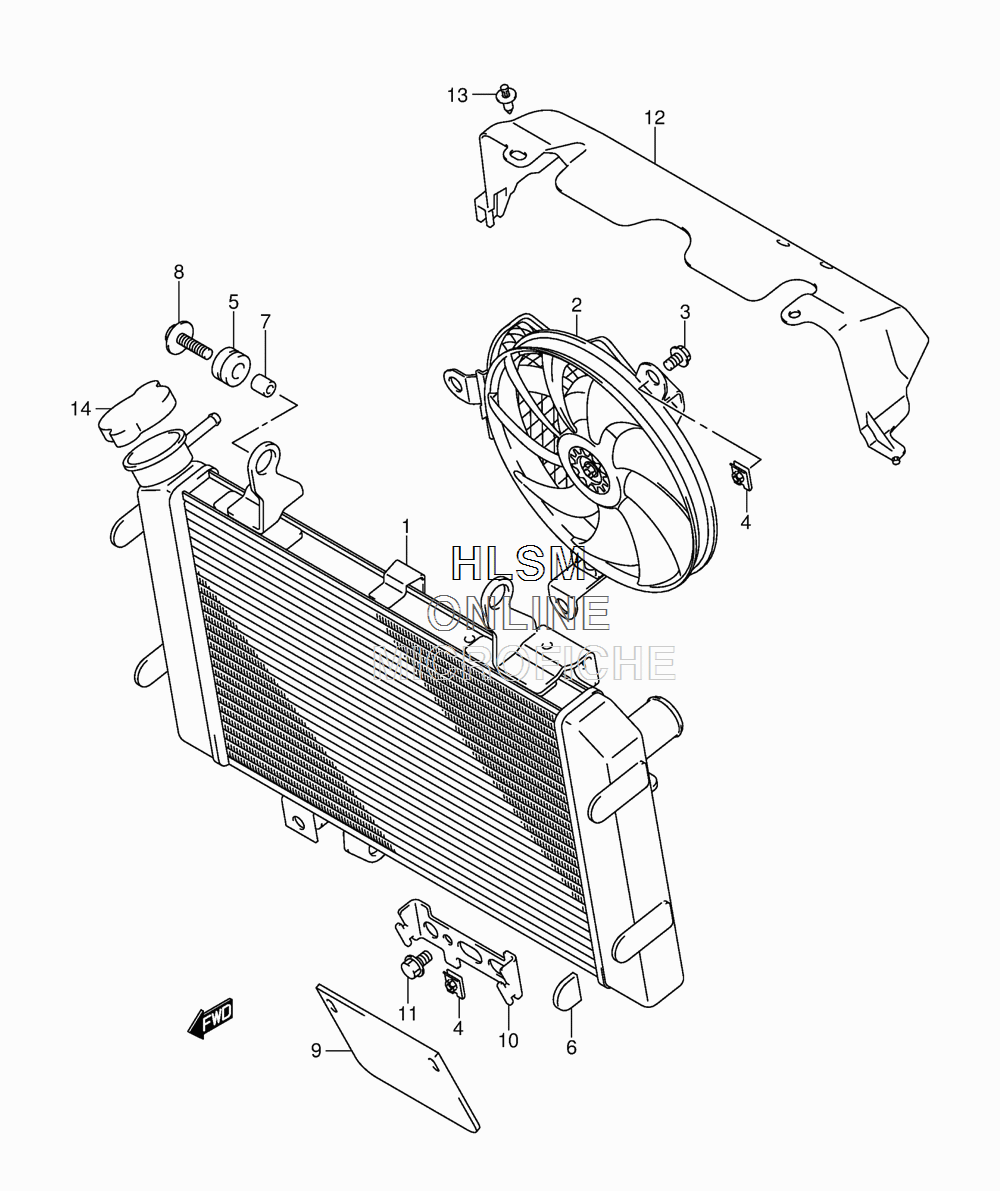

RADIATOR для Suzuki DL-650AL4 - 2014 года выпуска
-
№АртикулНазвание
-
117710-11J00 RADIATOR ASSY, WATERRADIATOR ASSY, WATER
-
217800-11J00 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
317711-08J00 BOLTBOLT
-
417712-40F00 NUTNUT
-
509320-10501 CUSHIONCUSHION
-
609329-18001 CUSHIONCUSHION
-
709180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
809118-06097 BOLT (6X25)BOLT (6X25)
-
917781-17G00 RUBBER, RADIATOR UNDERRUBBER, RADIATOR UNDER
-
1017741-17G00 BRACKET, RADIATOR UNDER RUBBERBRACKET, RADIATOR UNDER RUBBER
-
1101550-0612A BOLTBOLT
-
1217771-11J00 SHIELD, RADIATOR HEATSHIELD, RADIATOR HEAT
-
1309409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1417730-08J00 CAP, RADIATOR 1.1CAP, RADIATOR 1.1
