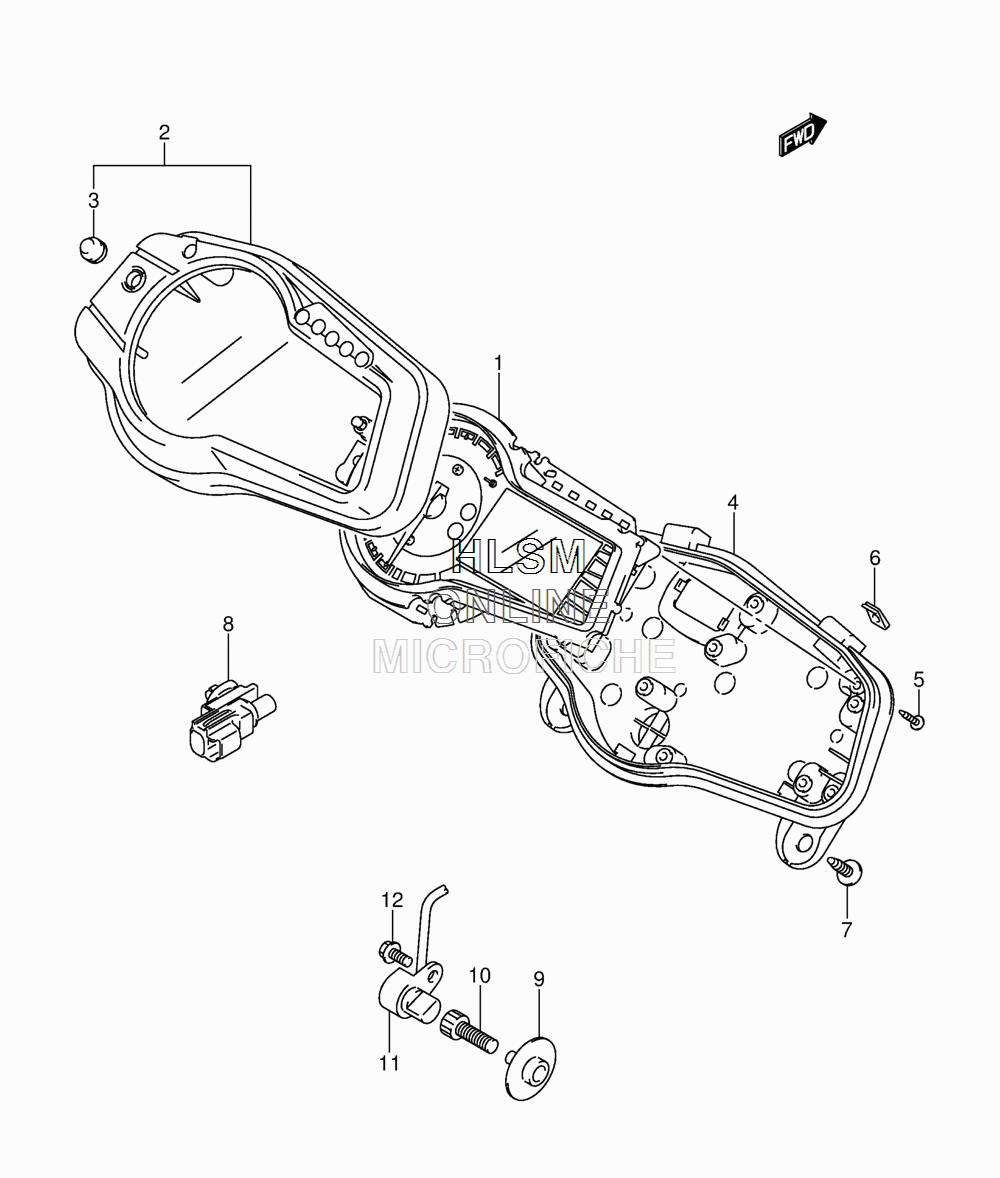

SPEEDOMETER для Suzuki DL-650AL4 - 2014 года выпуска
-
№АртикулНазвание
-
134120-11J11 SPEEDOMETERSPEEDOMETER
-
234150-11J00 CASE, UPPERCASE, UPPER
-
334124-38G00 RUBBER, SWITCHRUBBER, SWITCH
-
434111-11J00 CASE, LOWERCASE, LOWER
-
509132-03008 SCREW (3X16)SCREW (3X16)
-
609148-05052 NUTNUT
-
703541-0516A SCREWSCREW
-
895643-58J00 SENSOR, AMBIENT AIR TEMPSENSOR, AMBIENT AIR TEMP
-
934981-38G01 ROTOR, SPEEDROTOR, SPEED
-
1007130-0825B BOLTBOLT
-
1134990-35F00 SENSOR, SPEEDSENSOR, SPEED
-
1207120-0512B BOLTBOLT
