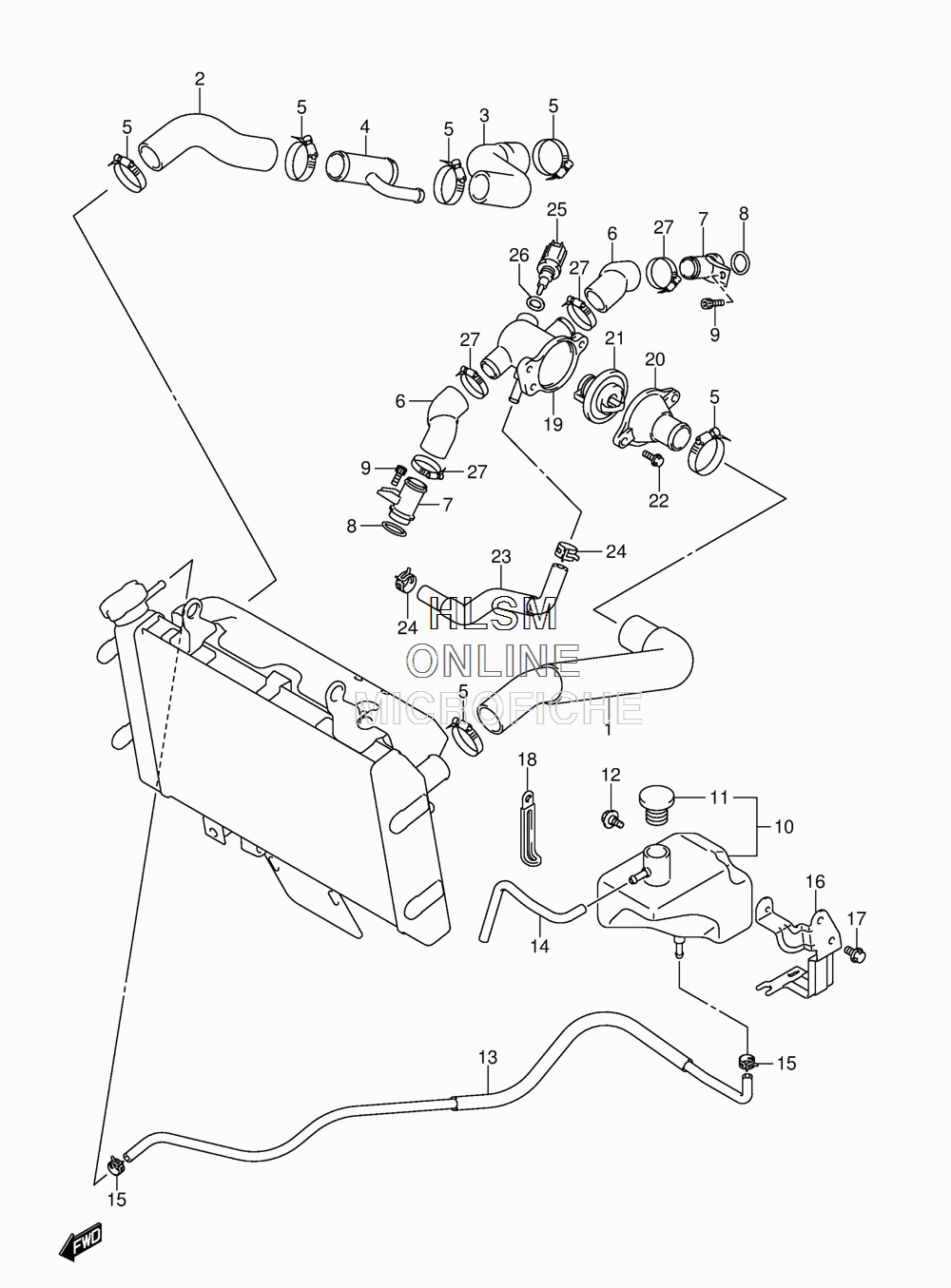

RADIATOR HOSE W/ RESERVOIR для Suzuki DL-650AL4 - 2014 года выпуска
-
№АртикулНазвание
-
117851-11J00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-44H20 HOSE, RADIATOR OUTLET NO.1HOSE, RADIATOR OUTLET NO.1
-
317854-44H00 HOSE, RADIATOR OUTLET NO.2HOSE, RADIATOR OUTLET NO.2
-
417880-44H00 UNION, 3WAYUNION, 3WAY
-
509402-35501 CLAMPCLAMP
-
617853-19F00 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
717890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
809280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
907130-0612A BOLTBOLT
-
1017910-27G10 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1117931-02FA0 CAP, RESERVOIR TANKCAP, RESERVOIR TANK
-
1209111-06085 BOLT (6X12)BOLT (6X12)
-
1317900-27810 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1417982-15H00 HOSE, RESERVOIR TANK OVERFLOWHOSE, RESERVOIR TANK OVERFLOW
-
1509401-08411 CLIPCLIP
-
1617920-27G10 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1701550-0610A BOLTBOLT
-
1809404-06429 CLAMP (L:45)CLAMP (L:45)
-
1917662-02F11 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2017663-17G00 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2117670-06G60 THERMOSTAT, WATERTHERMOSTAT, WATER
-
2201547-0616A BOLTBOLT
-
2317856-44H00 HOSE, CONNECTOR TO WATER PUMPHOSE, CONNECTOR TO WATER PUMP
-
2409401-12409 CLAMPCLAMP
-
2513650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2609168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2709402-28513 CLAMPCLAMP
