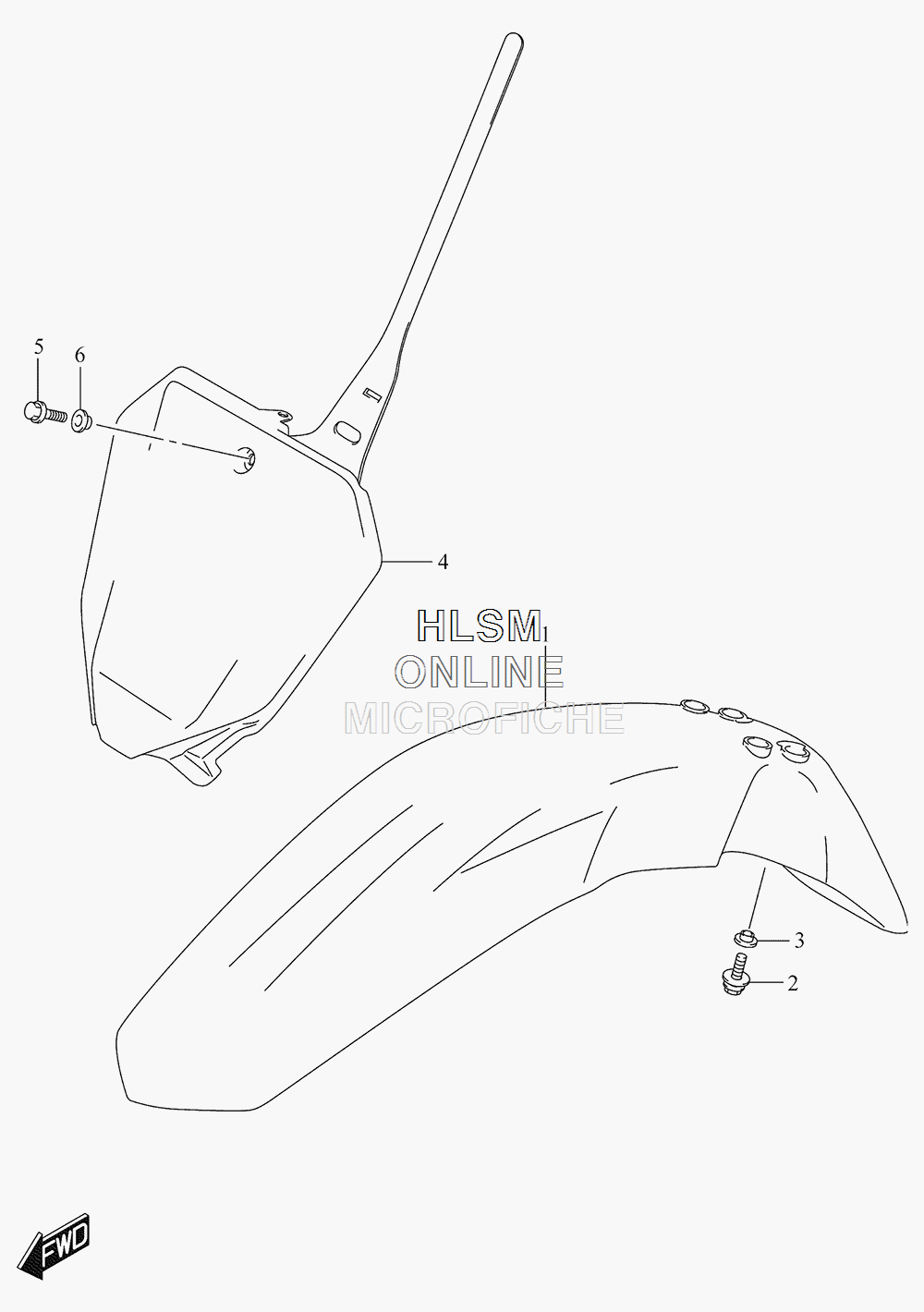

FENDER - FRONT для Suzuki DR-Z125 [DRZ125L5] - 2015 года выпуска
-
№АртикулНазвание
-
153111-08G50-YU1 FENDER, FRONT (YELLOW)FENDER, FRONT (YELLOW)
-
209116-06170 BOLT (6X16)BOLT (6X16)
-
309169-06073 WASHERWASHER
-
494911-08G00-YU1 PLATE, NUMBER FRONT (YELLOW)PLATE, NUMBER FRONT (YELLOW)
-
501547-0616A BOLTBOLT
-
609169-06071 WASHERWASHER
