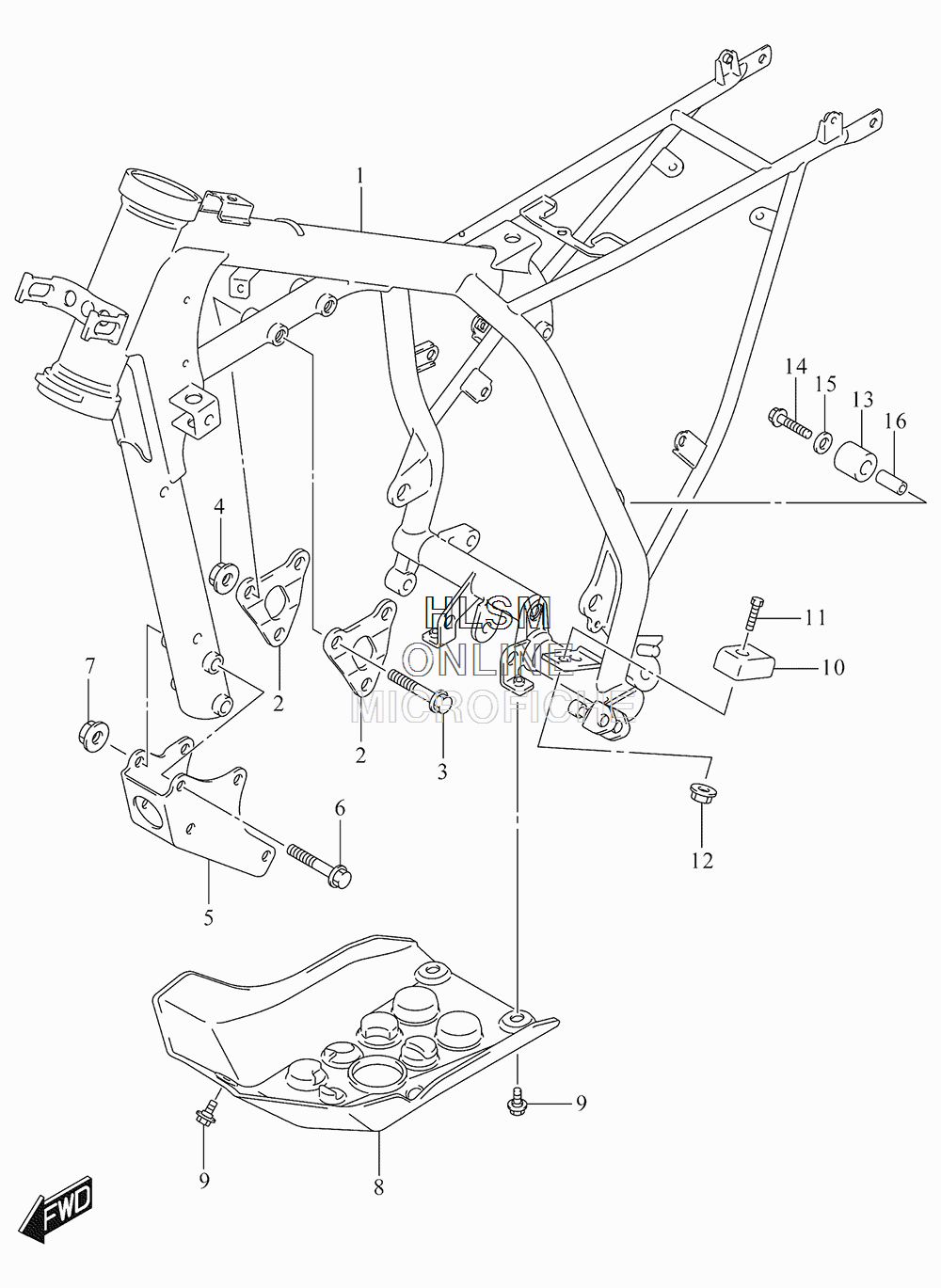

FRAME для Suzuki DR-Z125 [DRZ125L5] - 2015 года выпуска
-
№АртикулНазвание
-
141100-08G11-YPT FRAME (GRAY)FRAME (GRAY)
-
241991-08G00 PLATE, MOUNT UPPERPLATE, MOUNT UPPER
-
309103-08332 BOLT (8X53)BOLT (8X53)
-
408319-3108A NUTNUT
-
541992-08G00-YPT PLATE, MOUNT LOWER (GRAY)PLATE, MOUNT LOWER (GRAY)
-
609103-08354 BOLT (8X65)BOLT (8X65)
-
708319-3108A NUTNUT
-
842511-08G00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
909111-06107 BOLT (6X12)BOLT (6X12)
-
1043912-42A00 GUIDE, CHAIN CONTROLGUIDE, CHAIN CONTROL
-
1109128-06088 BOLT (6X16)BOLT (6X16)
-
1208319-3106A NUTNUT
-
1343911-13E10 ROLLER, CHAIN UPPERROLLER, CHAIN UPPER
-
1409103-08178 BOLT (8X38)BOLT (8X38)
-
1508211-08201 WASHERWASHER
-
1609180-08215 SPACER (8.6X12.2X26.5)SPACER (8.6X12.2X26.5)
