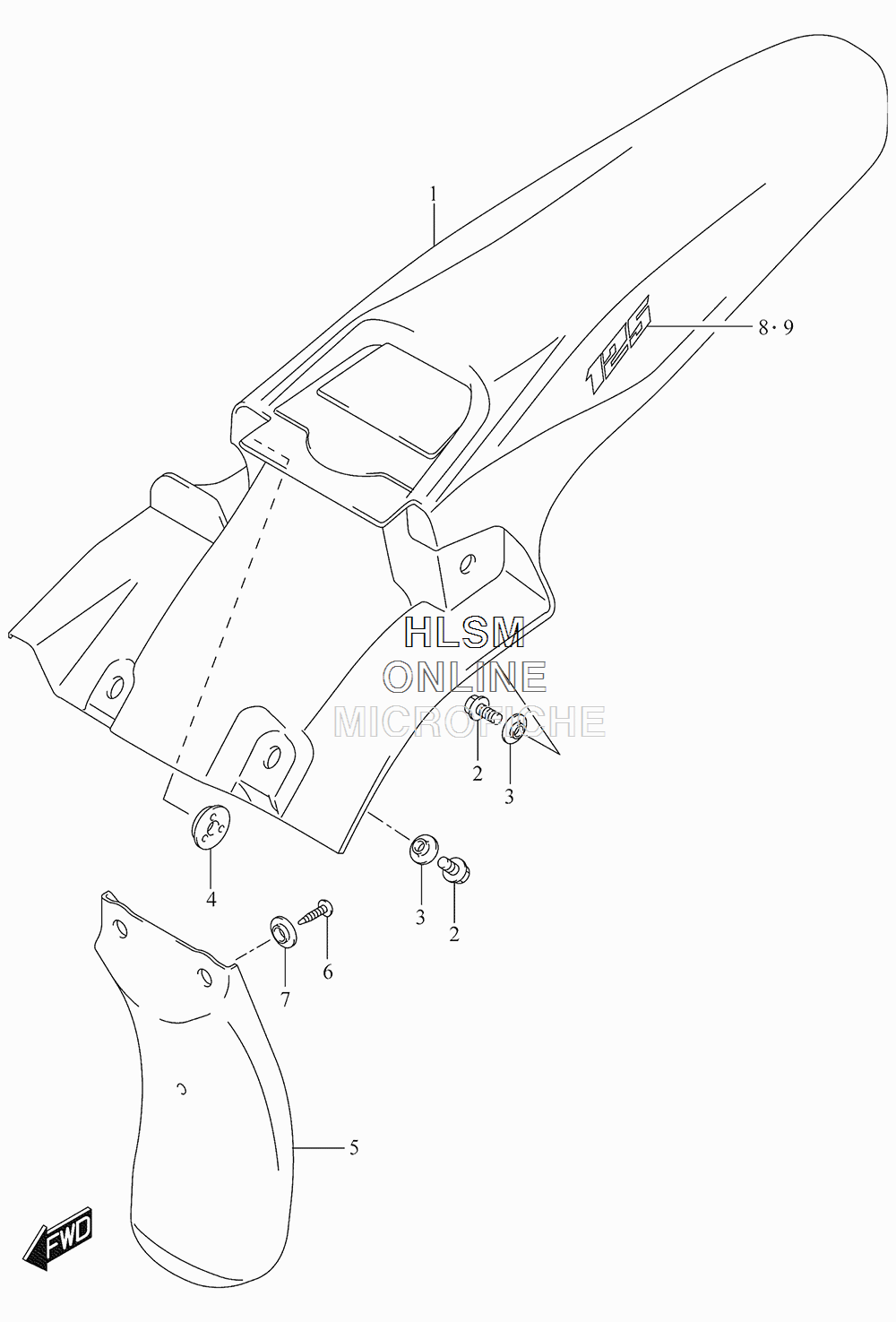

FENDER - REAR (CAN) для Suzuki DR-Z125 [DRZ125L5] - 2015 года выпуска
-
№АртикулНазвание
-
163113-08G60-019 FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
209103-06200 BOLT (6X16)BOLT (6X16)
-
309169-06076 WASHERWASHER
-
409169-08045 WASHERWASHER
-
563411-29F00 MUD GUARD, FRONTMUD GUARD, FRONT
-
609132-05053 SCREW (5X16)SCREW (5X16)
-
709169-06045 WASHERWASHER
-
868171-08G60-BJ BEMBLEM, RIGHT HAND (BLACK/WHITE)BEMBLEM, RIGHT HAND (BLACK/WHITE)
-
968172-08G60-BJ BEMBLEM, LEFT HAND (BLACK/WHITE)BEMBLEM, LEFT HAND (BLACK/WHITE)
