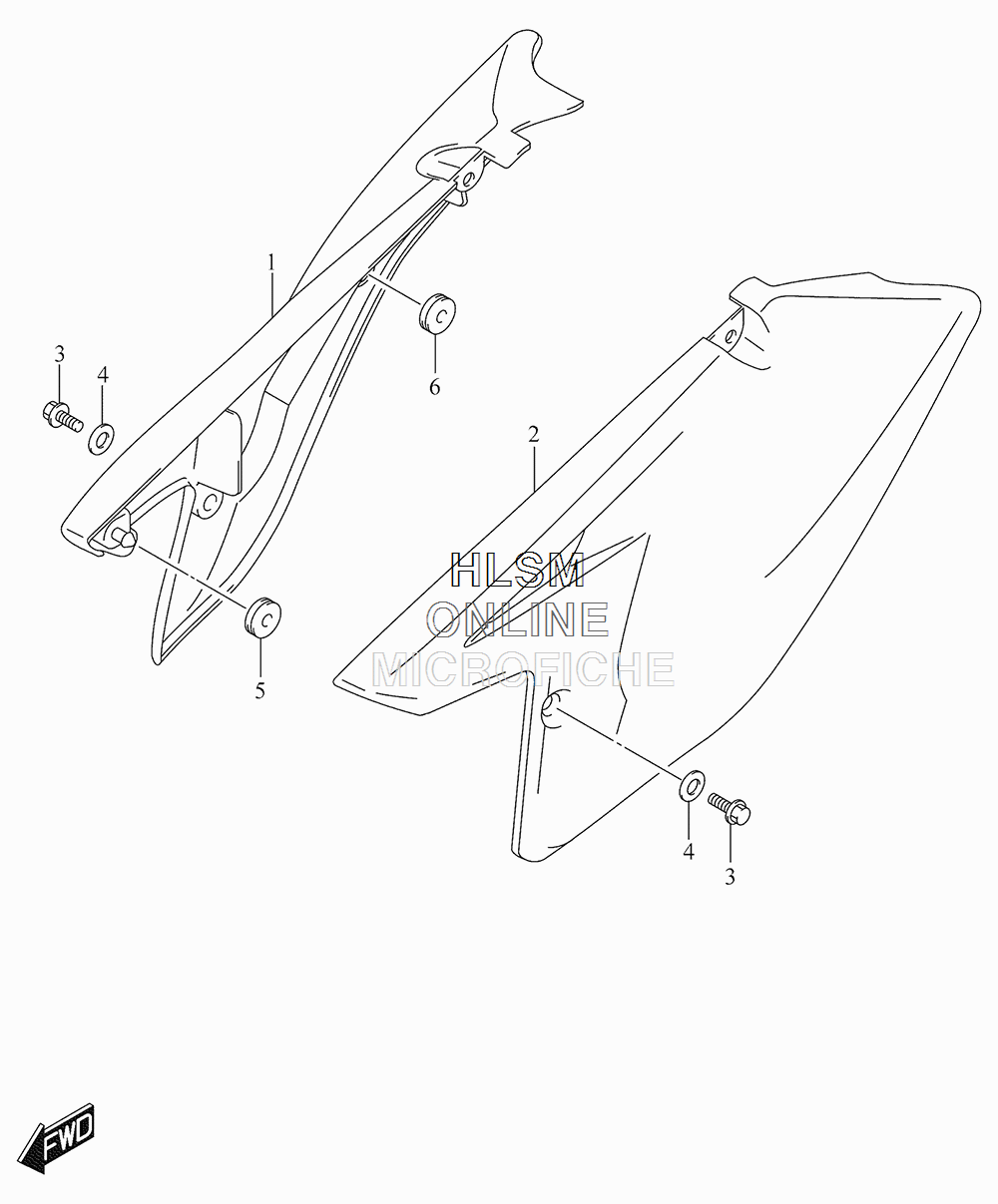

SIDE COVER для Suzuki DR-Z125 [DRZ125L5] - 2015 года выпуска
-
№АртикулНазвание
-
147111-08G50-30H COVER, FRAME RIGHT HAND (WHITE)COVER, FRAME RIGHT HAND (WHITE)
-
247211-08G50-30H COVER, FRAME LEFT HAND (WHITE)COVER, FRAME LEFT HAND (WHITE)
-
301547-0616A BOLTBOLT
-
409169-06031 WASHERWASHER
-
509320-08028 CUSHIONCUSHION
-
647161-08G00 CUSHION, MUFFLERCUSHION, MUFFLER
