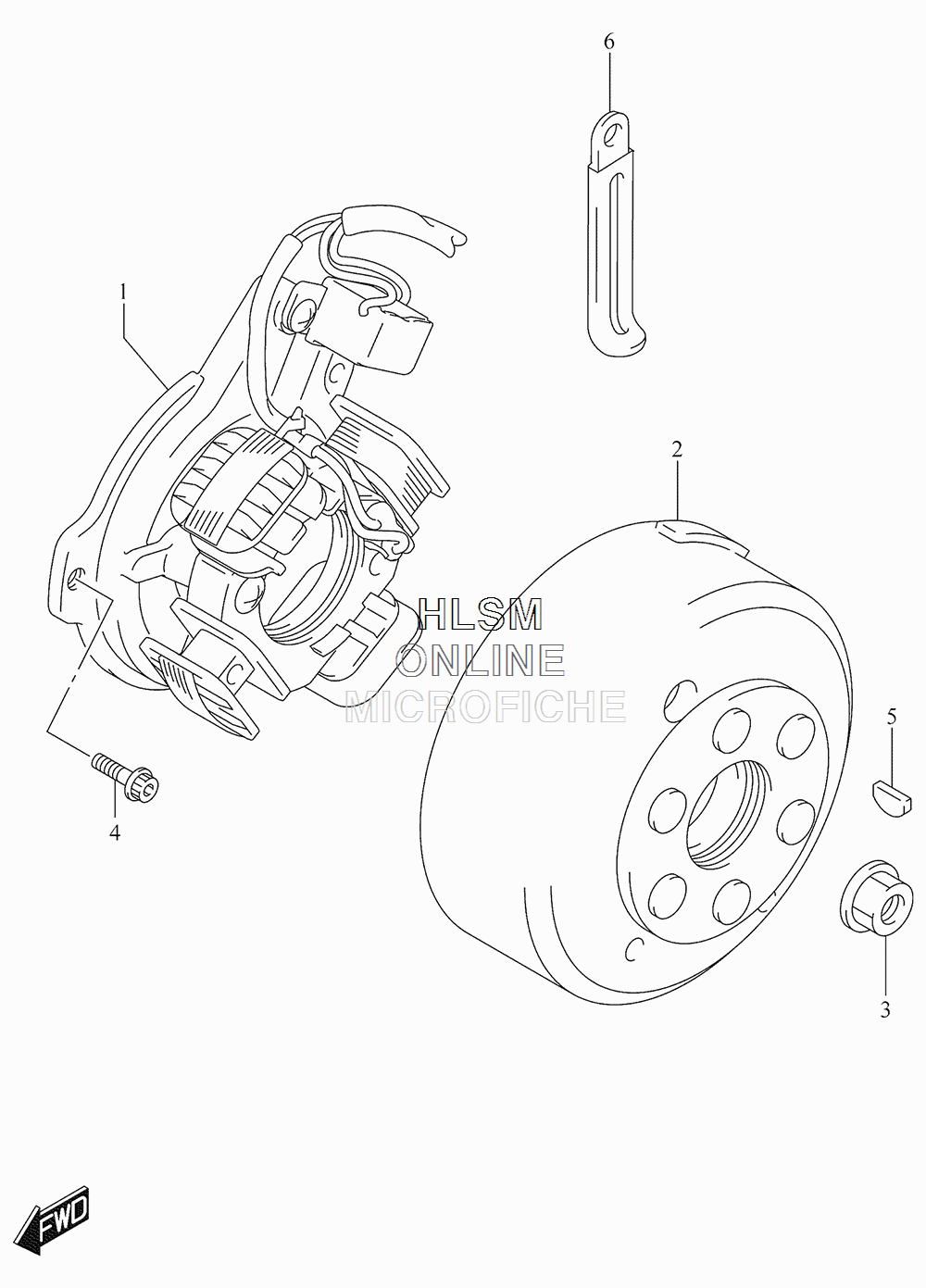

MAGNETO для Suzuki DR-Z125 [DRZ125L5] - 2015 года выпуска
-
№АртикулНазвание
-
132101-08G00 STATOR ASSYSTATOR ASSY
-
232102-08G00 ROTOR ASSYROTOR ASSY
-
309159-10110 NUTNUT
-
407120-0512A BOLTBOLT
-
508341-31039 KEYKEY
-
609404-06433 CLAMP (L:80)CLAMP (L:80)
