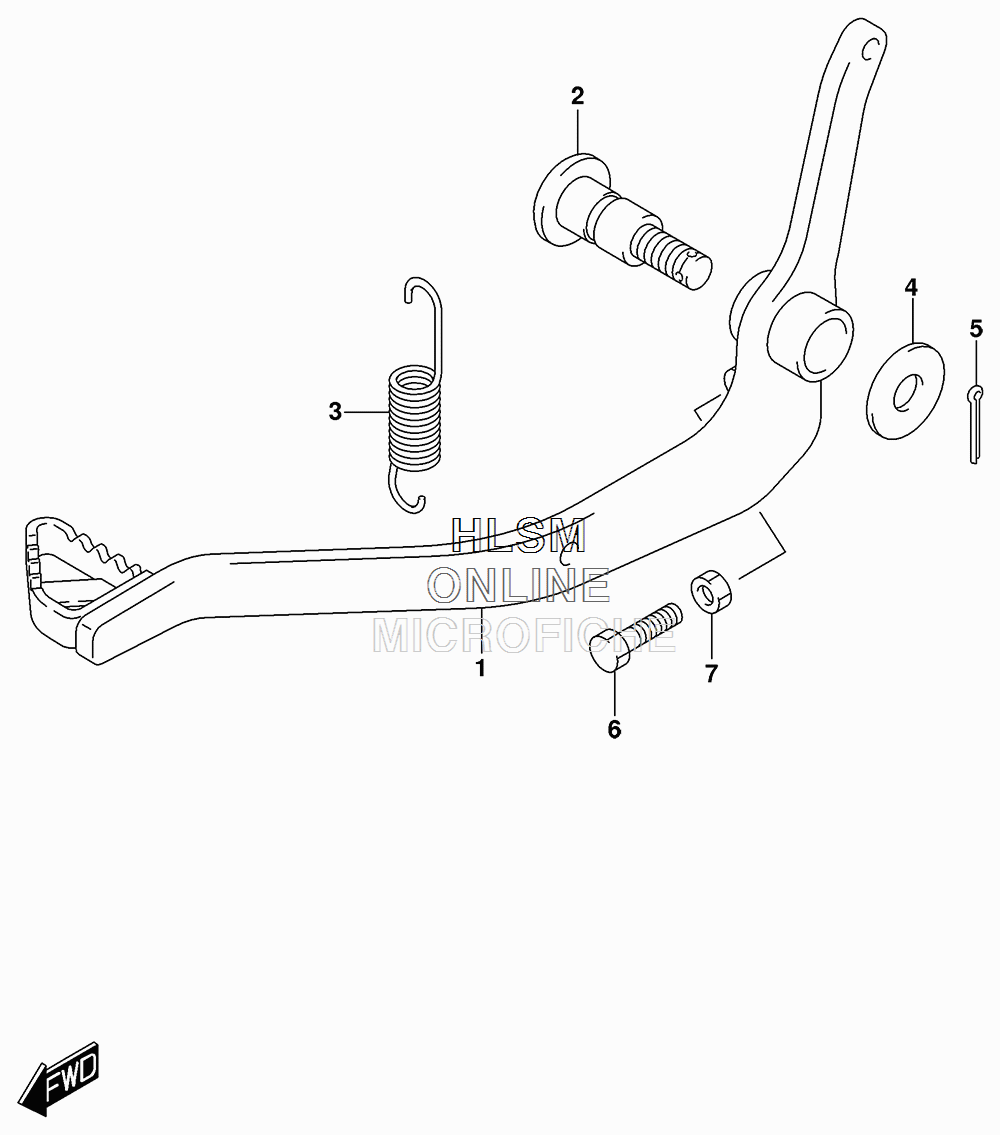

BRAKE PEDAL для Suzuki DR-Z125 - 2016 года выпуска
-
№АртикулНазвание
-
143110-08G00 PEDAL, BRAKEPEDAL, BRAKE
-
243142-27C00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
309443-13029 SPRINGSPRING
-
408211-10261 WASHERWASHER
-
504111-2020A COTTER PINCOTTER PIN
-
609100-06064 BOLT (6X18)BOLT (6X18)
-
708310-0006B NUTNUT
