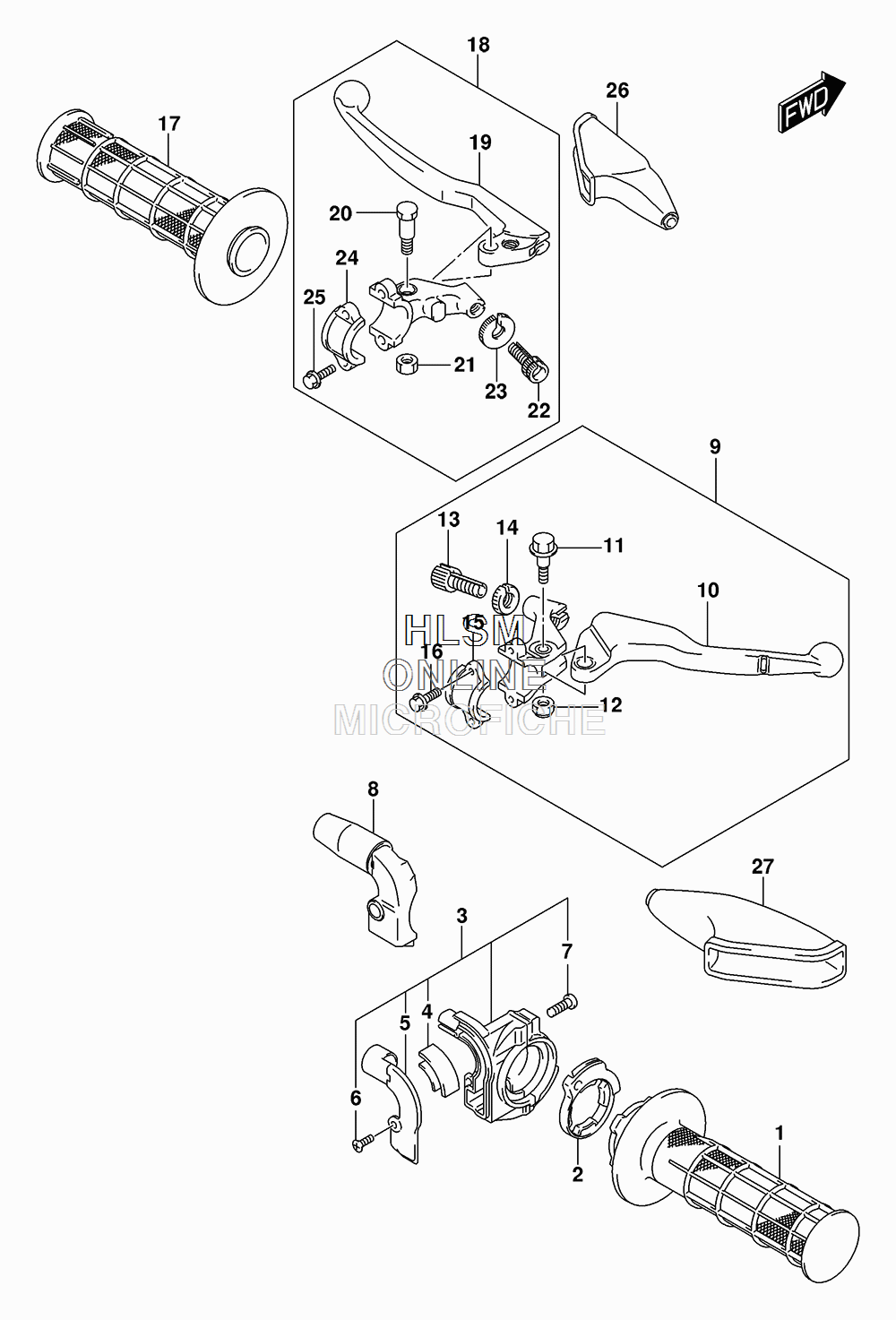

HANDLE LEVER для Suzuki DR-Z125 - 2016 года выпуска
-
№АртикулНазвание
-
157110-27C00 GRIP, THROTTLEGRIP, THROTTLE
-
257114-20430 ROTOR, THROTTLEROTOR, THROTTLE
-
357100-03D10 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
457122-03D10 ...GUIDE...GUIDE
-
557129-03D10 ...COVER...COVER
-
602132-0406B ...SCREW...SCREW
-
702112-0516A ...SCREW...SCREW
-
857129-08G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
957300-14320 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
1057420-14320 ...LEVER, BRAKE...LEVER, BRAKE
-
1157431-14320 ...BOLT...BOLT
-
1208319-2106A ...NUT...NUT
-
1357441-45C00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1457442-45C00 ...NUT...NUT
-
1557512-37F00 ...BRACKET, HOLDER...BRACKET, HOLDER
-
1601547-06207 ...BOLT...BOLT
-
1757211-27C00 GRIP, LHGRIP, LH
-
1857500-14320 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1957621-13E00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
2057431-21D11 ...BOLT...BOLT
-
2108319-2106A ...NUT...NUT
-
2257441-29F00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
2357442-45C00 ...NUT...NUT
-
2457512-28C00 ...BRACKET...BRACKET
-
2557513-29F10 ...BOLT...BOLT
-
2657341-29F01 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2757341-40002 COVER, BRAKE LEVERCOVER, BRAKE LEVER
