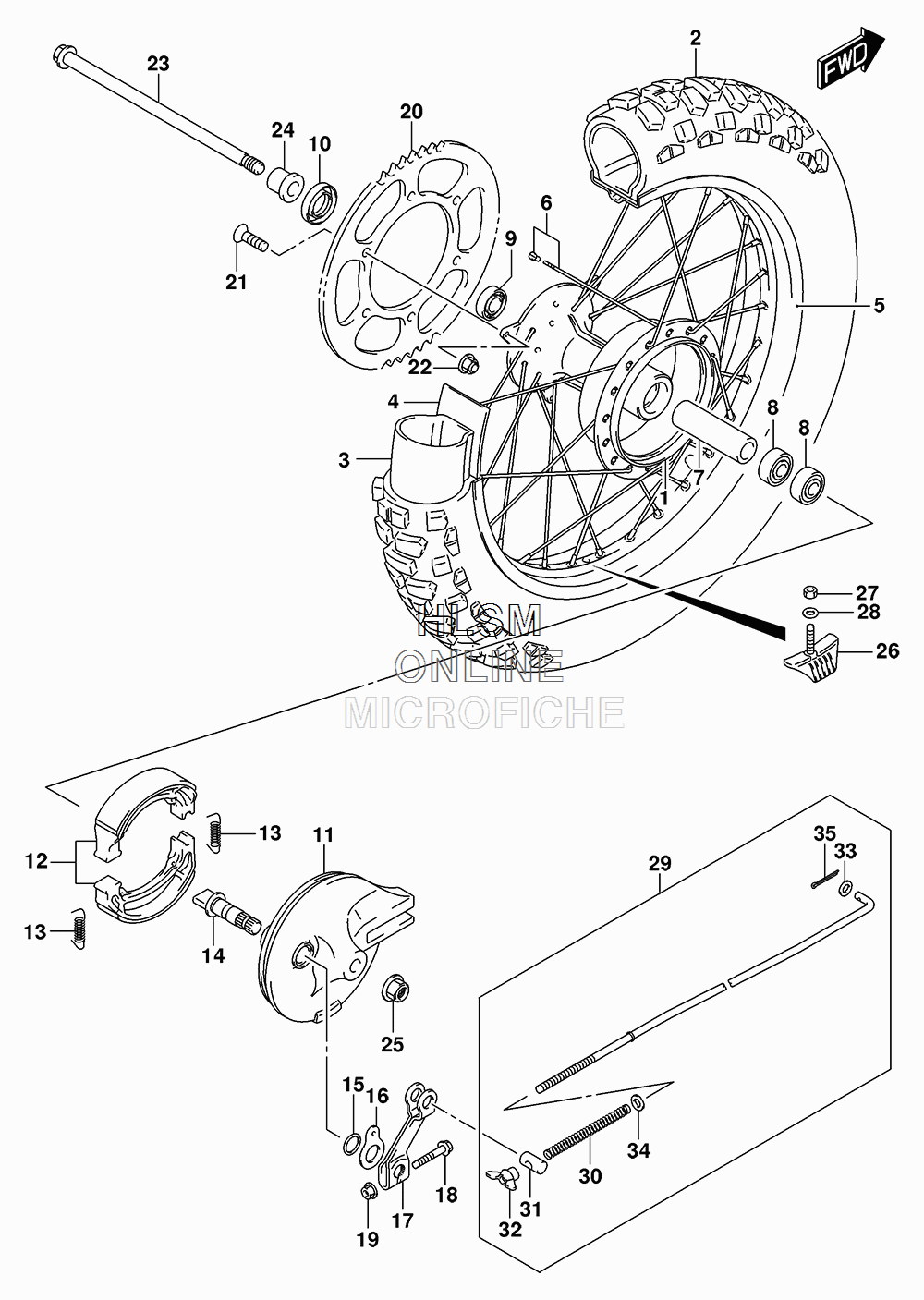

WHEEL - REAR для Suzuki DR-Z125 - 2016 года выпуска
-
№АртикулНазвание
-
164110-08G10 HUB, REAR WHEELHUB, REAR WHEEL
-
265110-08G00 TIRE, REAR (90/100-14 49M) (XB211 IRC)TIRE, REAR (90/100-14 49M) (XB211 IRC)
-
365200-08G00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
465261-08G20 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
565311-08G20 RIM, REAR WHEEL (14X1.60)RIM, REAR WHEEL (14X1.60)
-
665320-08G20 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
709180-12151 SPACER (12.5X19X45.5)SPACER (12.5X19X45.5)
-
808143-62017 BEARING (RH)BEARING (RH)
-
908123-63017 BEARING (LH)BEARING (LH)
-
1009283-20025 OIL SEAL (20X37X7)OIL SEAL (20X37X7)
-
1164210-08G00 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1254401-43840 SHOE SET, BRAKESHOE SET, BRAKE
-
1309443-07044 SPRINGSPRING
-
1464441-13G00 CAM, BRAKECAM, BRAKE
-
1509280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
1654492-13G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
1764451-08G00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1801550-0635A BOLTBOLT
-
1908316-1006A NUTNUT
-
2064511-08G00 SPROCKET, REAR (NT:51)SPROCKET, REAR (NT:51)
-
2109120-08010 BOLT (8X30.5)BOLT (8X30.5)
-
2208319-3108A NUTNUT
-
2364711-08G00 AXLE, REARAXLE, REAR
-
2464751-08G00 SPACER, AXLESPACER, AXLE
-
2508319-3112A NUTNUT
-
2665270-08G00 STOPPER, BEADSTOPPER, BEAD
-
2708310-0008A NUTNUT
-
2808322-0108A WASHERWASHER
-
2943300-08G00 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
3009440-09004 ...SPRING...SPRING
-
3109209-11002 ...PIN (11X18)...PIN (11X18)
-
3209144-06005 ...NUT...NUT
-
3308322-0105A ...WASHER (FRONT)...WASHER (FRONT)
-
3408322-0106A ...WASHER (REAR)...WASHER (REAR)
-
3504111-2020A ...COTTER PIN...COTTER PIN
