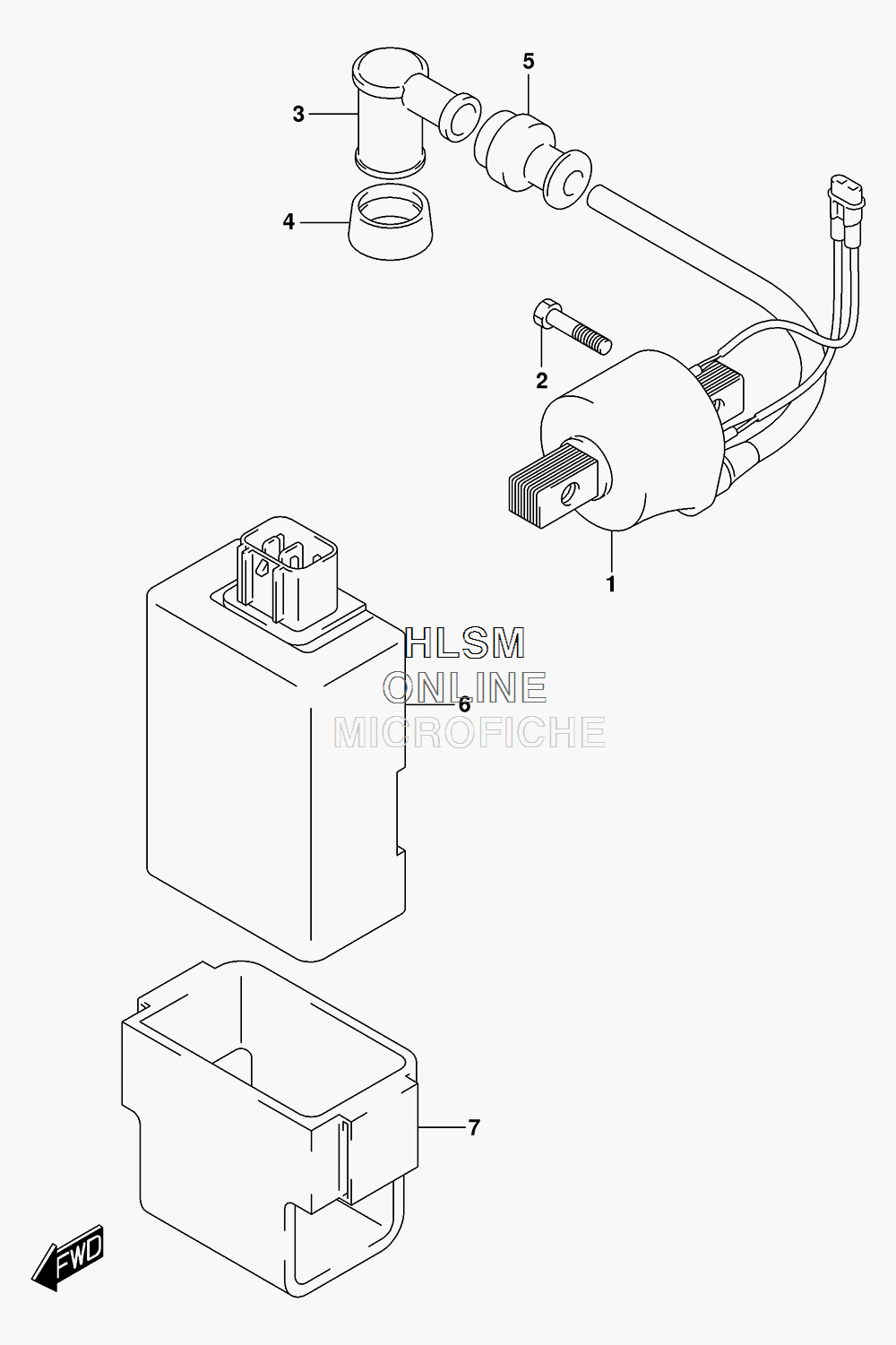

ELECTRICAL для Suzuki DR-Z125 - 2016 года выпуска
-
№АртикулНазвание
-
133410-08G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
201547-0620B BOLTBOLT
-
333510-22010 CAP, SPARK PLUGCAP, SPARK PLUG
-
433541-38210 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
533542-38B00 SEAL, HIGH TENSIONSEAL, HIGH TENSION
-
632900-08G00 CDI UNITCDI UNIT
-
732980-08G00 CUSHION, CDI UNITCUSHION, CDI UNIT
