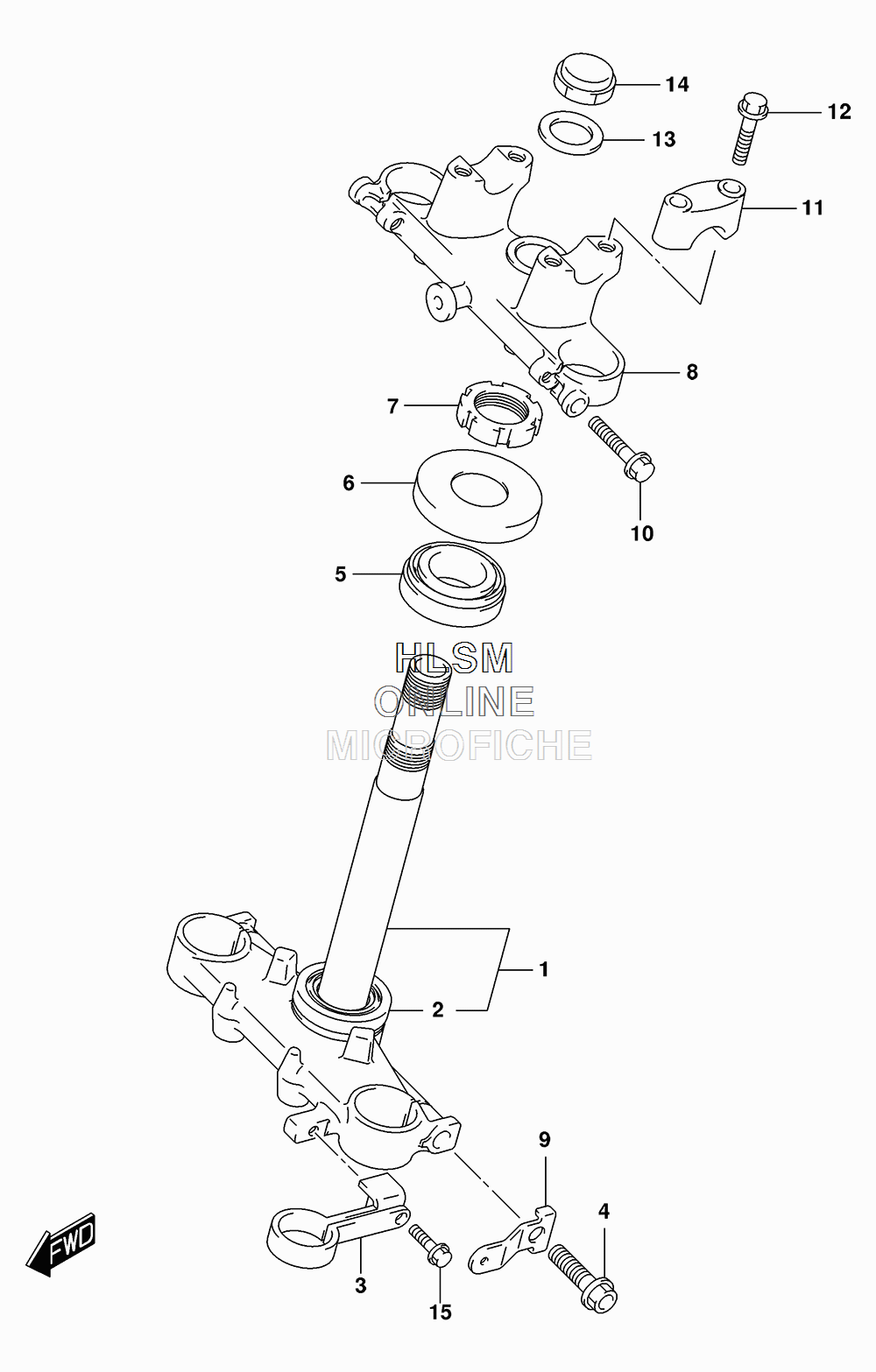

STEERING STEM для Suzuki DR-Z125 - 2016 года выпуска
-
№АртикулНазвание
-
151410-08G00 STEM, STEERINGSTEM, STEERING
-
209265-26001 ...BEARING (26X47X15)...BEARING (26X47X15)
-
351453-08G10 GUIDE, FRONT BRAKE HOSEGUIDE, FRONT BRAKE HOSE
-
451328-08G00 BOLTBOLT
-
509265-25038 BEARING (25X47X15)BEARING (25X47X15)
-
651643-03B00 SEAL, STEERING UPPER DUSTSEAL, STEERING UPPER DUST
-
751631-03B00 NUT, STEMNUT, STEM
-
851311-08G00 HEAD, STEERING STEMHEAD, STEERING STEM
-
935956-08G00 BRACKET, FRONT SIDE RRBRACKET, FRONT SIDE RR
-
1051321-08G00 BOLTBOLT
-
1156211-36F00 HOLDER, HANDLEHOLDER, HANDLE
-
1251321-08G00 BOLT, HOLDERBOLT, HOLDER
-
1351356-02B60 WASHERWASHER
-
1451353-11D50 NUTNUT
-
1501547-06207 BOLTBOLT
