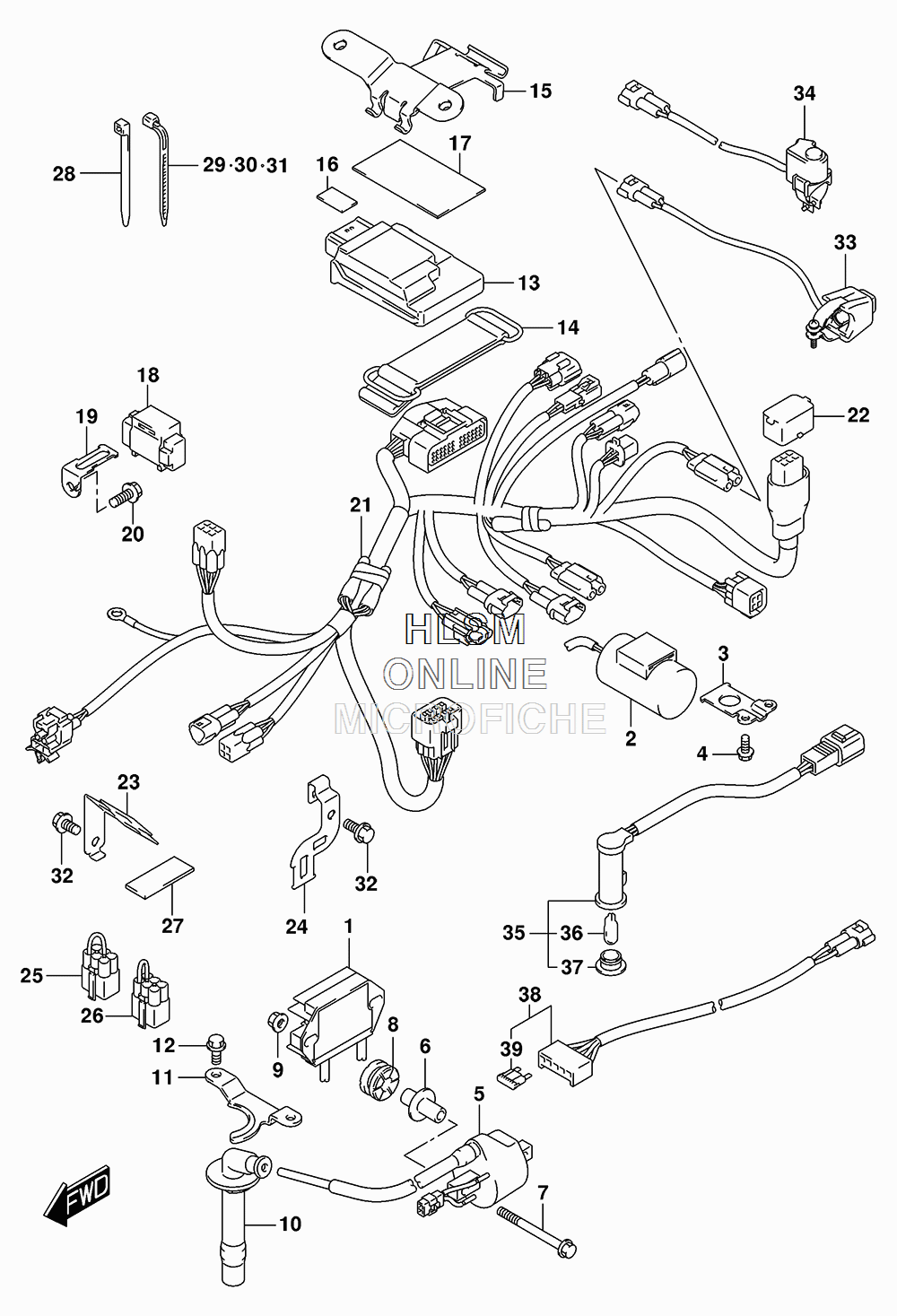

ELECTRICAL для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска
-
№АртикулНазвание
-
132800-28H00 RECTIFIER ASSYRECTIFIER ASSY
-
233640-28H00 CONDENSER ASSYCONDENSER ASSY
-
333641-28H00 BRACKET, CONDENSERBRACKET, CONDENSER
-
409103-06188 BOLT (6X10)BOLT (6X10)
-
533410-28H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
633419-49H00 SPACER, IGNITION COILSPACER, IGNITION COIL
-
709103-06253 BOLT (6X60)BOLT (6X60)
-
809320-10062 CUSHIONCUSHION
-
908319-3106A NUTNUT
-
1033510-49H00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1133414-49H00 RETAINER, SPARK PLUG CAPRETAINER, SPARK PLUG CAP
-
1201550-0610B BOLTBOLT
-
1332920-49HE0 CONTROL UNIT, FICONTROL UNIT, FI
-
1432942-14301 BAND, FI CONTROL UNITBAND, FI CONTROL UNIT
-
1532931-49H00 BRACKET, FI CONTROL UNITBRACKET, FI CONTROL UNIT
-
1633652-36000 CUSHIONCUSHION
-
1733652-36000 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
1833960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1933961-49H00 BRACKET, FUEL CUT SENSORBRACKET, FUEL CUT SENSOR
-
2002162-0616A SCREWSCREW
-
2136610-49H30 HARNESS, WIRINGHARNESS, WIRING
-
2236654-46H00 CAP, TSCAP, TS
-
2336672-49H00 BRACKET, COUPLERBRACKET, COUPLER
-
2436672-49H20 BRACKET, COUPLERBRACKET, COUPLER
-
2536852-28H00 WIRE, SHORTWIRE, SHORT
-
2636852-49H00 WIRE, SHORTWIRE, SHORT
-
2736920-45G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2809407-10403 CLAMP (L:95)CLAMP (L:95)
-
2909407-11401 CLAMP (L:95)CLAMP (L:95)
-
3009407-14403 CLAMP (L:125)CLAMP (L:125)
-
3109407-18402 CLAMP (L:165)CLAMP (L:165)
-
3201547-0610A BOLTBOLT
-
3337820-49H00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
3437820-28H01 SWITCH ASSY, START DASH CONTROLSWITCH ASSY, START DASH CONTROL
-
3536380-28H00 LAMP ASSY, FI INDICATOR (OPT)LAMP ASSY, FI INDICATOR (OPT)
-
3609471-12028 ...BULB (12V,3.4W) (OPT)...BULB (12V,3.4W) (OPT)
-
3736321-28H00 ...LENS (RED) (OPT)...LENS (RED) (OPT)
-
3836890-28H00 WIRE, BATTERY (OPT)WIRE, BATTERY (OPT)
-
3909481-10101 ...FUSE (10A) (OPT)...FUSE (10A) (OPT)
