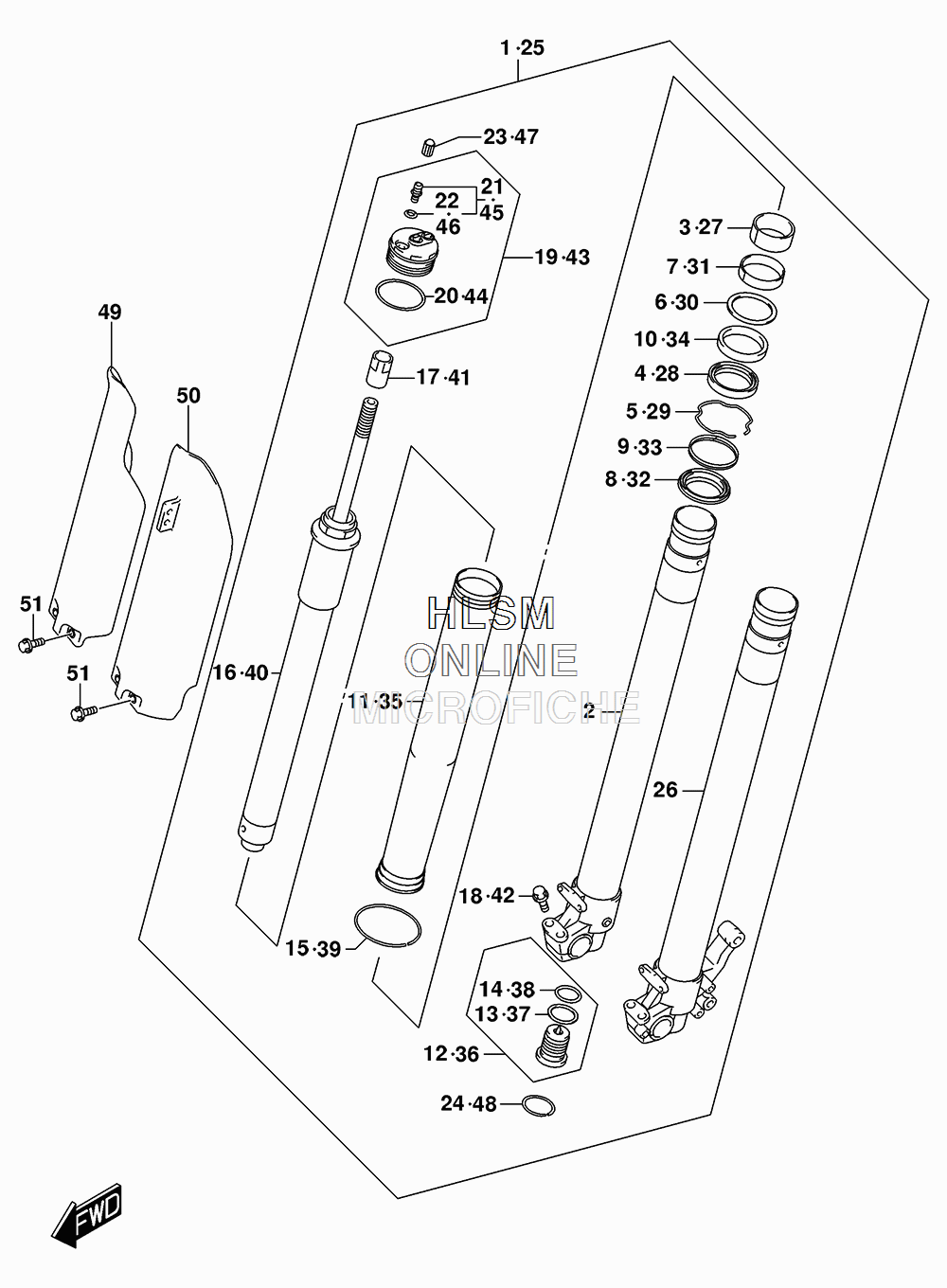

SUSPENSION - FRONT FORK для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска
-
№АртикулНазвание
-
151103-49H40 DAMPER ASSY, FRONT FORK RHDAMPER ASSY, FRONT FORK RH
-
251110-49HE0 ...TUBE, INNER RH...TUBE, INNER RH
-
351127-49HE0 ...PISTON...PISTON
-
451153-49HE0 ...SEAL, OIL...SEAL, OIL
-
551156-49HE0 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
651158-49HE0 ...WASHER...WASHER
-
751167-49HE0 ...METAL, SLIDE...METAL, SLIDE
-
851173-49HE0 ...SEAL, DUST...SEAL, DUST
-
951152-49HE0 ...SCRAPER...SCRAPER
-
1051155-49HE0 ...COLLAR...COLLAR
-
1151130-49HE0 ...TUBE, OUTER...TUBE, OUTER
-
1251284-49HE0 ...ADJUSTER...ADJUSTER
-
1351148-01B20 ......GASKET......GASKET
-
1409280-18004 ......O RING (D:2.4,ID:17.8)......O RING (D:2.4,ID:17.8)
-
1551211-49H40 ...STOPPER RING...STOPPER RING
-
1651190-49HE0 ...CYLINDER...CYLINDER
-
1751814-49H40 ......NUT......NUT
-
1851166-24F60 ...BOLT...BOLT
-
1951351-49HE0 ...CAP...CAP
-
2051117-48G00 ......O RING......O RING
-
2151290-49HE0 ......VALVE ASSY, AIR......VALVE ASSY, AIR
-
2209280-06005 .........O RING (D:1.9,ID:5.7).........O RING (D:1.9,ID:5.7)
-
2351294-20400 ...CAP...CAP
-
2451258-49HE0 ...RING, STOPPER...RING, STOPPER
-
2551104-49H40 DAMPER ASSY, FRONT FORK LHDAMPER ASSY, FRONT FORK LH
-
2651120-49HE0 ...TUBE, INNER LH...TUBE, INNER LH
-
2751127-49HE0 ...PISTON...PISTON
-
2851153-49HE0 ...SEAL, OIL...SEAL, OIL
-
2951156-49HE0 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
3051158-49HE0 ...WASHER...WASHER
-
3151167-49HE0 ...METAL, SLIDE...METAL, SLIDE
-
3251173-49HE0 ...SEAL, DUST...SEAL, DUST
-
3351152-49HE0 ...SCRAPER...SCRAPER
-
3451155-49HE0 ...COLLAR...COLLAR
-
3551130-49HE0 ...TUBE, OUTER...TUBE, OUTER
-
3651284-49HE0 ...ADJUSTER...ADJUSTER
-
3751148-01B20 ......GASKET......GASKET
-
3809280-18004 ......O RING (D:2.4,ID:17.8)......O RING (D:2.4,ID:17.8)
-
3951211-49H40 ...STOPPER RING...STOPPER RING
-
4051190-49HE0 ...CYLINDER...CYLINDER
-
4151814-49H40 ......NUT......NUT
-
4251166-24F60 ...BOLT...BOLT
-
4351351-49HE0 ...CAP...CAP
-
4451117-48G00 ......O RING......O RING
-
4551290-49HE0 ......VALVE ASSY, AIR......VALVE ASSY, AIR
-
4609280-06005 .........O RING (D:1.9,ID:5.7).........O RING (D:1.9,ID:5.7)
-
4751294-20400 ...CAP...CAP
-
4851258-49HE0 ...RING, STOPPER...RING, STOPPER
-
4951501-28H60 PROTECTOR, FRONT FORK RHPROTECTOR, FRONT FORK RH
-
5051510-28H70 PROTECTOR, FRONT FORK LHPROTECTOR, FRONT FORK LH
-
5109111-06098 BOLT (6X10)BOLT (6X10)
