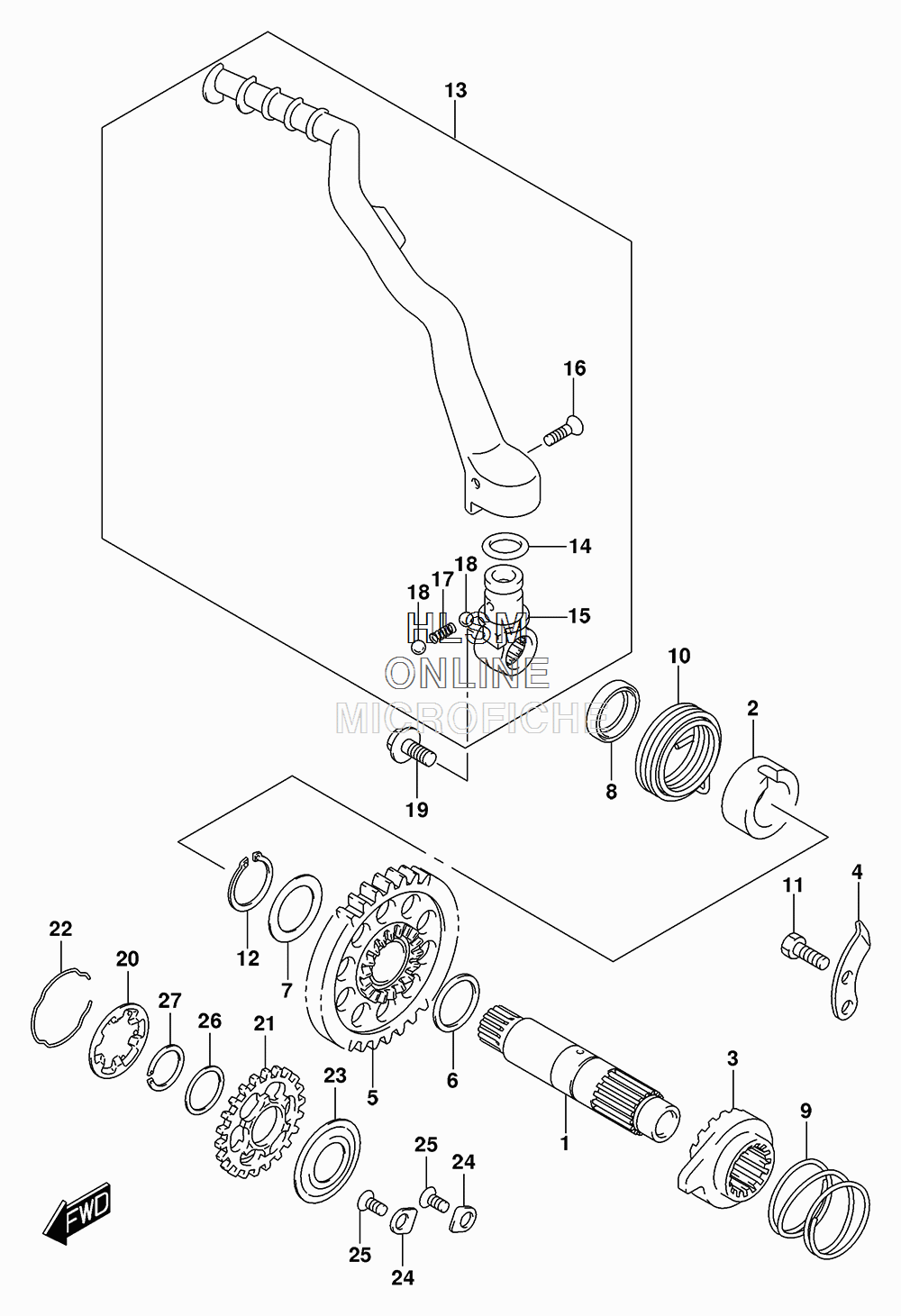

KICK STARTER для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска
-
№АртикулНазвание
-
126211-49H00 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-49H00 GUIDE, SHAFT SPRINGGUIDE, SHAFT SPRING
-
326231-10H00 STARTER, KICKSTARTER, KICK
-
426232-49H00 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
526240-49H00 GEAR, KICK STARTER DRIVE (NT:30)GEAR, KICK STARTER DRIVE (NT:30)
-
609181-18004 SHIM (18X22X1)SHIM (18X22X1)
-
709181-18005 SHIM (18X26X0.5)SHIM (18X26X0.5)
-
809283-18004 OIL SEAL (18X30X8)OIL SEAL (18X30X8)
-
909440-31002 SPRINGSPRING
-
1009448-45014 SPRINGSPRING
-
1101500-0612A BOLTBOLT
-
1208331-3118A CIRCLIPCIRCLIP
-
1326300-49H10 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1426313-28E20 ...O RING...O RING
-
1526331-49H00 ...JOINT...JOINT
-
1609127-06024 ...SCREW (6X27.5)...SCREW (6X27.5)
-
1709440-05031 ...SPRING...SPRING
-
1806111-07004 ...BALL...BALL
-
1909103-08522 BOLT (8X14)BOLT (8X14)
-
2011335-28H00 CAP, BREATHER GEARCAP, BREATHER GEAR
-
2111337-49H00 GEAR, BREATHER (NT:22)GEAR, BREATHER (NT:22)
-
2211338-28H00 CIRCLIP, BREATHER CAPCIRCLIP, BREATHER CAP
-
2311339-28H00 PLATE, BREATHER GEARPLATE, BREATHER GEAR
-
2424741-20A00 RETAINER, BREATHER GEAR SHAFTRETAINER, BREATHER GEAR SHAFT
-
2509126-06011 SCREW (6X12)SCREW (6X12)
-
2609181-22130 SHIM (22X28X0.5)SHIM (22X28X0.5)
-
2709380-22006 CIRCLIPCIRCLIP
