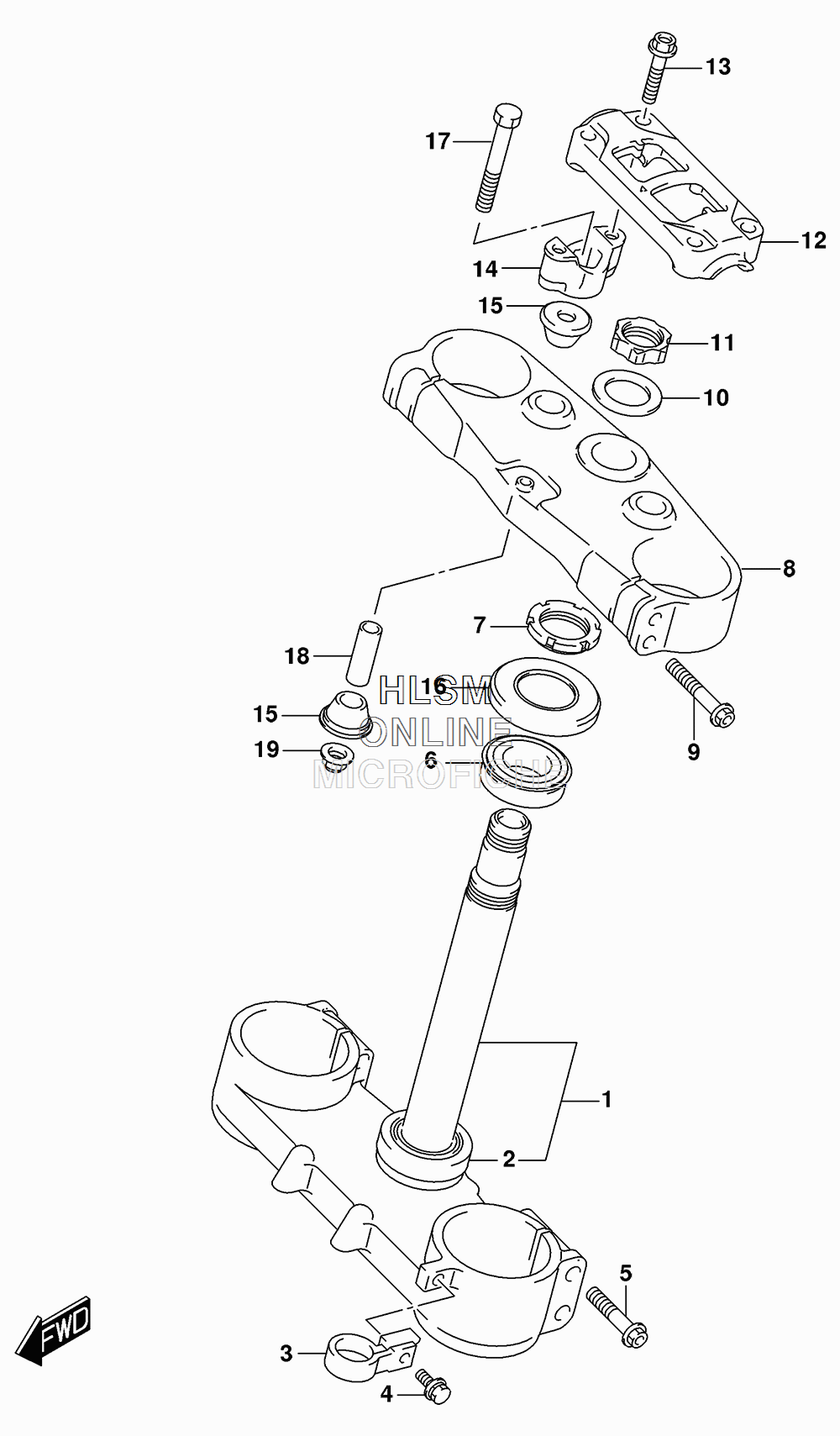

STEERING STEM для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска
-
№АртикулНазвание
-
151410-49H40 STEM, STEERINGSTEM, STEERING
-
209265-30014 ...BEARING (30X52X16)...BEARING (30X52X16)
-
358621-49H40 CLIPCLIP
-
409116-06200 BOLT (6X16)BOLT (6X16)
-
551166-10G10 BOLTBOLT
-
609265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
751631-28H00 NUT, STEERINGNUT, STEERING
-
851311-49H40 HEAD, STEERING STEMHEAD, STEERING STEM
-
951166-10G10 BOLTBOLT
-
1051356-49H40 WASHER, STEM HEADWASHER, STEM HEAD
-
1151353-49H40 NUT, STEM HEADNUT, STEM HEAD
-
1256211-49H40 HOLDER, HANDLEHOLDER, HANDLE
-
1351352-10G00 BOLTBOLT
-
1456221-49H40 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1556241-49H40 CUSHION, RUBBERCUSHION, RUBBER
-
1651643-28H10 COVER, STEERING UPPERCOVER, STEERING UPPER
-
1756321-49H40 BOLTBOLT
-
1856243-49H40 SPACERSPACER
-
1908319-31108 NUTNUT
