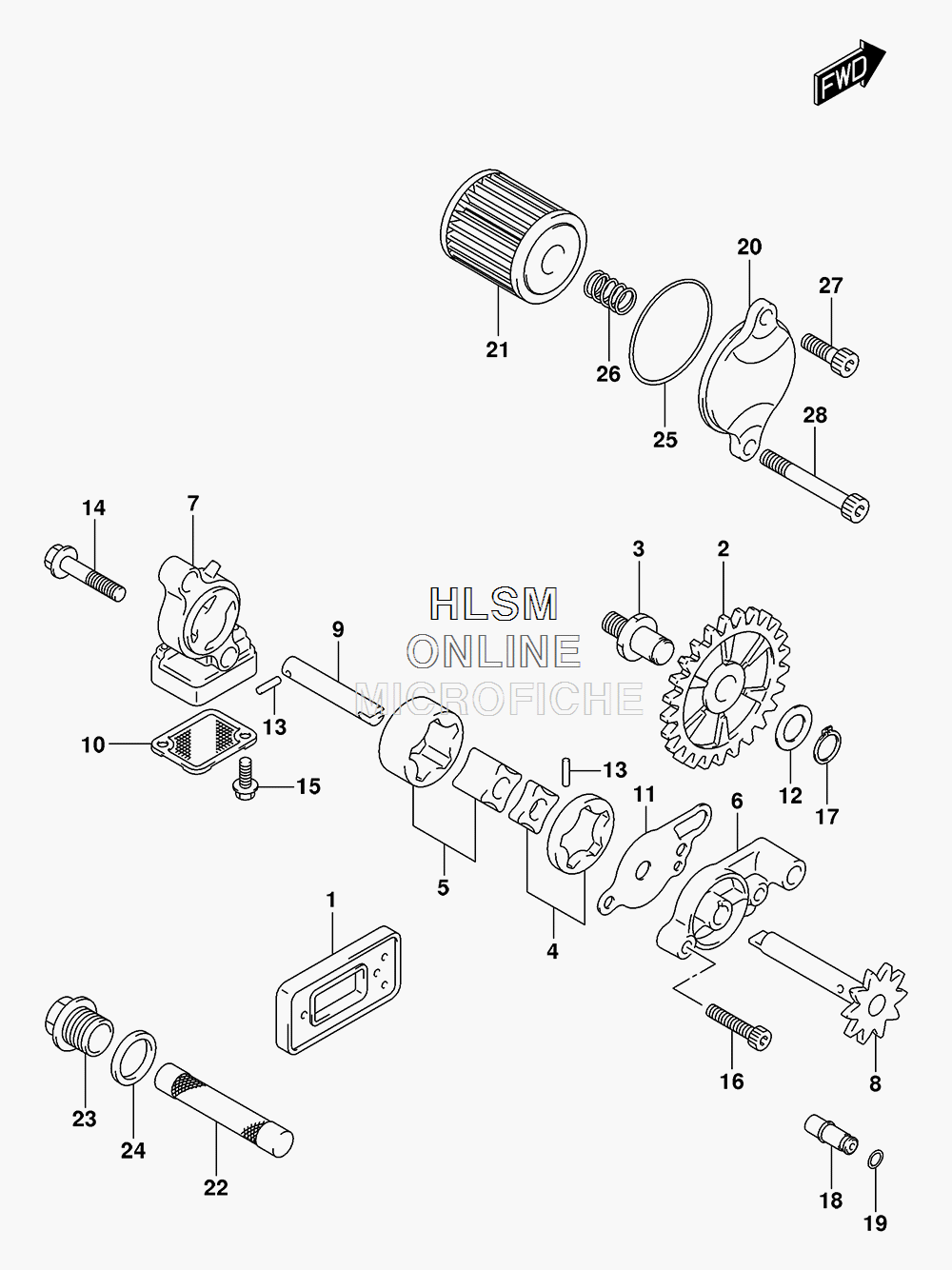

OIL PUMP для Suzuki RM-Z250 [RMZ250] - 2016 года выпуска
-
№АртикулНазвание
-
113150-28H10 VALVE ASSY, OIL REEDVALVE ASSY, OIL REED
-
216321-49H00 GEAR, OIL PUMP IDLE (NT:25)GEAR, OIL PUMP IDLE (NT:25)
-
316322-49H00 SHAFT, OIL PUMP IDLE GEARSHAFT, OIL PUMP IDLE GEAR
-
416410-49H00 ROTOR SET, OIL PUMP NO.1ROTOR SET, OIL PUMP NO.1
-
516410-45G00 ROTOR SET, OIL PUMP NO.2ROTOR SET, OIL PUMP NO.2
-
616430-49H10 COVER, OIL PUMP NO.1COVER, OIL PUMP NO.1
-
716433-49H10 COVER, OIL PUMP NO.2COVER, OIL PUMP NO.2
-
816440-49H10 SHAFT, OIL PUMP DRIVEN GEARSHAFT, OIL PUMP DRIVEN GEAR
-
916443-28H00 SHAFT, OIL PUMP NO.2SHAFT, OIL PUMP NO.2
-
1016530-49H00 STRAINER, OIL PUMP NO.2STRAINER, OIL PUMP NO.2
-
1116432-49H00 PLATE, OIL PUMPPLATE, OIL PUMP
-
1209181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1309261-02008 PIN (2.5X11.8)PIN (2.5X11.8)
-
1401547-0635A BOLTBOLT
-
1507120-0512A BOLTBOLT
-
1607130-0520A BOLTBOLT
-
1708331-31109 CIRCLIPCIRCLIP
-
1816440-28H00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1909280-05007 O RING (D:1.2,ID:4.7)O RING (D:1.2,ID:4.7)
-
2016315-35G10 CAP, ENGINE OIL FILTER OUTERCAP, ENGINE OIL FILTER OUTER
-
2116510-35G00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
2216520-10H10 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
2316316-10H01 CAP, ENG OIL STRAINERCAP, ENG OIL STRAINER
-
2409168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2509280-39001 O RING (D:2,ID:38.5)O RING (D:2,ID:38.5)
-
2609440-10038 SPRINGSPRING
-
2701547-0616A BOLTBOLT
-
2801547-0635A BOLTBOLT
