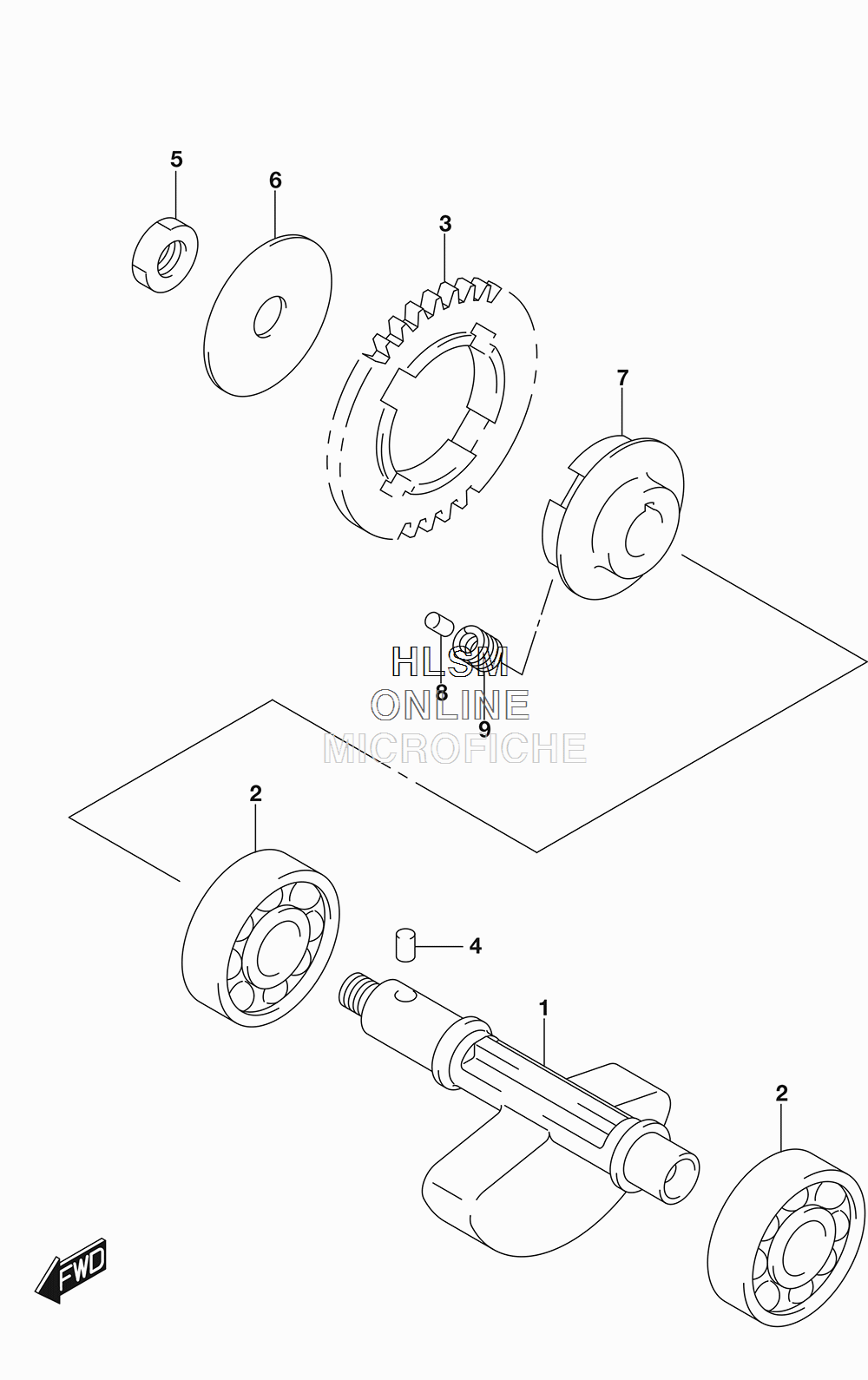

CRANK BALANCER для Suzuki DR-Z400SML7 - 2017 года выпуска
-
№АртикулНазвание
-
112651-29F00 BALANCER, CRANKBALANCER, CRANK
-
209262-15030 BEARING (15X42X13)BEARING (15X42X13)
-
312666-29F11 GEAR, CRANK BALANCER DRIVENGEAR, CRANK BALANCER DRIVEN
-
409261-05005 PIN (5X8)PIN (5X8)
-
509140-12039 NUTNUT
-
609181-12009 SHIM (12.2X47X1.6)SHIM (12.2X47X1.6)
-
712669-29F01 RACE, CRANKSHAFT BALANCER DRIVEN GEAR INNERRACE, CRANKSHAFT BALANCER DRIVEN GEAR INNER
-
809202-04017 PIN (4.5X9.5)PIN (4.5X9.5)
