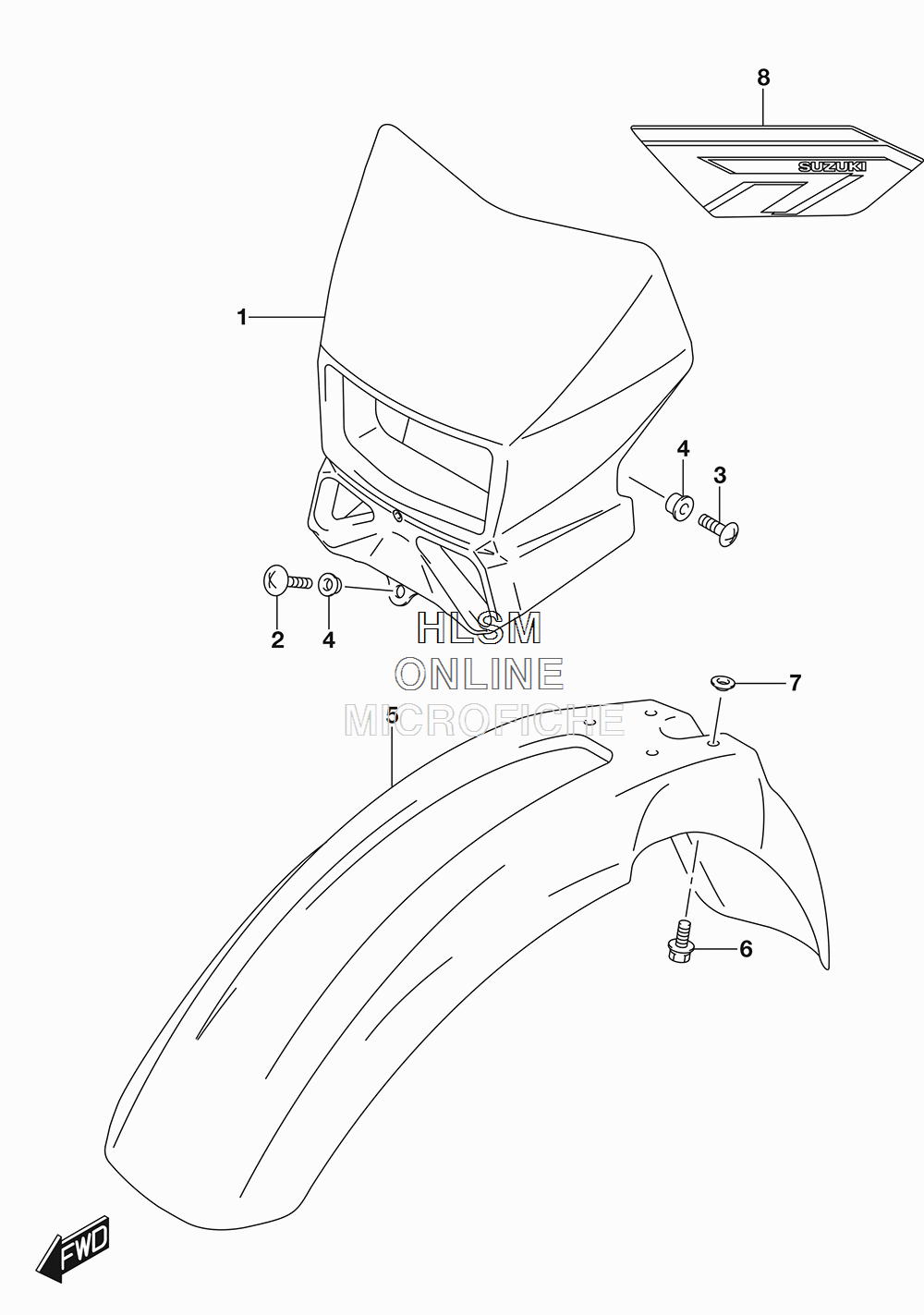

FENDER - FRONT для Suzuki DR-Z400SML7 - 2017 года выпуска
-
№АртикулНазвание
-
151811-29F50-30H COVER, HEADLAMP (30H - WHITE)COVER, HEADLAMP (30H - WHITE)
-
202142-0512B SCREWSCREW
-
302142-0612B SCREWSCREW
-
409169-06071 WASHERWASHER
-
553111-29FA0-30H FENDER, FRONT (30H - WHITE)FENDER, FRONT (30H - WHITE)
-
609116-06170 BOLT (6X16)BOLT (6X16)
-
709169-06073 WASHERWASHER
-
868725-29FB0-BCN TAPE, HEADLAMP HOUSING (BCN -)TAPE, HEADLAMP HOUSING (BCN -)
