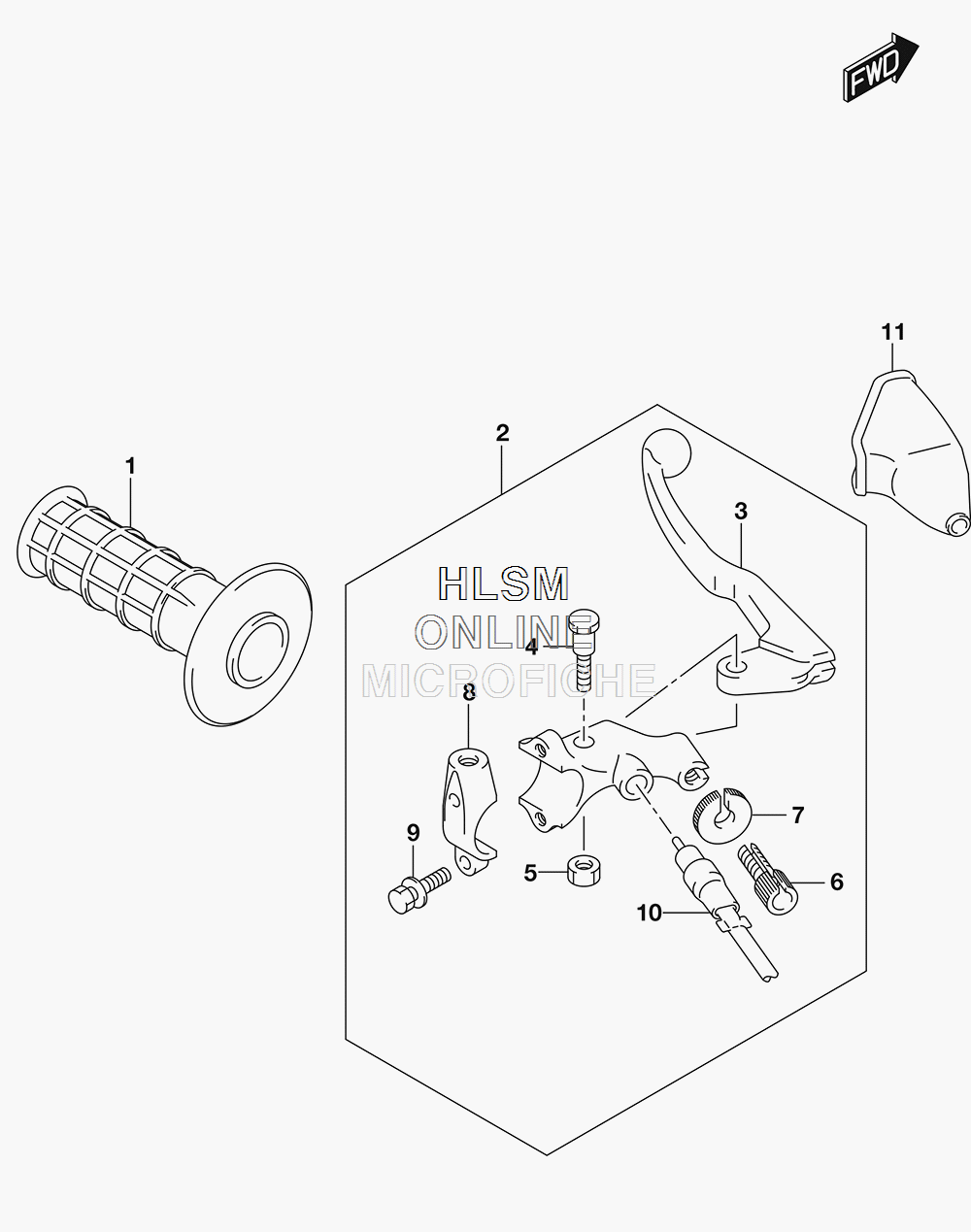

HANDLEBAR - LEFT HAND LEVER для Suzuki DR-Z400SML7 - 2017 года выпуска
-
№АртикулНазвание
-
157211-12D00 GRIP (LH)GRIP (LH)
-
257500-29F31 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
357621-13E00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
457431-21D11 ...BOLT, LEVER PIVOT...BOLT, LEVER PIVOT
-
508319-2106A ...NUT...NUT
-
657441-29F00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
757442-45C00 ...NUT, LOCK...NUT, LOCK
-
857512-13E00 ...BRACKET, HOLDER...BRACKET, HOLDER
-
957513-13E00 ...BOLT, BRACKET...BOLT, BRACKET
-
1057560-29F31 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
1157341-29F01 DUST COVER, CLUTCH CABLEDUST COVER, CLUTCH CABLE
