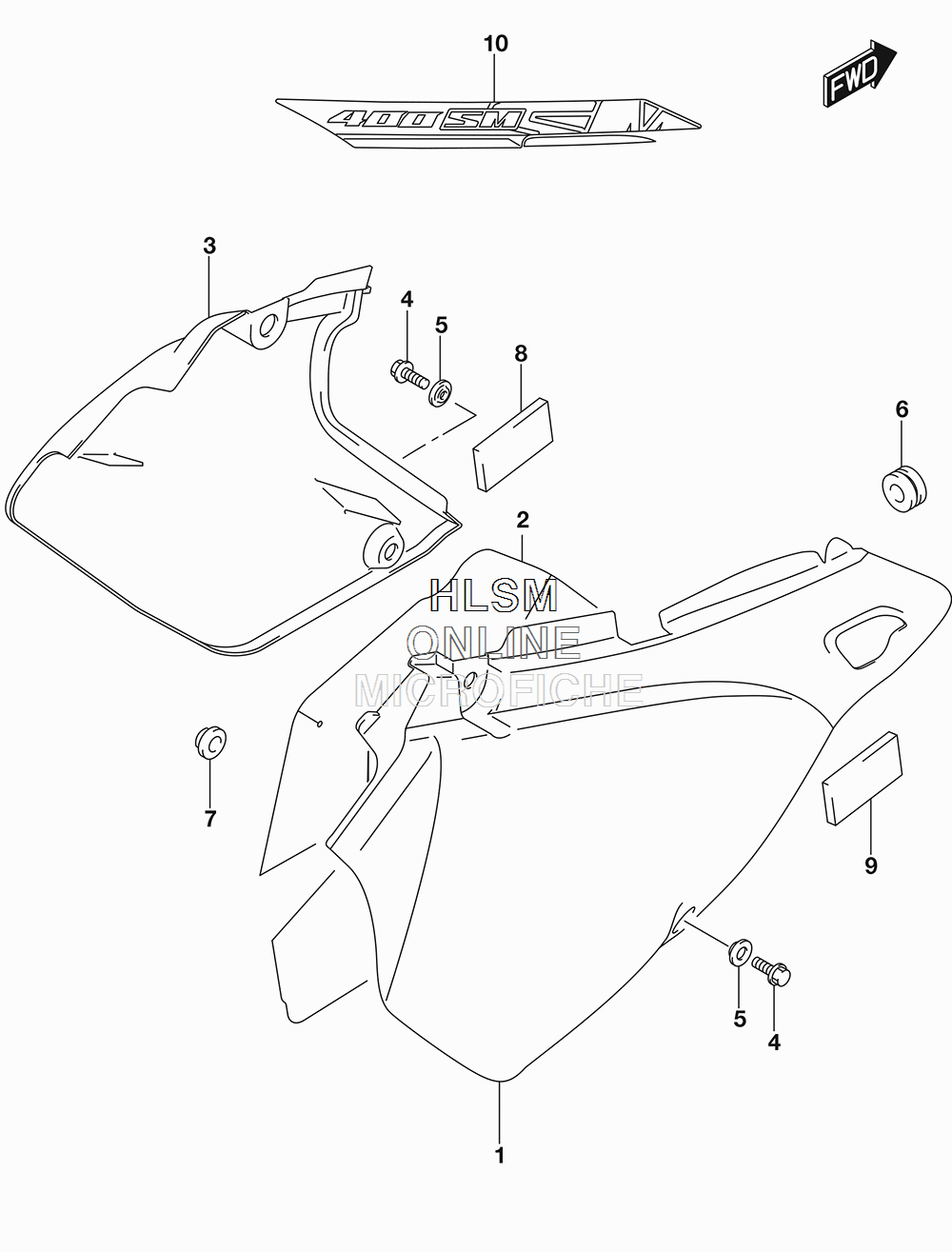

FRAME COVER (CALIF.) для Suzuki DR-Z400SML7 - 2017 года выпуска
-
№АртикулНазвание
-
147111-29FC0-30H COVER, FRAME (RH) (30H - WHITE)COVER, FRAME (RH) (30H - WHITE)
-
247166-29F00 SHIELD, FRAME COVER (RH)SHIELD, FRAME COVER (RH)
-
347211-29FC0-30H COVER, FRAME (LH) (30H - WHITE)COVER, FRAME (LH) (30H - WHITE)
-
409103-06273 BOLT (6X12)BOLT (6X12)
-
509169-06031 WASHERWASHER
-
609320-06504 CUSHIONCUSHION
-
709321-10018 CUSHIONCUSHION
-
847161-29F00 CUSHION, COVER FRONT (LH)CUSHION, COVER FRONT (LH)
-
971762-65G10 CUSHION, COVER FRONT (RH)CUSHION, COVER FRONT (RH)
-
1068135-29FM0-BCQ TAPE, FRAME COVER, (RH) (BCQ -)TAPE, FRAME COVER, (RH) (BCQ -)
