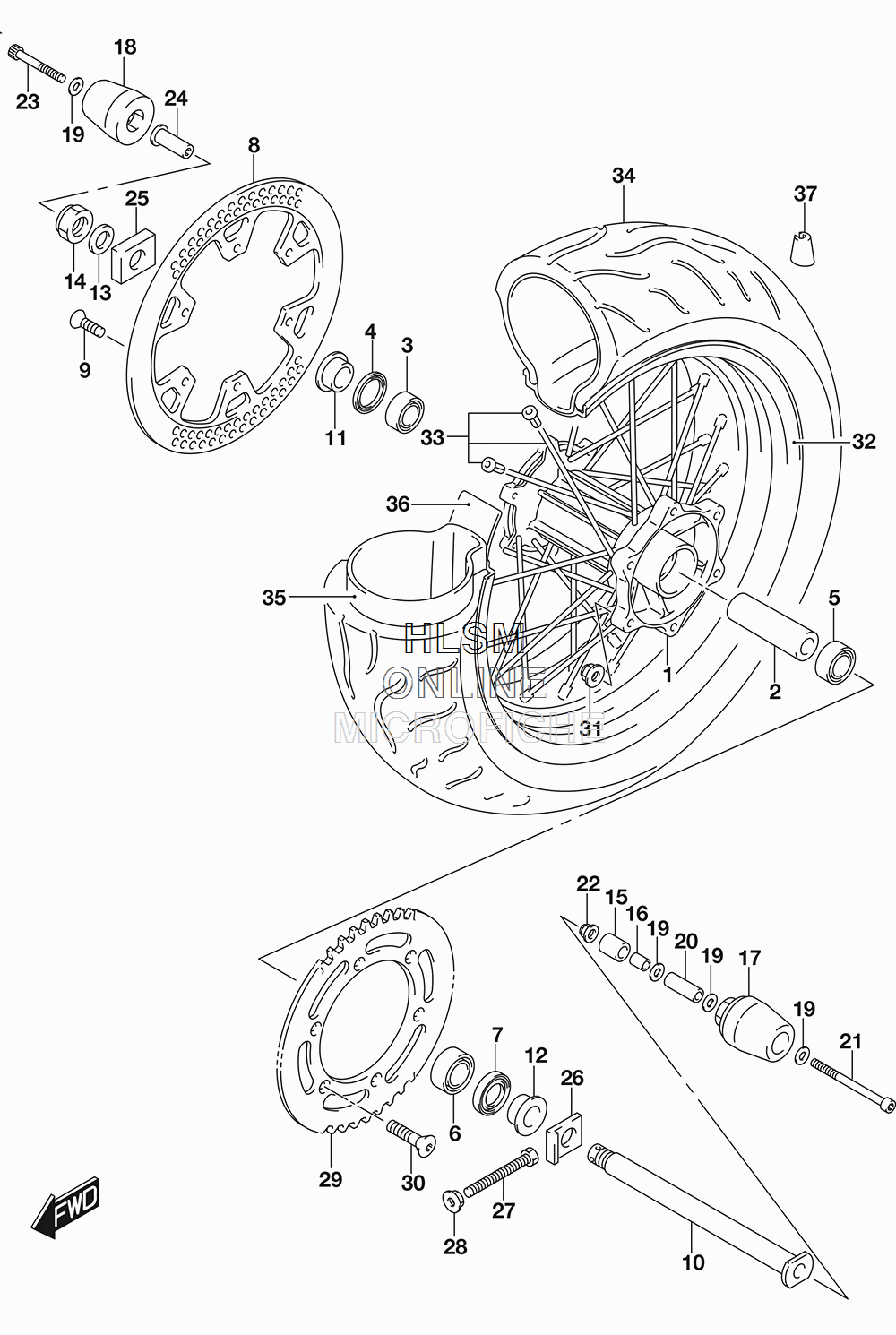

WHEEL - REAR для Suzuki DR-Z400SML7 - 2017 года выпуска
-
№АртикулНазвание
-
164111-29F10 HUB, REAR WHEELHUB, REAR WHEEL
-
264731-29F00 SPACER, BEARINGSPACER, BEARING
-
308133-60047 BEARINGBEARING
-
464841-28E00 SEAL, (RH) (29X42X6)SEAL, (RH) (29X42X6)
-
508133-60047 BEARINGBEARING
-
608123-62047 BEARINGBEARING
-
709283-29006 OIL SEAL (29X47X6)OIL SEAL (29X47X6)
-
869211-29F00 DISC, REAR BRAKEDISC, REAR BRAKE
-
909120-06014 SCREW (6X18)SCREW (6X18)
-
1064711-29F40 AXLE, REARAXLE, REAR
-
1164751-28E20 SPACER, (RH)SPACER, (RH)
-
1264751-28E20 SPACER, (LH)SPACER, (LH)
-
1309160-19022 WASHER (19X32X3.2)WASHER (19X32X3.2)
-
1408319-2118A NUTNUT
-
1554744-29F00 EXPANDER, AXLE SLIDEREXPANDER, AXLE SLIDER
-
1609180-05048 SPACER (5.5X8X10.5)SPACER (5.5X8X10.5)
-
1764755-29F00 SLIDER, RR AXLE, LSLIDER, RR AXLE, L
-
1854755-29F00 SLIDER, AXLESLIDER, AXLE
-
1909160-05029 WASHER (5.5X12X0.8)WASHER (5.5X12X0.8)
-
2009180-05060 SPACER (5.5X9.5X26)SPACER (5.5X9.5X26)
-
2109106-05021 BOLT (5X65)BOLT (5X65)
-
2208316-2005B NUTNUT
-
2307130-0540A BOLTBOLT
-
2409159-05050 NUTNUT
-
2561445-29F00 ADJUSTER, CHAIN (RH)ADJUSTER, CHAIN (RH)
-
2661446-29F00 ADJUSTER, CHAIN (LH)ADJUSTER, CHAIN (LH)
-
2709100-08287 BOLT (8X50)BOLT (8X50)
-
2809159-08034 NUTNUT
-
2964511-14E00 SPROCKET, REAR (NT:44)SPROCKET, REAR (NT:44)
-
3009120-08010 BOLT (8X30.5)BOLT (8X30.5)
-
3108319-3108A NUTNUT
-
3265311-29F60 RIM, RR WHEEL (17M/CXMT4.50 AL)RIM, RR WHEEL (17M/CXMT4.50 AL)
-
3365320-29F30 SPOKE ASSY, REAR WHEELSPOKE ASSY, REAR WHEEL
-
3465110-29FA0 TIRE, REAR (140/70R17M/C 66H) (D208 SM DUNLOP)TIRE, REAR (140/70R17M/C 66H) (D208 SM DUNLOP)
-
3565200-29FA0 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
3665261-29FA0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
37-155412-41F00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
37-255413-41F00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
