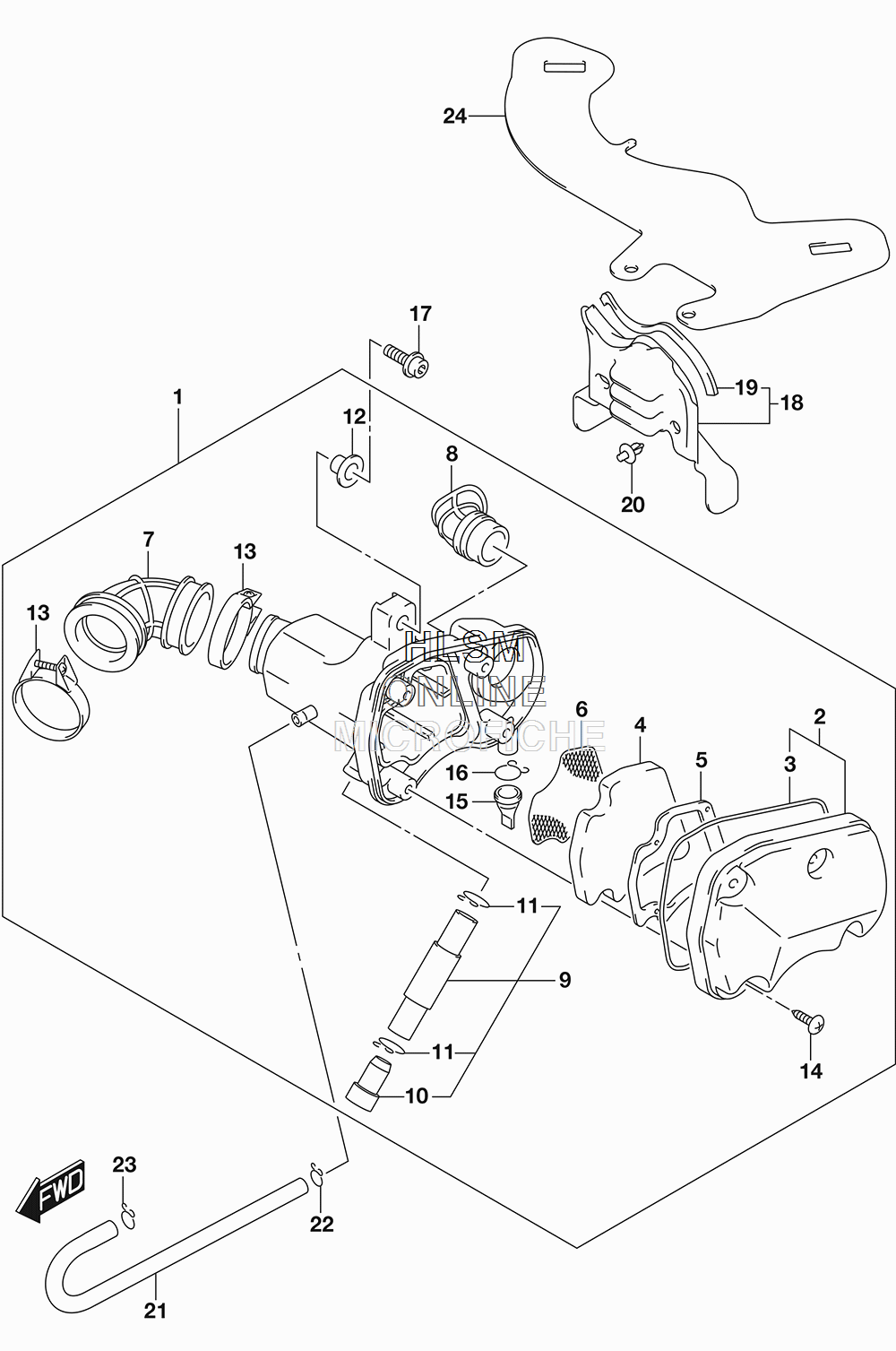

AIR CLEANER для Suzuki DR-Z70L7 - 2017 года выпуска
-
№АртикулНазвание
-
113700-14H00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-14H00 ...CAP...CAP
-
313746-14H00 ......GASKET......GASKET
-
413780-14H00 ...FILTER...FILTER
-
513791-14H00 ...HOLDER...HOLDER
-
613811-14H00 ...TRAP, FLAME...TRAP, FLAME
-
713881-14H00 ...TUBE, OUTLET...TUBE, OUTLET
-
813890-14H00 ...TUBE, INLET...TUBE, INLET
-
913870-14H00 ...TUBE, DRAIN...TUBE, DRAIN
-
1013877-00190 ......PLUG......PLUG
-
1109401-14301 ......CLIP......CLIP
-
1209180-06331 ...SPACER (6.2X8.4X10.9)...SPACER (6.2X8.4X10.9)
-
1309402-36208 ...CLAMP...CLAMP
-
1402142-0514B ...SCREW...SCREW
-
1513878-39C10 ...TUBE, DRAIN...TUBE, DRAIN
-
1609401-10410 ...CLIP...CLIP
-
1707120-0620A BOLTBOLT
-
1813840-14H00 COVER, CLEANER INLETCOVER, CLEANER INLET
-
1913841-14H00 ...CUSHION...CUSHION
-
2009409-06322-5PK CLIP (BLACK)CLIP (BLACK)
-
2113851-14H00 HOSE, BREATHERHOSE, BREATHER
-
2209401-09101 CLIPCLIP
-
2309401-10410 CLIPCLIP
-
2413842-14H00 SHEET, AIR CLEANER INLETSHEET, AIR CLEANER INLET
