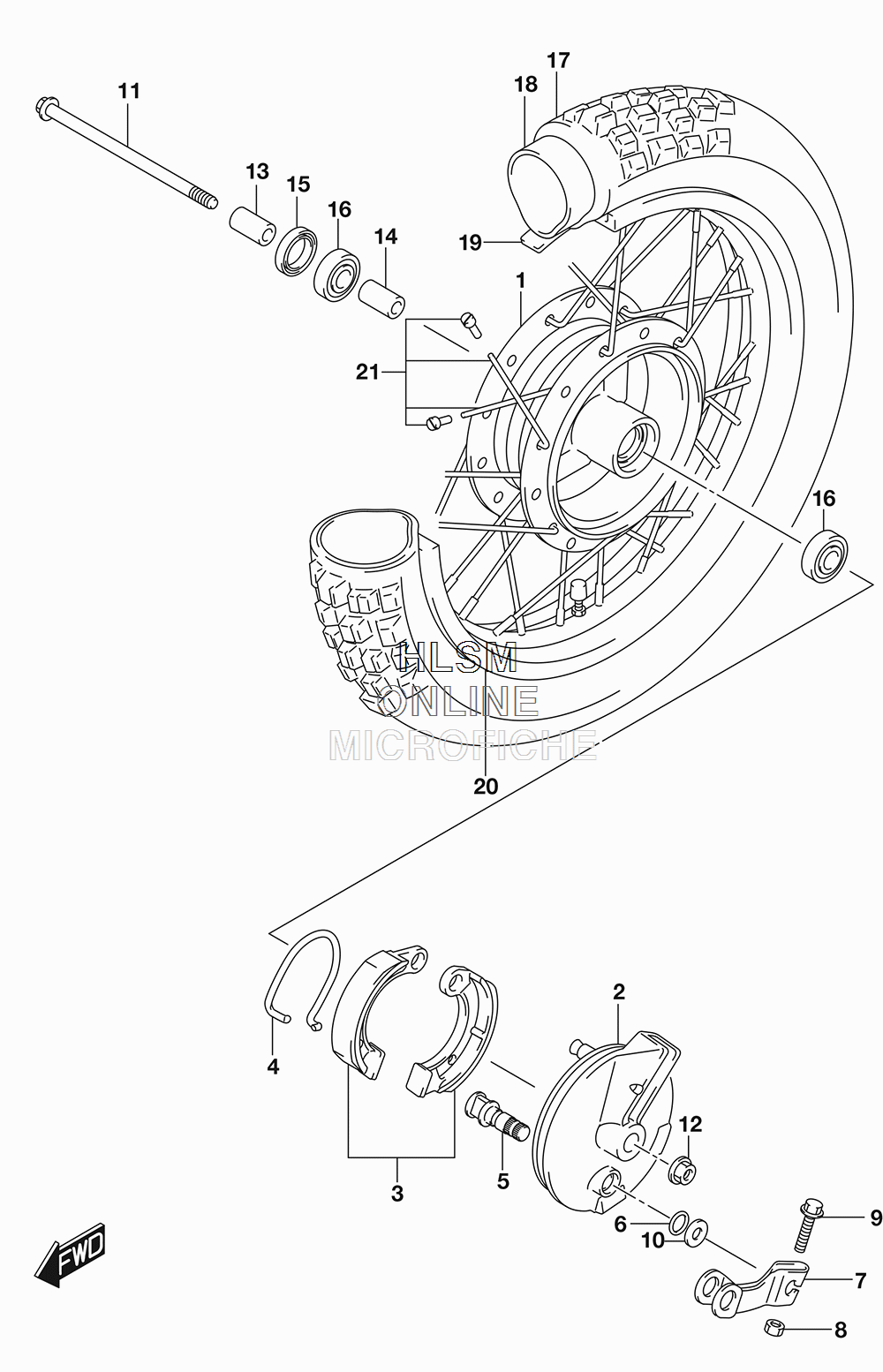

WHEEL - FRONT для Suzuki DR-Z70L7 - 2017 года выпуска
-
№АртикулНазвание
-
154110-14H00 DRUM, FRONT HUBDRUM, FRONT HUB
-
254210-14H00 PANEL, FRONT BRAKE ANCHORPANEL, FRONT BRAKE ANCHOR
-
354400-14870 SHOE SET, BRAKESHOE SET, BRAKE
-
454424-14H00 SPRINGSPRING
-
554440-14H00 SHAFT, BRAKE CAMSHAFT, BRAKE CAM
-
609280-10006 O RING (D:2.4,ID:9.8)O RING (D:2.4,ID:9.8)
-
754451-14H00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
808310-0005A NUTNUT
-
901550-0525A BOLTBOLT
-
1009160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
1154711-14H00 AXLE, FRONTAXLE, FRONT
-
1208319-3112A NUTNUT
-
1354741-14H00 SPACER, AXLE (RH)SPACER, AXLE (RH)
-
1454731-14H00 SPACER, FRONT HUB BEARINGSPACER, FRONT HUB BEARING
-
1509282-20008 OIL SEAL (32X20X5)OIL SEAL (32X20X5)
-
1608133-62017 BEARINGBEARING
-
1755100-14H00 TIRE, FRONT (2.50-10 33J) (IX07S IRC)TIRE, FRONT (2.50-10 33J) (IX07S IRC)
-
1855200-14H00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1955261-14H10 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2055311-14H00 RIM, WHEEL (10X1.40)RIM, WHEEL (10X1.40)
-
2155320-14H00 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
