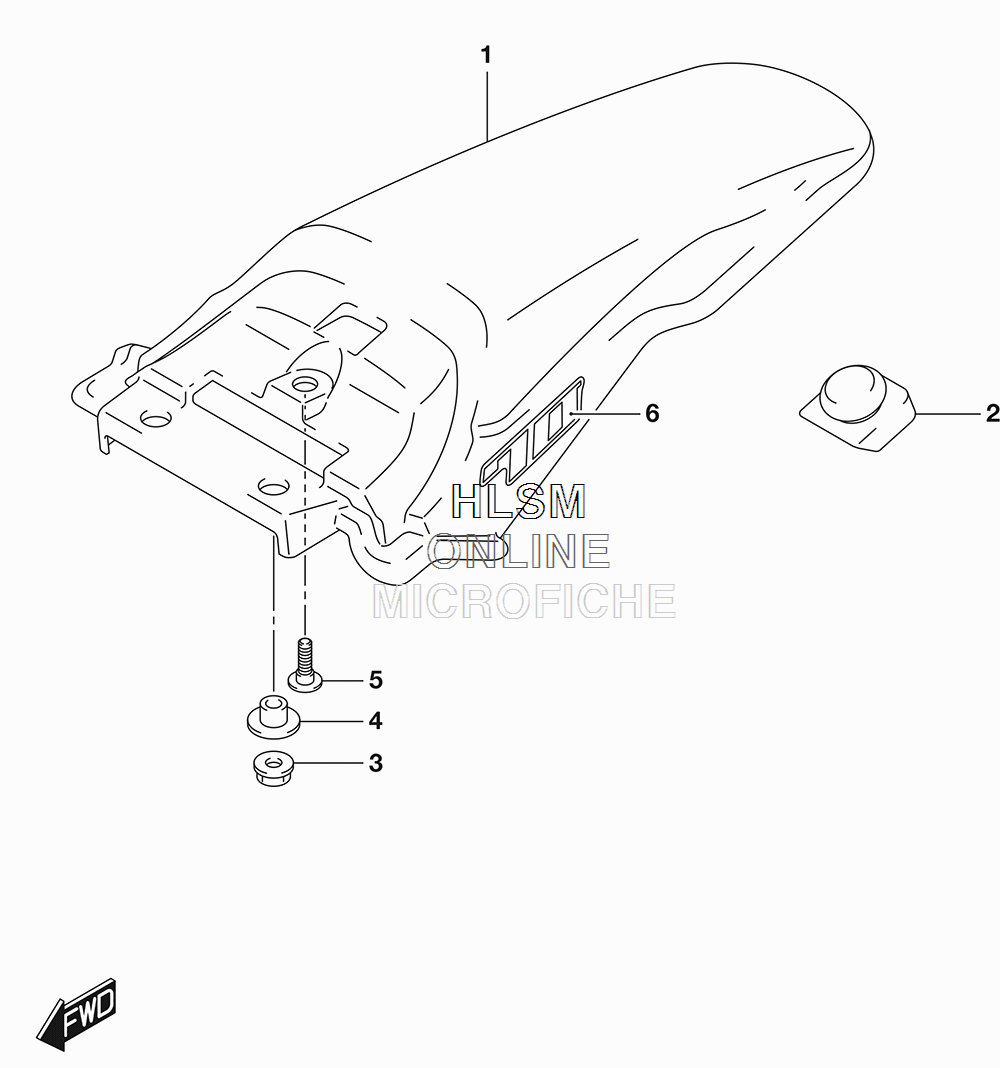

FENDER - REAR для Suzuki DR-Z70L7 - 2017 года выпуска
-
№АртикулНазвание
-
163111-14H00-019 FENDER, REAR (019 - BLACK)FENDER, REAR (019 - BLACK)
-
263159-14H00 CUSHIONCUSHION
-
308319-3106A NUTNUT
-
409180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
503541-0516A SCREWSCREW
-
668171-14H00-8YM EMBLEM (8YM - WHITE/BLACK)EMBLEM (8YM - WHITE/BLACK)
