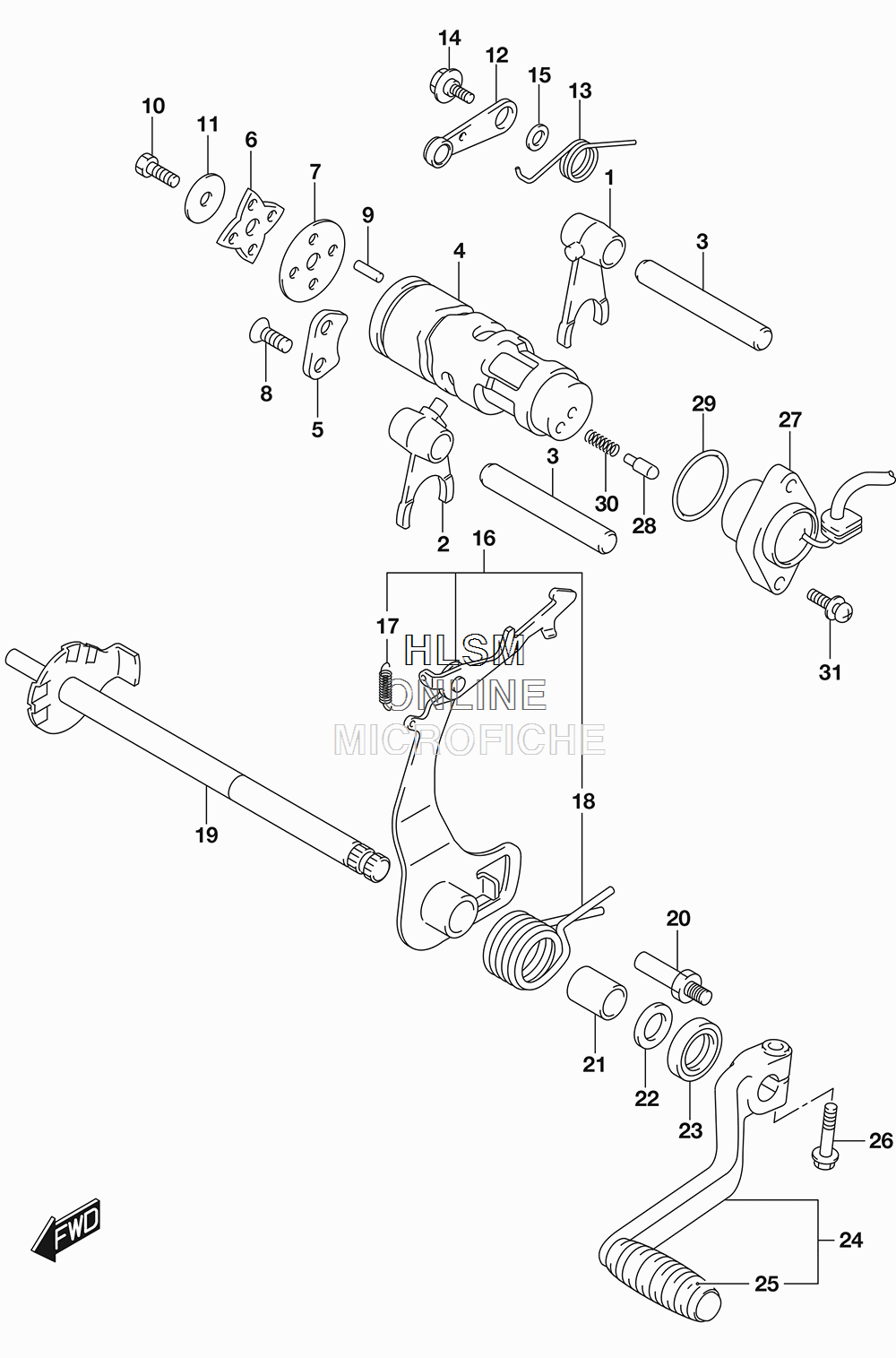

GEAR SHIFTING для Suzuki DR-Z70L7 - 2017 года выпуска
-
№АртикулНазвание
-
125211-09400 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-02A00 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325421-04702 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
425311-14H10 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
525341-09400 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
625381-35401 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
725382-35401 GUIDE, GR SHIKFT CAMGUIDE, GR SHIKFT CAM
-
809126-06014 SCREW (6X16)SCREW (6X16)
-
909261-04002 ROLLER (4X13.8)ROLLER (4X13.8)
-
1001547-0616A BOLTBOLT
-
1108211-06221 STOPPERSTOPPER
-
1225350-09D00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1325355-14H00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
1409111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1508211-06121 WASHERWASHER
-
1625501-09451 ARM ASSY, GEAR SHIFTARM ASSY, GEAR SHIFT
-
1709443-05030 ...SPRING...SPRING
-
1809444-26025 ...SPRING...SPRING
-
1925510-09405 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2025671-35410 STOPPER, SHAFT ARMSTOPPER, SHAFT ARM
-
2109180-12036 SPACER (12X16X20)SPACER (12X16X20)
-
2209181-12167 SHIM (12X20X1)SHIM (12X20X1)
-
2309285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2425600-14H00 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
2525652-16500 ...RUBGER, GEAR SHIFT PEDAL...RUBGER, GEAR SHIFT PEDAL
-
2601500-0620A BOLTBOLT
-
2737720-09420 BASE ASSY, NEUT SW TERMBASE ASSY, NEUT SW TERM
-
2809209-05011 PIN (5X15.5)PIN (5X15.5)
-
2909280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
3009440-04010 SPRINGSPRING
-
3102112-1516A SCREWSCREW
