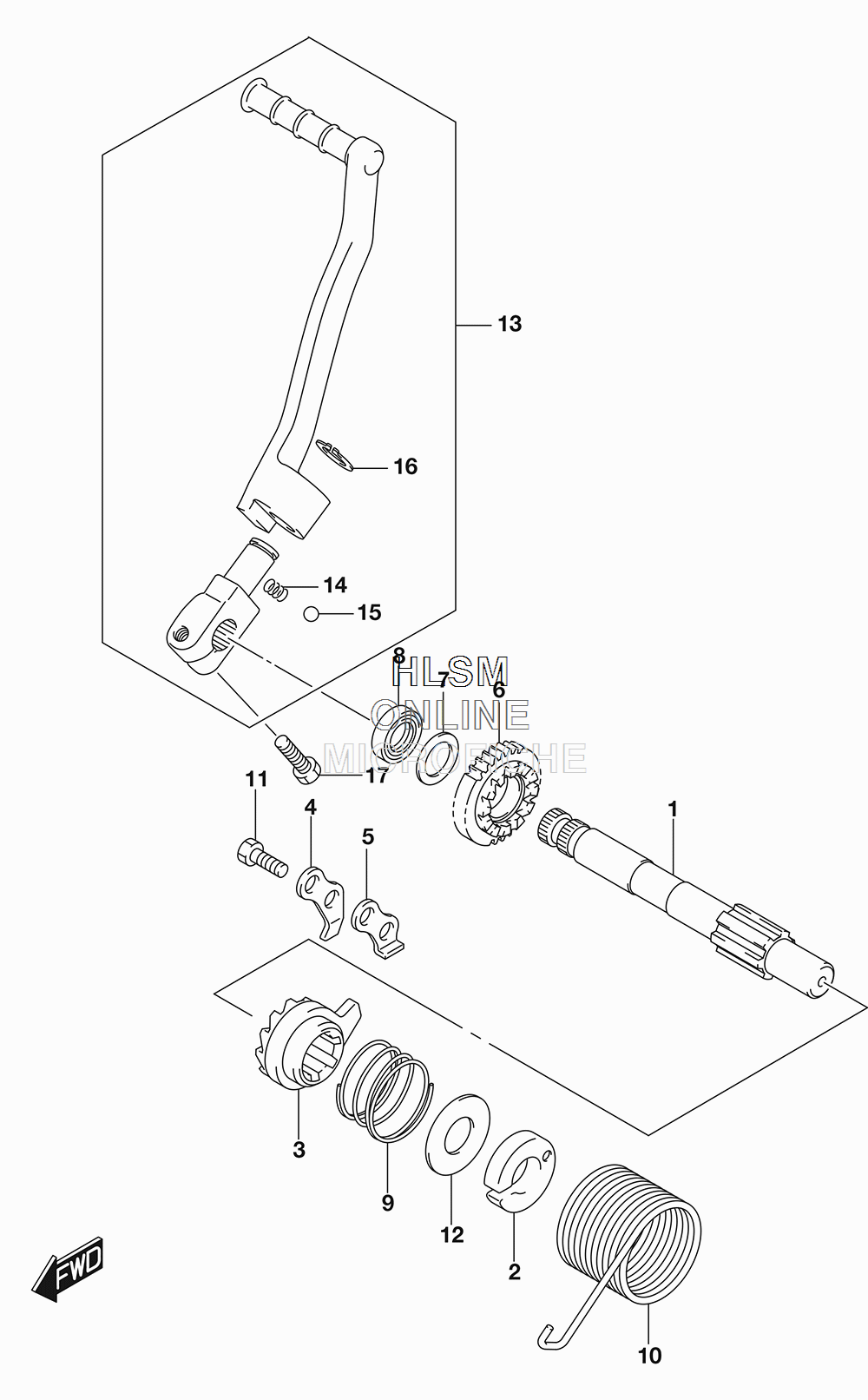

KICK STARTER для Suzuki DR-Z70L7 - 2017 года выпуска
-
№АртикулНазвание
-
126211-09421 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-09400 GUIDE, KICK STARTER SPRINGGUIDE, KICK STARTER SPRING
-
326231-09410 STARTER, KICKSTARTER, KICK
-
426232-09401 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
526233-09400 STOPPER, KICK STARTERSTOPPER, KICK STARTER
-
626241-09402 GEAR, KICK STARTER DRIVE (NT:20)GEAR, KICK STARTER DRIVE (NT:20)
-
709181-14167 SHIM (14X22X1)SHIM (14X22X1)
-
809285-14001 OIL SEAL (14X24X6)OIL SEAL (14X24X6)
-
909440-30007 SPRINGSPRING
-
1009448-38004 SPRINGSPRING
-
1101547-0612A BOLTBOLT
-
1208211-14321 WASHERWASHER
-
1326300-14H00 LEVER ASSY, KICK STARTERLEVER ASSY, KICK STARTER
-
1409440-05003 ...SPRING...SPRING
-
1506111-07004 ...BALL...BALL
-
1608331-3113A ...CIRCLIP...CIRCLIP
-
1701547-0620A BOLTBOLT
