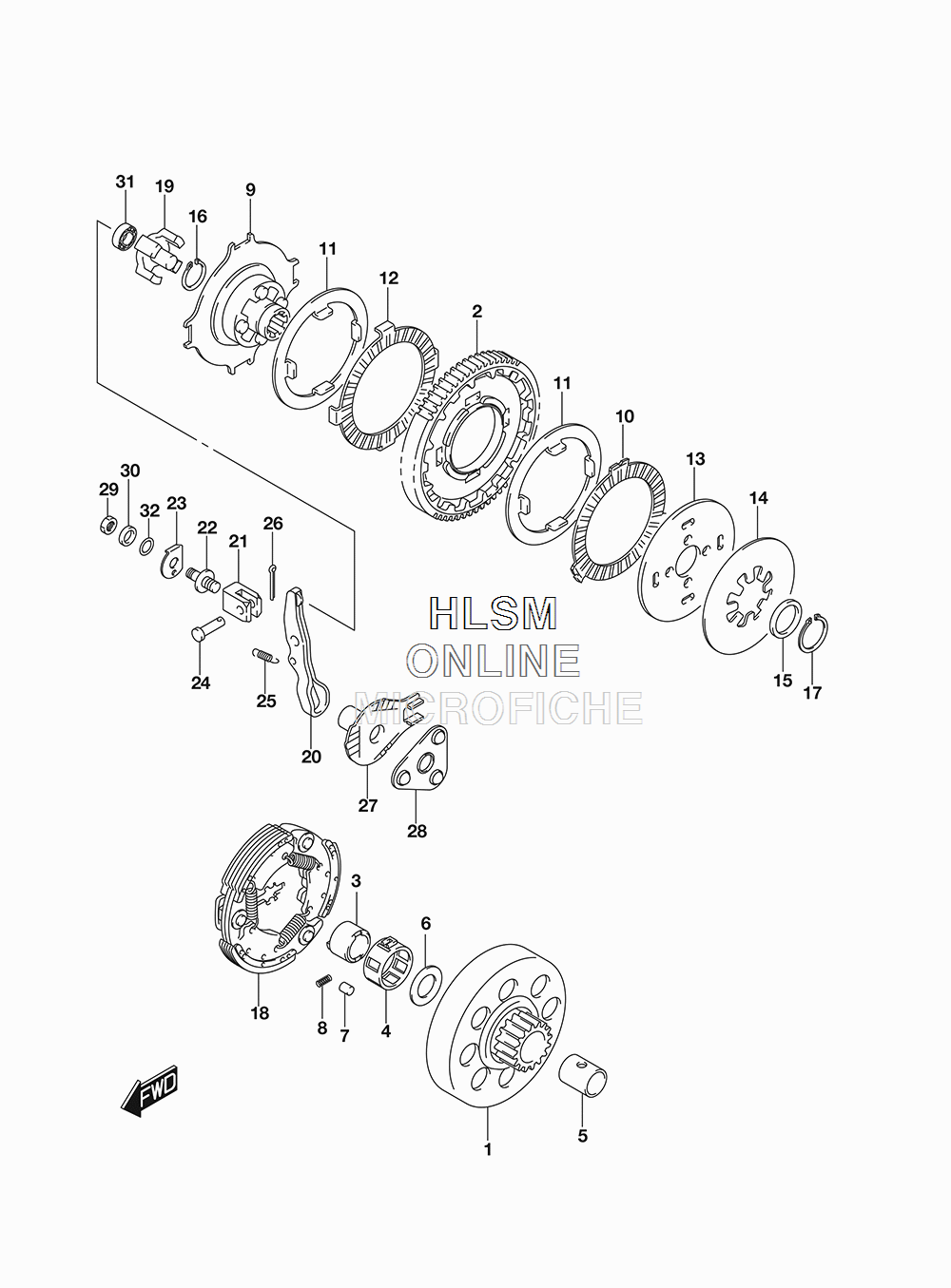

CLUTCH для Suzuki DR-Z70L8 - 2018 года выпуска
-
№АртикулНазвание
-
121110-02A03 GEAR ASSY, PRIMARY DRIVE (NT:17)GEAR ASSY, PRIMARY DRIVE (NT:17)
-
221210-36G00 GEAR, PRIMARY DRIVEN (NT:65)GEAR, PRIMARY DRIVEN (NT:65)
-
321631-02A04 RACE, ONE WAY CLUTCH INNERRACE, ONE WAY CLUTCH INNER
-
421652-30D01 RETAINER, ONE WAY CLUTCHRETAINER, ONE WAY CLUTCH
-
509180-16031 SPACER (16X21X23.5)SPACER (16X21X23.5)
-
609181-16214 SHIM (16X28X0.5)SHIM (16X28X0.5)
-
709261-07006 ROLLER (7X10)ROLLER (7X10)
-
809440-02003 SPRINGSPRING
-
921410-09403 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
1021441-09D02 PLATE, CLUTCH DRIVE (T:2.6)PLATE, CLUTCH DRIVE (T:2.6)
-
1121451-14H00 PLATE, CLUTCH DRIVEN (T:2.1)PLATE, CLUTCH DRIVEN (T:2.1)
-
1221452-35401 PLATE, CLUTCH DRIVEN NO.2 (T:2.6)PLATE, CLUTCH DRIVEN NO.2 (T:2.6)
-
1321461-30A00 PLATE, CLUTCH PRESSURE (T:2.4)PLATE, CLUTCH PRESSURE (T:2.4)
-
1409164-22013 WASHERWASHER
-
1509180-22033 SPACER (22X28X4)SPACER (22X28X4)
-
1608331-31179 CIRCLIPCIRCLIP
-
1708331-31219 CIRCLIPCIRCLIP
-
1821501-02A02 CLUTCH ASSY, SHOECLUTCH ASSY, SHOE
-
1923121-30A01 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2023221-09405 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2123222-09401 BOSS, CLUTCH RELEASE ARMBOSS, CLUTCH RELEASE ARM
-
2223223-09404 BOLT, CLUTCH RELEASE ADJUSTBOLT, CLUTCH RELEASE ADJUST
-
2309169-06046 WASHERWASHER
-
2409200-07005 PINPIN
-
2509443-06053 SPRINGSPRING
-
2604111-1615A PINPIN
-
2723230-30A01 GUIDE, RELEASE BALL OUTERGUIDE, RELEASE BALL OUTER
-
2823250-35402 BALL, CLUTCH RELEASEBALL, CLUTCH RELEASE
-
2909140-06023 NUTNUT
-
3009160-06123 WASHER (6.5X13X3.2)WASHER (6.5X13X3.2)
-
3109266-16002 BEARING (16X6)BEARING (16X6)
-
3209280-06005 O RING (D:1.9,ID:5.7)O RING (D:1.9,ID:5.7)
