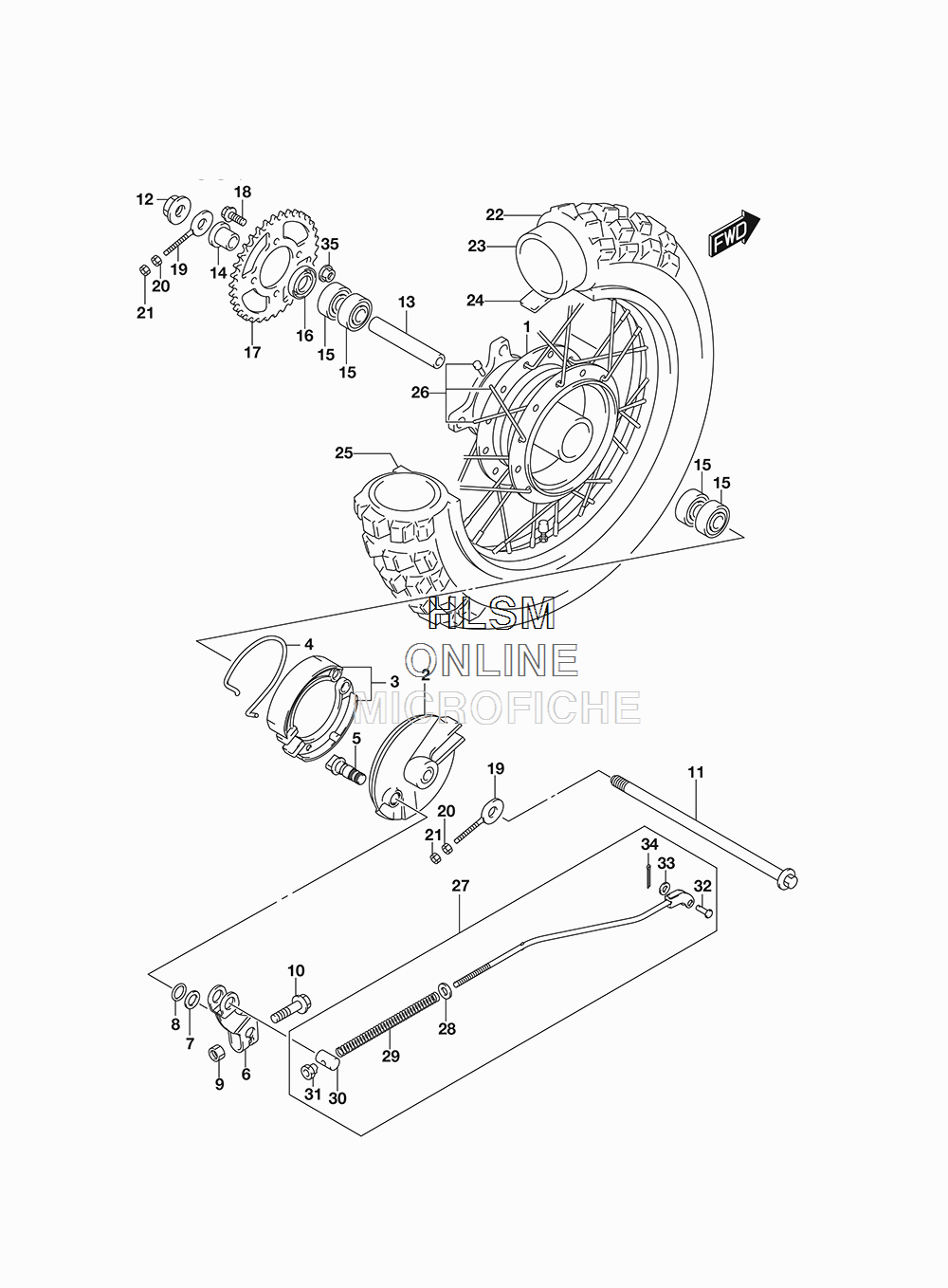

WHEEL - REAR для Suzuki DR-Z70L8 - 2018 года выпуска
-
№АртикулНазвание
-
164110-14H00 DRUM, REAR HUBDRUM, REAR HUB
-
254210-14H00 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
354400-14870 SHOE SET, BRAKESHOE SET, BRAKE
-
454424-14H00 SPRINGSPRING
-
554440-14H00 SHAFT, BRAKE CAMSHAFT, BRAKE CAM
-
654451-14H00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
709160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
809280-10006 O RING (D:2.4,ID:9.8)O RING (D:2.4,ID:9.8)
-
908310-0005A NUTNUT
-
1001550-0525A BOLTBOLT
-
1164711-14H00 AXLE, REARAXLE, REAR
-
1208319-3112A NUTNUT
-
1364731-14H00 SPACER, HUBSPACER, HUB
-
1464751-14H00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1508133-62017 BEARINGBEARING
-
1609282-20008 OIL SEAL (32X20X5)OIL SEAL (32X20X5)
-
1764511-14H00 SPROCKET, REAR (NT:33)SPROCKET, REAR (NT:33)
-
1809103-08359 BOLT (8X28)BOLT (8X28)
-
1961411-14H00 ADJUSTER, CHAINADJUSTER, CHAIN
-
2009140-06030 NUTNUT
-
2108310-0006A NUTNUT
-
2255100-14H00 TIRE, REAR (2.50-10 33J) (IX07S IRC)TIRE, REAR (2.50-10 33J) (IX07S IRC)
-
2355200-14H00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2455261-14H10 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2555311-14H00 RIM, WHEEL (10X1.40)RIM, WHEEL (10X1.40)
-
2655320-14H00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
2743300-14H00 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
2808322-0106A ...WASHER...WASHER
-
2909440-09004 ...SPRING...SPRING
-
3009209-11002 ...PIN (11X18)...PIN (11X18)
-
3109150-06010 ...NUT...NUT
-
3209200-06013 ...PIN (L:13.5)...PIN (L:13.5)
-
3308322-0106A ...WASHER...WASHER
-
3404111-2020A ...COTTER PIN...COTTER PIN
-
3508319-3108A NUTNUT
