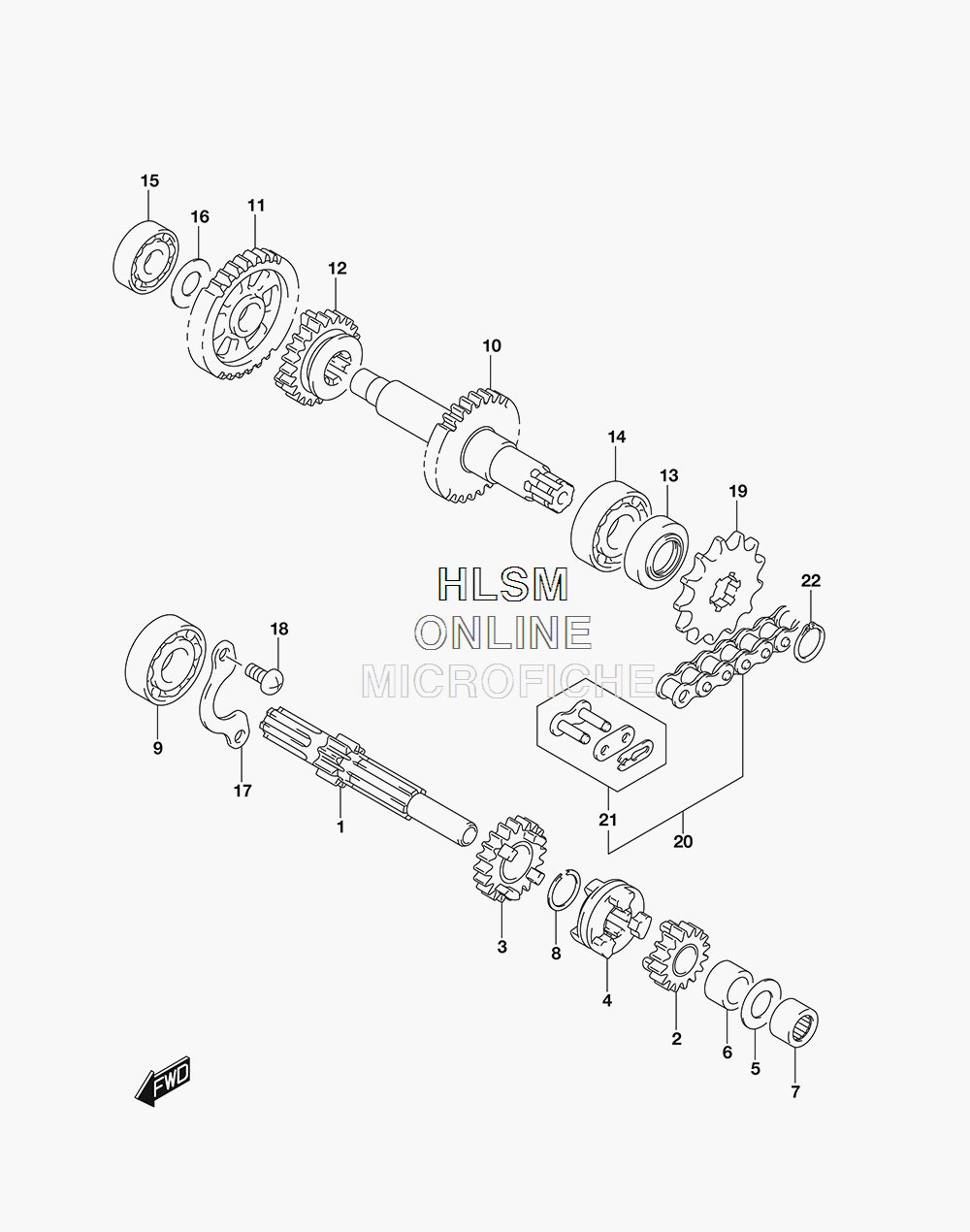

TRANSMISSION для Suzuki DR-Z70L8 - 2018 года выпуска
-
№АртикулНазвание
-
124121-02A02 SHAFT, COUNTER (NT:10)SHAFT, COUNTER (NT:10)
-
224220-02A01 GEAR, 2ND DRIVE (NT:16)GEAR, 2ND DRIVE (NT:16)
-
324231-35404 GEAR, 3RD DRIVE (NT:20)GEAR, 3RD DRIVE (NT:20)
-
424421-14H00 WHEEL, SLIDING DOGWHEEL, SLIDING DOG
-
509160-13006 WASHER (13X24X1)WASHER (13X24X1)
-
609180-13008 SPACER (13X19X12.5)SPACER (13X19X12.5)
-
709263-13002 BEARING (13X19X12)BEARING (13X19X12)
-
809380-17007 CIRCLIPCIRCLIP
-
908110-62030 BEARINGBEARING
-
1024130-02A00 SHAFT, DRIVE (NT:29)SHAFT, DRIVE (NT:29)
-
1124310-30A01 GEAR, 1ST DRIVEN (NT:34)GEAR, 1ST DRIVEN (NT:34)
-
1224331-02A01 GEAR, 3RD DRIVEN (NT:24)GEAR, 3RD DRIVEN (NT:24)
-
1309283-17025 OIL SEAL (17X30X7)OIL SEAL (17X30X7)
-
1408110-62030 BEARINGBEARING
-
1508113-62017 BEARINGBEARING
-
1608211-12241 WASHERWASHER
-
1724741-09401 RETAINER, CENTER SHAFT BEARINRETAINER, CENTER SHAFT BEARIN
-
1809125-06122 SCREW (6X12)SCREW (6X12)
-
1927511-46000 SPROCKET, ENGINE (NT:13)SPROCKET, ENGINE (NT:13)
-
2027600-20911-078 CHAIN ASSY, DRIVE (DID428)CHAIN ASSY, DRIVE (DID428)
-
2127620-20911 ...JOINT SET, CHAIN...JOINT SET, CHAIN
-
2208331-31166 CIRCLIPCIRCLIP
