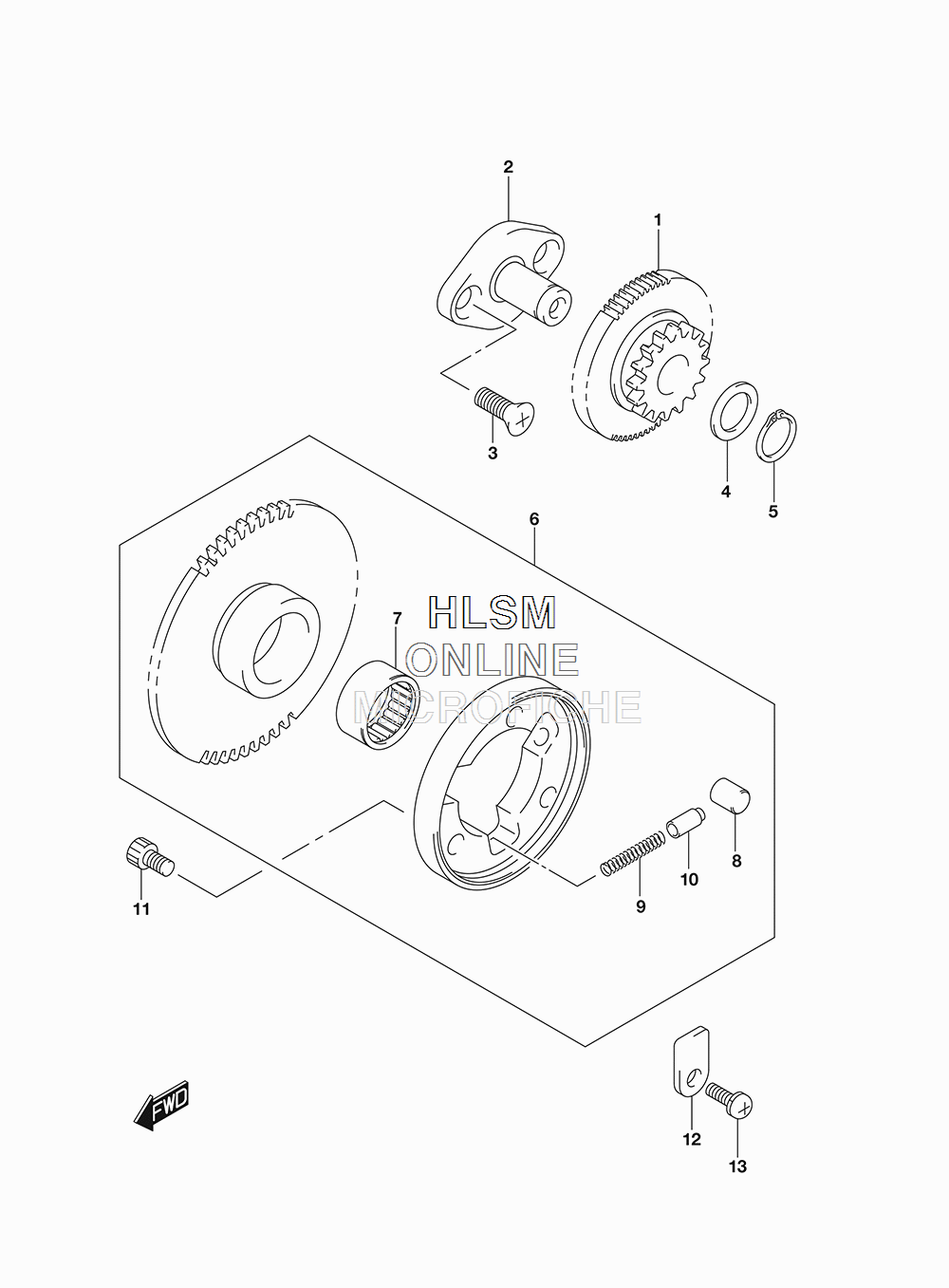

STARTER CLUTCH для Suzuki DR-Z70L8 - 2018 года выпуска
-
№АртикулНазвание
-
112611-09410 GEAR, STARTER IDLE (NT:16/68)GEAR, STARTER IDLE (NT:16/68)
-
212612-23F01 SHAFT, STARTER IDLE GEARSHAFT, STARTER IDLE GEAR
-
302122-0616A SCREWSCREW
-
409160-13010 WASHER (13X20X1)WASHER (13X20X1)
-
508331-31139 CIRCLIPCIRCLIP
-
612600-09855 CLUTCH SET, STARTER (NT:49)CLUTCH SET, STARTER (NT:49)
-
709263-17025 ...BEARING (17X25X15)...BEARING (17X25X15)
-
809261-09002 ...PIN (9X10)...PIN (9X10)
-
909440-03004 ...SPRING...SPRING
-
1012633-05300 ...PIECE, STARTER CLUTCH PUSH...PIECE, STARTER CLUTCH PUSH
-
1109106-06075 BOLT (6X12)BOLT (6X12)
-
1212629-09410 PLATE, STARTER CLUTCH GEARPLATE, STARTER CLUTCH GEAR
-
1302112-3612A SCREWSCREW
