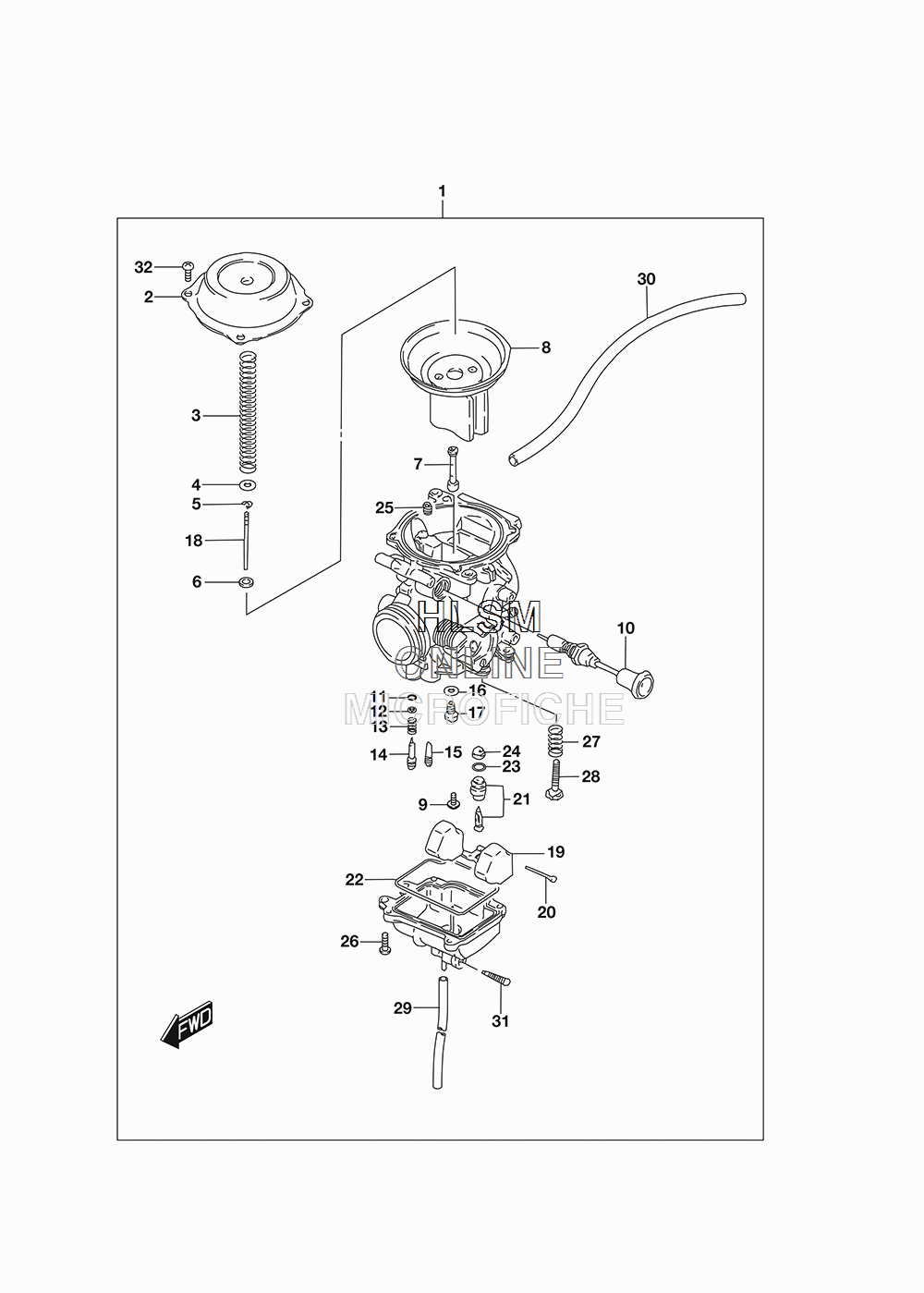

CARBURETOR (CALIF.) для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
113200-42AE2 CARBURETOR ASSYCARBURETOR ASSY
-
213502-42A00 ...COVER...COVER
-
313417-42A00 ...SPRING...SPRING
-
413382-42A00 ...RING...RING
-
513394-10010 ...CLIP, NEEDLE...CLIP, NEEDLE
-
613387-47010 ...RING...RING
-
709494-00881 ...JET, NEEDLE (P-5M)...JET, NEEDLE (P-5M)
-
813500-42A00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
913602-43410 ...SCREW...SCREW
-
1013411-42A20 ...PLUNGER ASSY...PLUNGER ASSY
-
1113295-29900 ...O RING...O RING
-
1213291-29900 ...WASHER...WASHER
-
1313268-47070 ...SPRING...SPRING
-
1413279-47070 ...SCREW, PILOT...SCREW, PILOT
-
1509492-35008 ...JET, PILOT (35)...JET, PILOT (35)
-
1613382-03110 ...WASHER...WASHER
-
1709491-25010 ...JET, MAIN (125)...JET, MAIN (125)
-
1813383-42AC0 ...NEEDLE, JET (5D77-1)...NEEDLE, JET (5D77-1)
-
1913250-42A00 ...FLOAT...FLOAT
-
2013254-92311 ...PIN, FLOAT...PIN, FLOAT
-
2113370-44500 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
2213251-42A00 ...O RING, FLOAT CHAMBER...O RING, FLOAT CHAMBER
-
2313374-35C00 ...O RING, NEEDLE VALVE SEAT...O RING, NEEDLE VALVE SEAT
-
2413376-19F00 ...FILTER...FILTER
-
2509493-27001 ...JET, AIR (135)...JET, AIR (135)
-
2613602-05A40 ...SCREW...SCREW
-
2713268-37420 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
2813267-25D00 ...ADJUSTER...ADJUSTER
-
2909355-30705-600 ...HOSE (3X7X600) (L:600->400)...HOSE (3X7X600) (L:600->400)
-
3009352-50823-600 ...HOSE (5X8.2X600) (L:600->250)...HOSE (5X8.2X600) (L:600->250)
-
3113247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
3202112-0408A ...SCREW...SCREW
