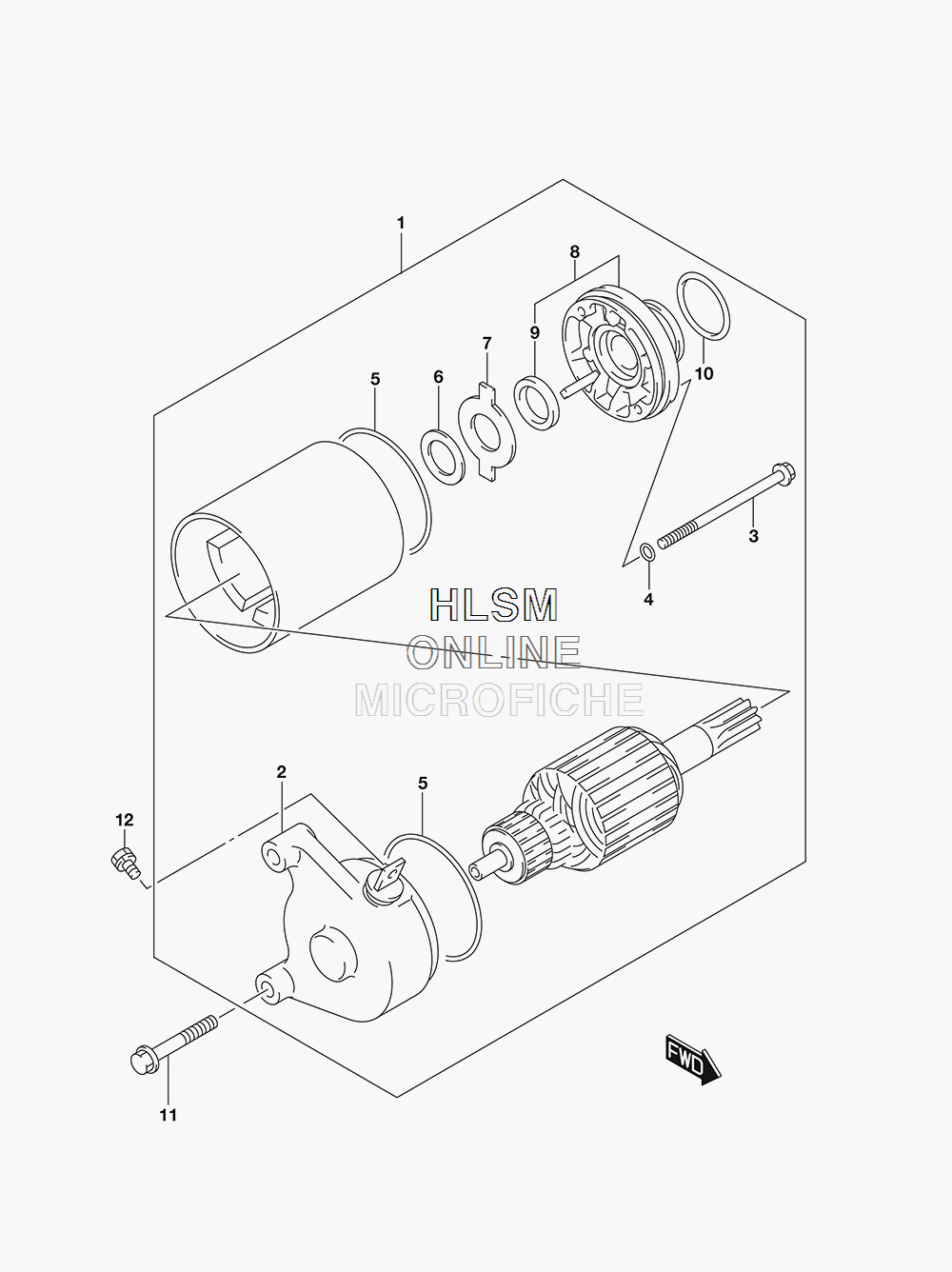

STARTING MOTOR для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
131100-42A20 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231175-42A20 ...FRAME ASSY, COMMUTATOR END...FRAME ASSY, COMMUTATOR END
-
331281-08F00 ...BOLT...BOLT
-
431156-08F00 ...O RING...O RING
-
531264-32C10 ...O RING...O RING
-
631361-38300 ...SHIM...SHIM
-
731361-32C10 ...PLATE, LOCK...PLATE, LOCK
-
831150-08F00 ...BRACKET...BRACKET
-
931153-49210 ......OIL SEAL......OIL SEAL
-
1009280-24003 ...O RING (D:3, ID:24.5)...O RING (D:3, ID:24.5)
-
1101547-0630A BOLTBOLT
-
1209137-05004 SCREW (5X8)SCREW (5X8)
