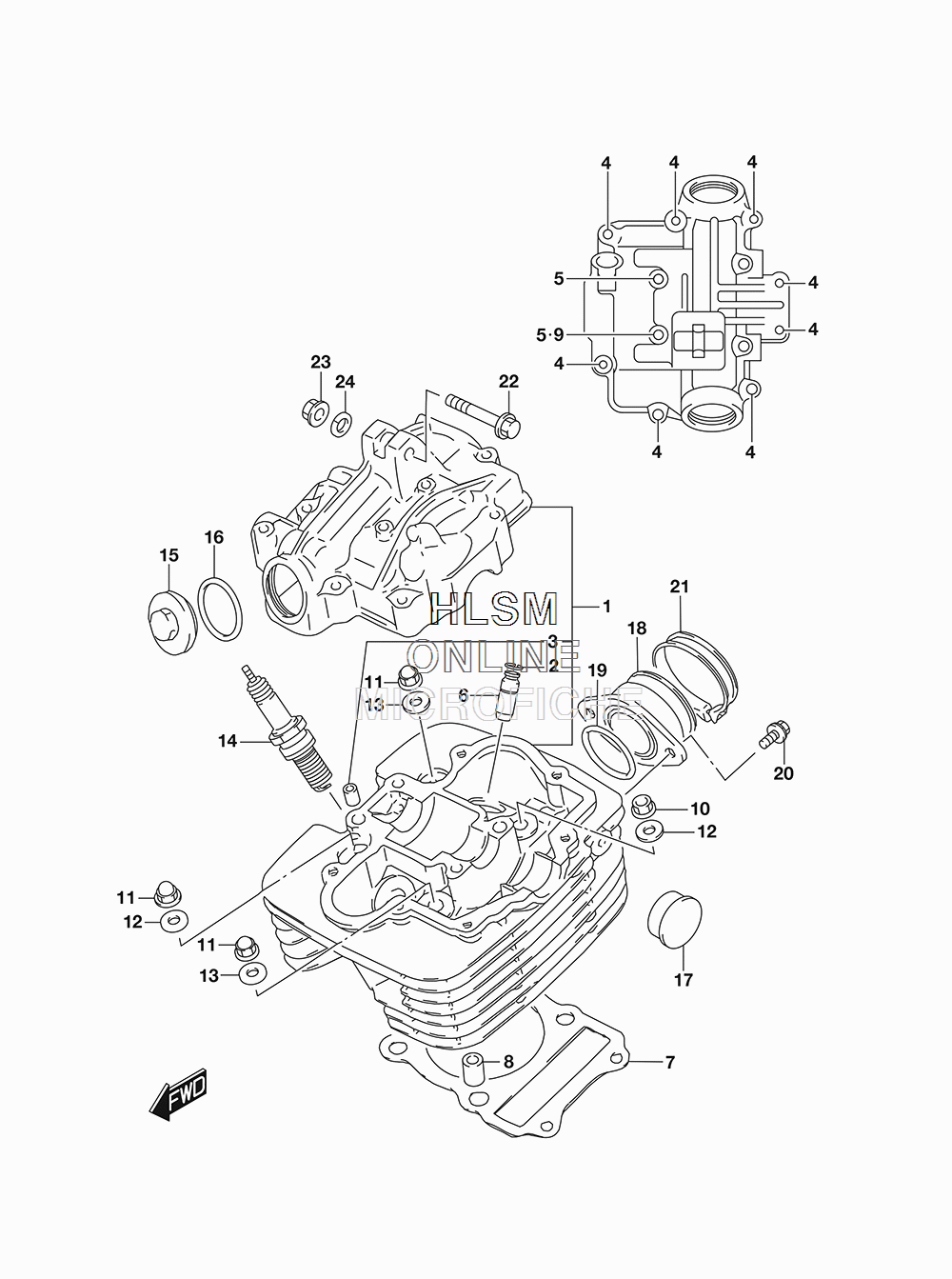

CYLINDER HEAD для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
111100-42A80 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 ...SNAP RING...SNAP RING
-
309206-08001 ...PIN (8X11)...PIN (8X11)
-
401550-0635A ...BOLT...BOLT
-
501550-0660A ...BOLT...BOLT
-
611115-05270 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
711141-18A00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-11169 PIN, KNOCKPIN, KNOCK
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1008316-1008A NUTNUT
-
1109159-08049 NUTNUT
-
1209160-08039 WASHER (8.5X19X2.3)WASHER (8.5X19X2.3)
-
1309168-08021 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
-
14-109482-00223 SPARK PLUG (DENSO, X24ESR-U)SPARK PLUG (DENSO, X24ESR-U)
-
14-209482-00399 SPARK PLUG (NGK, DR8EA)SPARK PLUG (NGK, DR8EA)
-
1511175-18900 CAP, INSPECTIONCAP, INSPECTION
-
1609280-30001 O RING (D:3, ID:29.5)O RING (D:3, ID:29.5)
-
1709241-22002 PLUG (OD:22.5)PLUG (OD:22.5)
-
1813110-42A12 PIPE, INTAKEPIPE, INTAKE
-
1909280-35001 O RING (D:1.9, ID:34.6)O RING (D:1.9, ID:34.6)
-
2002112-3616A SCREWSCREW
-
2109402-48208 CLAMPCLAMP
-
2209103-08519 BOLT (8X55)BOLT (8X55)
-
2308319-3108A NUTNUT
-
2408321-0108A WASHER, LOCKWASHER, LOCK
