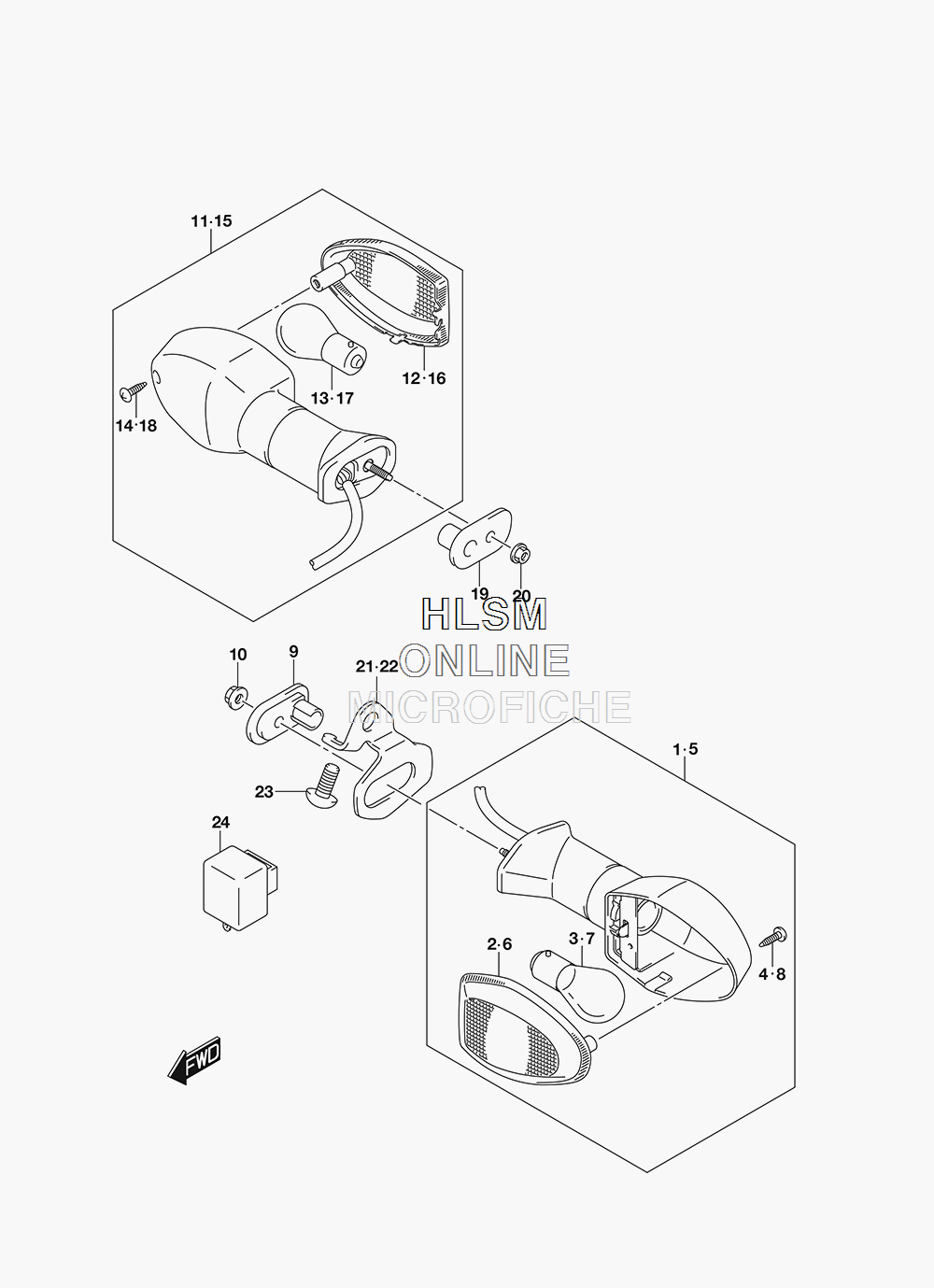

TURNSIGNAL ASSY. для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
135601-08J11 LAMP ASSY, FR TURN (RH)LAMP ASSY, FR TURN (RH)
-
235612-08J01 ...LENS...LENS
-
309471-12045 ...BULB (12V, 21W)...BULB (12V, 21W)
-
403211-0414B ...SCREW...SCREW
-
535602-08J11 LAMP ASSY, FR TURN (LH)LAMP ASSY, FR TURN (LH)
-
635632-08J01 ...LENS...LENS
-
709471-12045 ...BULB (12V, 21W)...BULB (12V, 21W)
-
803211-0414B ...SCREW...SCREW
-
935629-31F40 PLATE, FR TURNPLATE, FR TURN
-
1008316-1005A NUTNUT
-
1135603-08J01 LAMP ASSY, RR TURN (RH)LAMP ASSY, RR TURN (RH)
-
1235632-08J01 ...LENS...LENS
-
1309471-12045 ...BULB (12V, 21W)...BULB (12V, 21W)
-
1403211-0414B ...SCREW...SCREW
-
1535604-08J01 LAMP ASSY, RR TURN (LH)LAMP ASSY, RR TURN (LH)
-
1635612-08J01 ...LENS...LENS
-
1709471-12045 ...BULB (12V, 21W)...BULB (12V, 21W)
-
1803211-0414B ...SCREW...SCREW
-
1935629-31F40 PLATE, RR TURNSIGNALPLATE, RR TURNSIGNAL
-
2008316-1005A NUTNUT
-
2147411-49J00 BRACKET, FRONT TURN SIGNAL (RH)BRACKET, FRONT TURN SIGNAL (RH)
-
2247421-49J00 BRACKET, FRONT TURN SIGNAL (LH)BRACKET, FRONT TURN SIGNAL (LH)
-
2302142-0508A SCREWSCREW
-
2438610-31X50 RELAY ASSY, TURN SIGNAL LAMPRELAY ASSY, TURN SIGNAL LAMP
