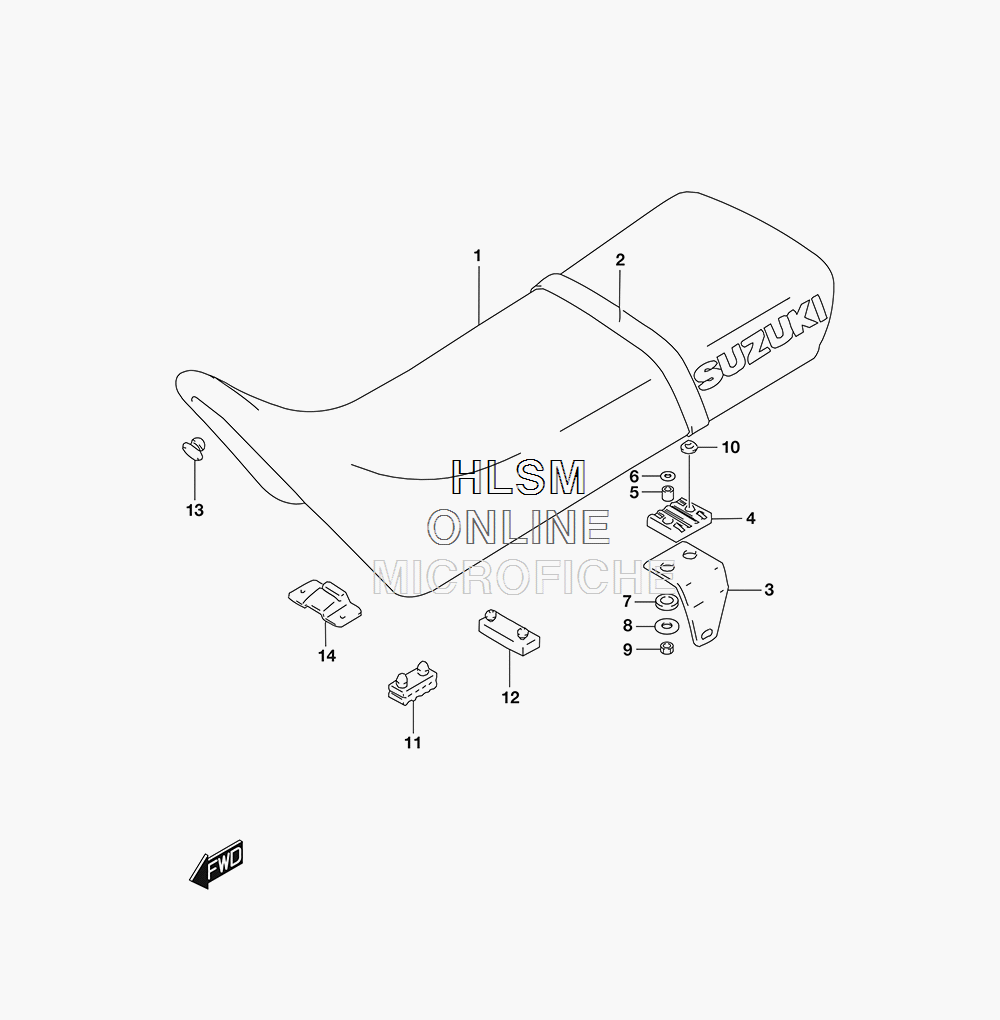

SEAT для Suzuki DR200SL8 - 2018 года выпуска
-
№АртикулНазвание
-
145100-49J00-AX8 SEAT ASSY (AX8 - BLACK/SILVER)SEAT ASSY (AX8 - BLACK/SILVER)
-
245180-49J00-T5P ...BAND, SEAT GRIP (T5P - BLACK)...BAND, SEAT GRIP (T5P - BLACK)
-
345117-49J00 ...BRACKET, SEAT...BRACKET, SEAT
-
445150-23450 ...CUSHION, FRONT PLATE...CUSHION, FRONT PLATE
-
545219-49J00 ...SPACER, SEAT BRACKET...SPACER, SEAT BRACKET
-
609160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
745147-23450 ...CUSHION, SEAT FR...CUSHION, SEAT FR
-
809160-06012 ...WASHER (6.5X22X1.6)...WASHER (6.5X22X1.6)
-
908316-2006A ...NUT...NUT
-
1009169-06053 ...WASHER...WASHER
-
1145149-31300 ...CUSHION...CUSHION
-
1245149-43500 ...CUSHION...CUSHION
-
1309329-10001 ...CUSHION...CUSHION
-
1445119-42A00 PLATE, SEAT FRONT HOOKPLATE, SEAT FRONT HOOK
